Proportional DCV - NA06/C3/24VDC/0...±10V - 4WRPEH 6 C3B24L-3X/M/24A1 OBE

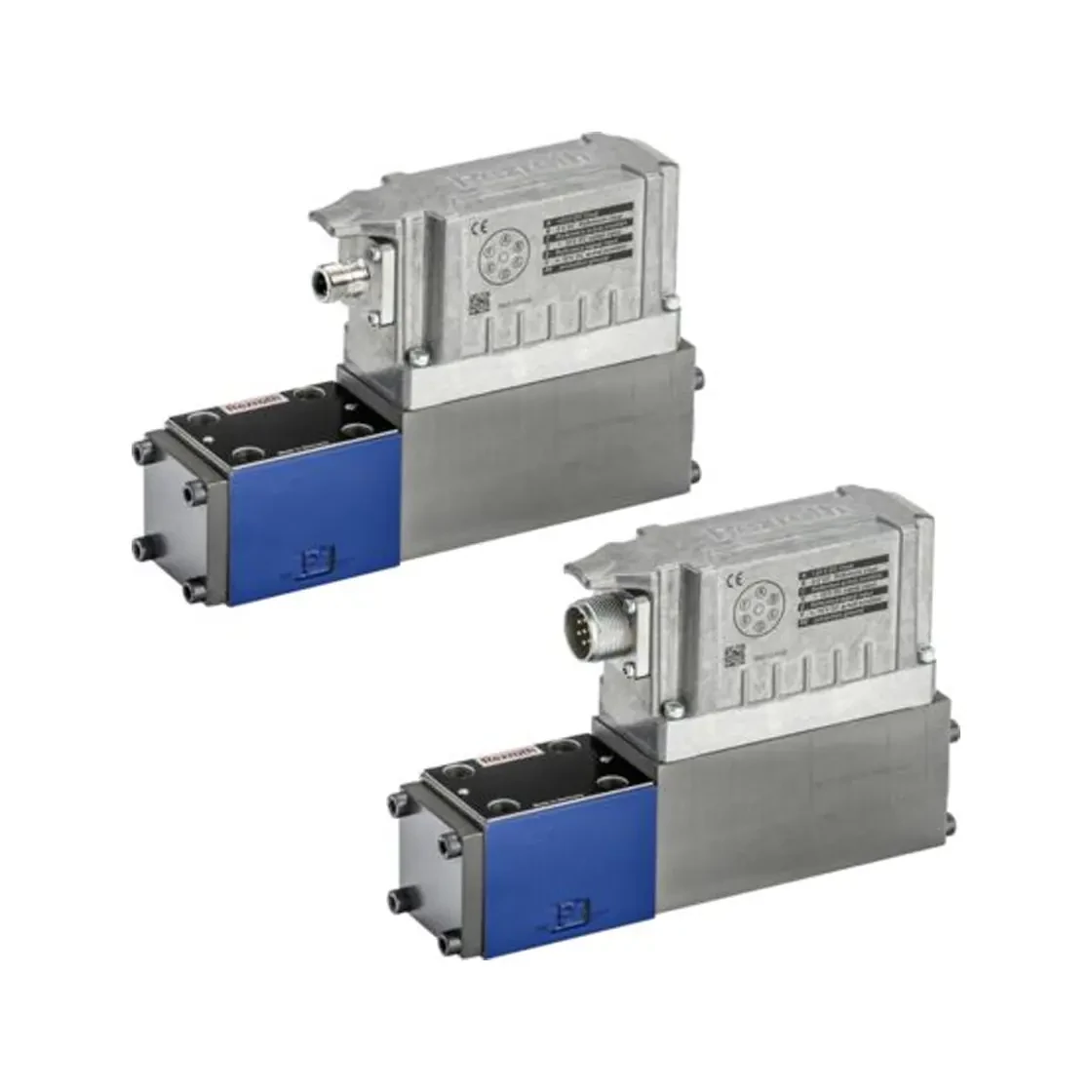

4WRPEH6 Proportional Directional Control Valve: High Precision & Reliability

This industrial hydraulic valve in Size 6 is designed for high-performance applications, offering reliable and precise control of oil flow direction according to its hydraulic symbol. Its high accuracy is a result of internal piston position feedback, making it an excellent choice for demanding systems.

Key Features

• Proportional Spool Valve: Enables precise and continuous control of oil flow.
• Direct Actuation: Ensures quick and accurate response.
• High Accuracy: Achieved through internal piston position feedback.
• Reliable Control: Consistent and dependable performance.
• Safety Shut-down: Includes an additional fail-safe position for enhanced system safety.
• On-board Electronics: Integrated electronics simplify installation and wiring.
• Robust Design: Suitable for challenging industrial environments.

Technical Specifications

• Product Family: 4WRPEH6
• Size: 6
• Spool Symbol: Symbol C3
• Type of Actuation: Electrical with on-board electronics
• Connection Diagram: ISO 4401-03-02-0-05
• Type of Connection: Subplate mounting
• Number of Ports: 4
• Number of Switching Positions: 4
• Supply Voltage: 24 VDC
• Electrical Connector: 7-pole (6 + PE) connector
• Electrical Connection Description: Connector 3-pole (2 + PE) according to EN 175301-803 (Note: There is a discrepancy in the provided data between "7-pole (6 + PE)" and "3-pole (2 + PE) according to EN 175301-803". I've included both as stated in the source.)
• Connectivity: Command value input ±10 V
• Conformity: CE – electro-magnetic compatibility 2014/30/EU; RoHS Directive 2011/65/EU
• Max. Operating Pressure: 350 bar
• Max. Flow: 50 L/min
• Nominal Flow: 24 L/min
• Hydraulic Fluid Compatibility: HL, HLP, HLPD, HVLP, HVLPD, HFC
• Seals Material: NBR
• Weight: 2.98 kg
