Description
Technical Data

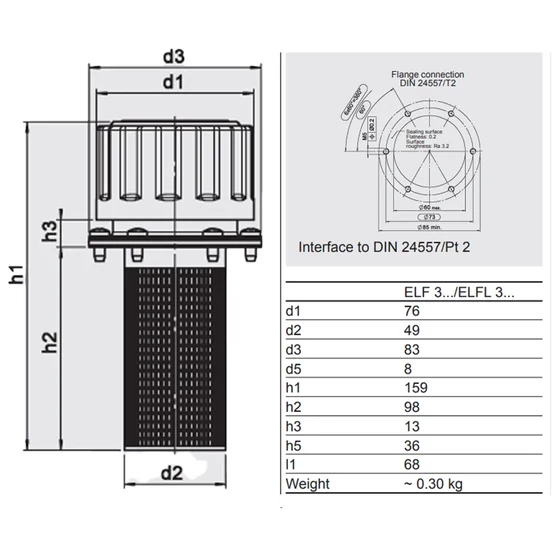

Filter Housing Design: The tank breather filters size 3 consist of an air filter top, which is connected to the mounting flange using a bayonet plate or threaded flange, and a filler filter.
Filter Elements
Dirt holding capacity in grams
ELF 3: 6.2 µm
The filter elements are made of phenolic resin-impregnated paper and are therefore not cleanable.
Filter Specifications
Temperature Range: -30 °C to +100 °C
Housing Material: Steel, zinc-coated/plastic-coated
Filler Filter Material: Synthetic
Clogging Indicator Type: VMF (return line indicator)
Clogging Indicator Pressure Setting: 0.6 bar K pressure gauge, 0.035 bar UBM indicator
