Description
Sealing plug and polyamide air filters
Flow rate up to 1600 l/min

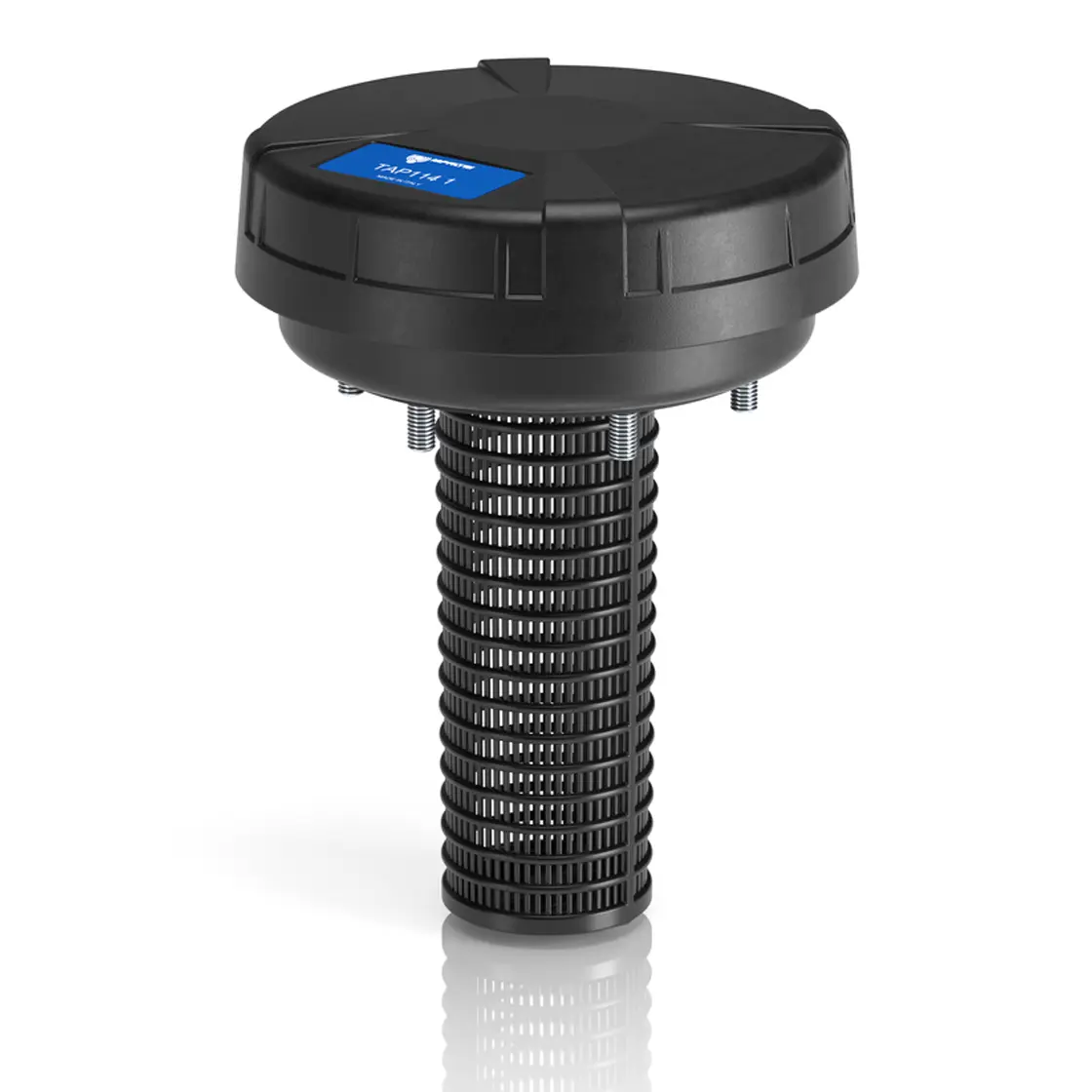

The TAP114 is a series of plastic large air inlets and filling caps to protect solid contaminants in the tank from air and to fill the liquid into the system during commissioning and maintenance. They are mounted directly on the tank.
Features:
- Flanged connection that can handle a maximum flow rate of up to 1600 l/min.
- Replaceable filter element.
- Fine cellulose filtration to maintain tank cleanliness.
- Polyester media option for extreme environmental conditions (high humidity, sand...).
- Filling basket that retains coarse dirt in the liquid and helps the liquid to be distributed in the container.
Common Use:
- Hydraulic systems
- Moving machines
- Industrial equipment
Flow rate Δp 0.02 bar
| Filtration class | L10 |
|---|---|
| TAP114-1 | 1450 |
| TAP114-3 | 1600 |
Materials:
- Cover: Polyamide
- Filter element: Resin-soaked paper
- Connecting flange: Polyamide
- Seals: NBR
- Screws: Galvanized steel
- Basket: Polyamide
Temperature range: -25 °C to +100 °C.
