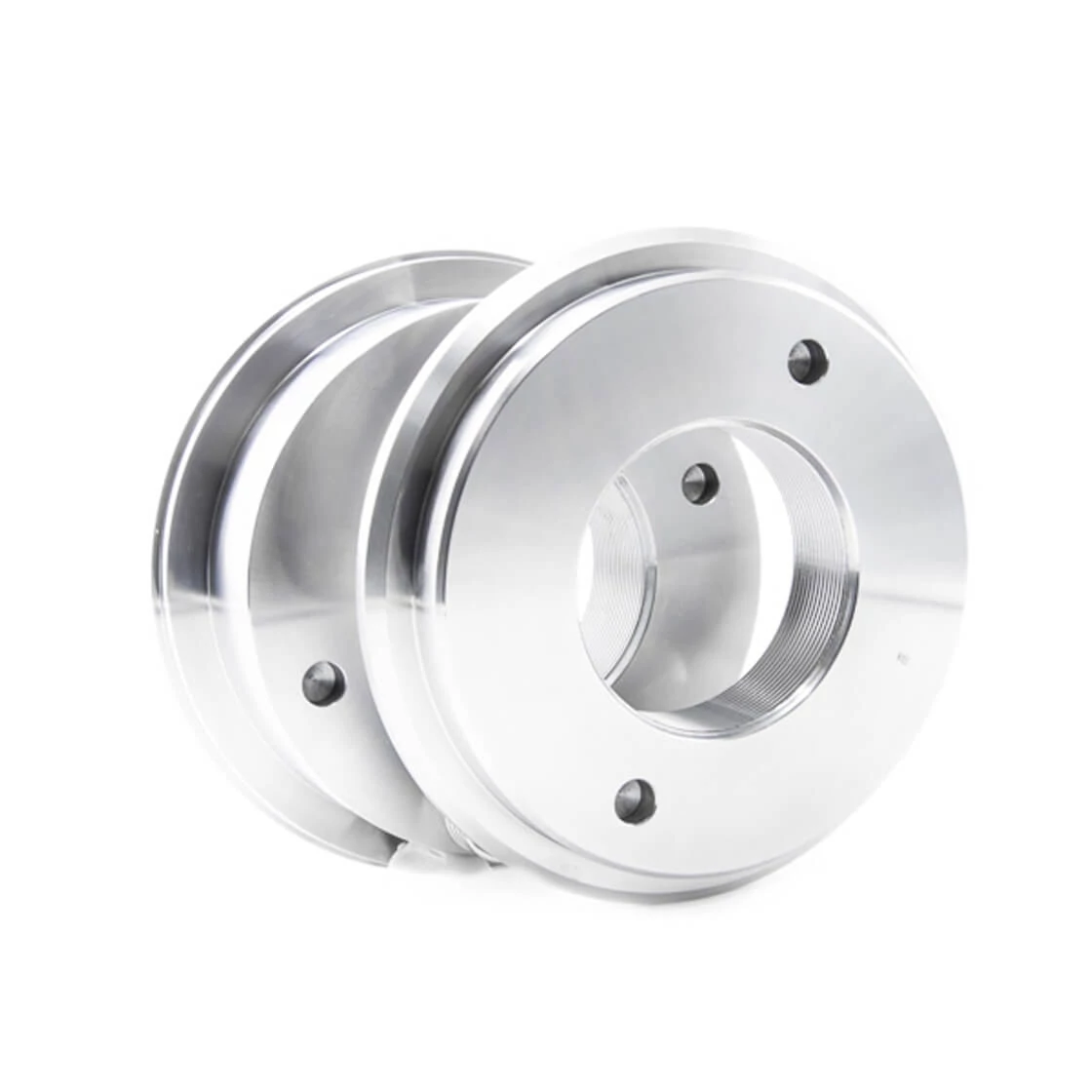

Two parts threaded piston - NBP000180080

Two parts threaded piston - NBP000180080

Piston diameter 180 mm
Piston type Threaded - Two-Piece
Maximum pressure 300 bar
Bore diameter 82.1 mm
Piston width 82 mm
Manufacturer article number: NBP000180080
Model: ND180080P0
Availability: Available to order
Manufacturer: --
Description and Size Chart

Description

Description of the Two-Piece Threaded Piston
  • The two-piece threaded piston is a component made of steel, with a maximum pressure resistance of 300 bar.
  • Due to the large diameter of the piston, and to ensure easy installation of the seal, it is composed of two screw-assembled parts.
Size Chart of the Two-Piece Threaded Piston

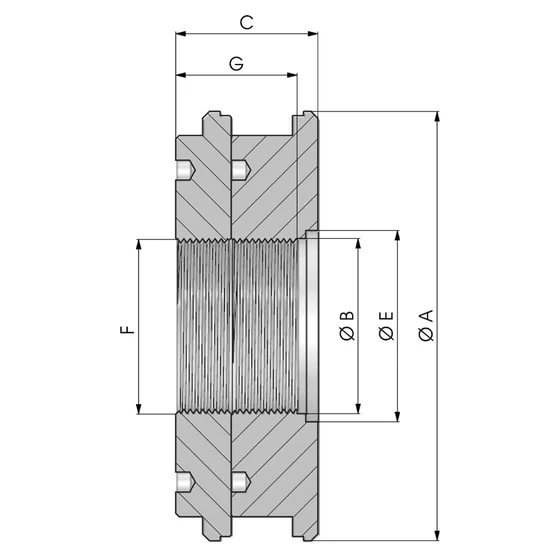

Size diagram of the two-piece threaded piston

Click on the item number to view the price and stock availability of the selected product.

Item number A B C E F G kg
ND180070P0 180 72.1 82 77.6 M70X2 70 10,50
ND180080P0 180 82.1 82 91.4 M80X2 70 9,71
ND200070P0 200 72.1 82 77.6 M70X2 70 13,78
ND200080P0 200 82.1 82 91.4 M80X2 70 12,96
ND220098P0 220 101.1 82 110.4 M98X2 70 15,12
ND250098P0 250 101.1 82 110.4 M98X2 70 21,64
