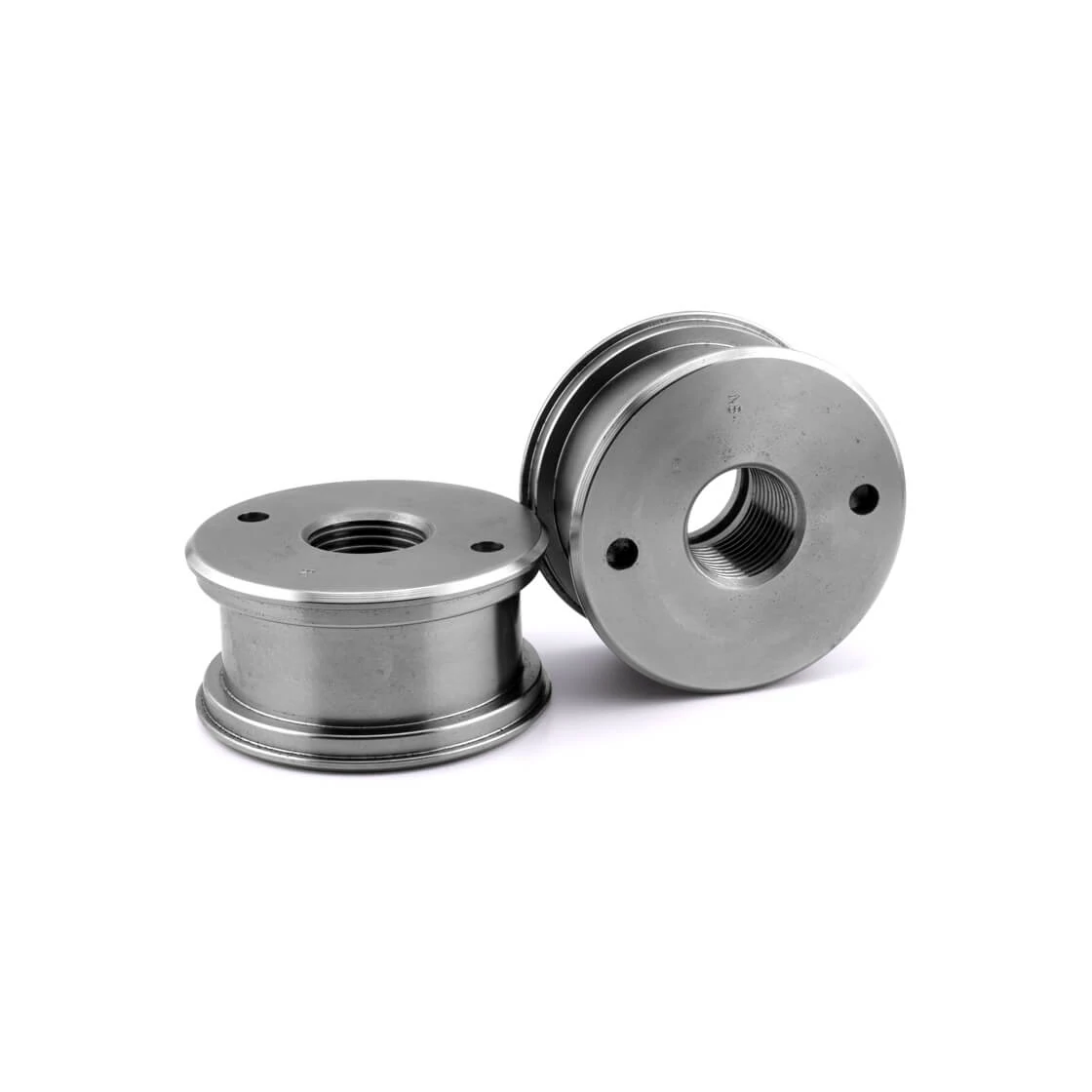

Short threaded piston - NBPBF0070M24

Short threaded piston - NBPBF0070M24

Piston diameter 70 mm
Piston type Threaded - Short
Maximum pressure 200 bar
Bore diameter 25 mm
Piston width 35 mm
Manufacturer article number: NBPBF0070M24
Model: ND070024BF
Availability: 2 pcs in stock
Manufacturer: --
Description and Size Chart

Description

Description of the short type piston
  • Short-stroke hydraulic pistons are characterized by a short stroke, requiring low installation height. The short stroke allows them to be used in space-constrained applications.
  • Short-stroke cylinders have a load capacity between 10 and 100 tons, making them suitable for general lifting tasks requiring short stroke lengths.
  • The threaded design enables easy connection and interchangeability of the piston with the cylinder, as well as with seals and other components.
  • The piston is made of steel and can withstand a maximum pressure of 200 bar.
Size chart of the short type piston
Size drawing of the threaded - short type piston

Click on the article number to view the price and stock availability of the selected product.

Article number A B C F G kg
ND040016BF 40 17 27 M16X1.5 19 0,16
ND050020BF 50 21 30 M20X1.5 21 0,28
ND060024BF 60 25 35 M24X2 24 0,45
ND063024BF 63 25 35 M24X2 24 0,51
ND065024BF 65 25 35 M24X2 24 0,56
ND070024BF 70 25 35 M24X2 24 0,69
ND075027BF 75 28 40 M72X2 26 0,92
ND080027BF 80 28 40 M27X2 26 1,05
ND090033BF 90 35 40 M33X2 26 1,32
ND100033BF 100 35 40 M33X2 26 1,74
