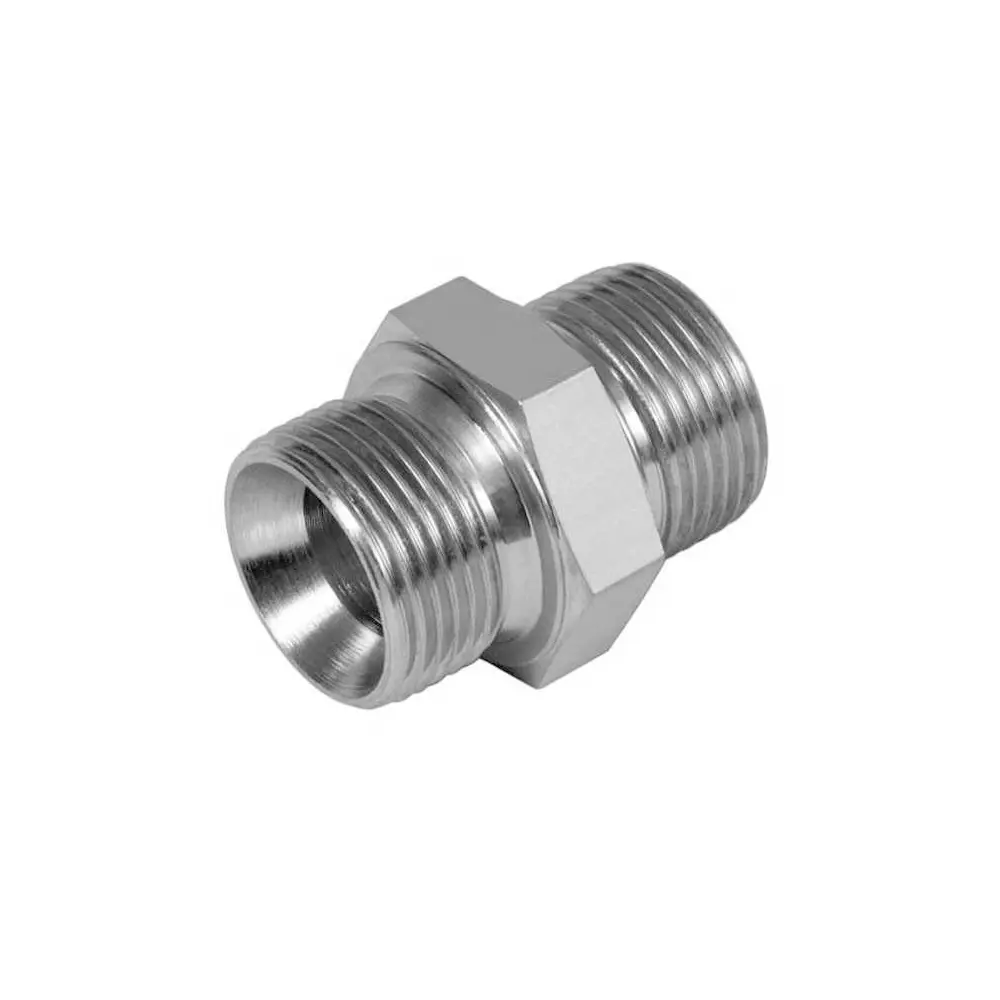

Tube Coupling (G-BSP) - (K-K) - G3/8
1.2529 € + VAT
Qty:pcs
Add to Cart

Tube Coupling (G-BSP) - (K-K) - G3/8"

1.2529 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPP external thread
Connection 2 BSPP external thread
Connection F1 (inch) 3/8’’
Connection F2 (mm) 3/8’’
Connector sub-type BSP külső/külső menet (G-BSP) (K-K)
Connector type Straight fitting - G
Surface Galvanic coating

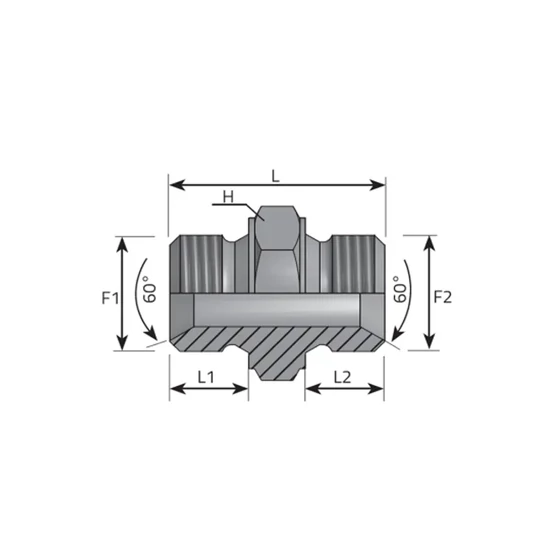

H (mm) 22
L1 (mm) 12.5
L2 (mm) 12.5
L (mm) 34
Structural form Straight fitting
Sealing 1 60° internal cone, flat gasket
Sealing 2 60° internal cone, flat gasket
Operating pressure (bar) 350
Operating pressure (PSI) 5075
Manufacturer article number: ANGG0606
Model: HQCCK06000
Availability: 31 pcs in stock
Manufacturer: Nem besorolt
