Tube Coupling - (GE-R) - JIC 7/16
1.7540 € + VAT
Qty:pcs
Add to Cart

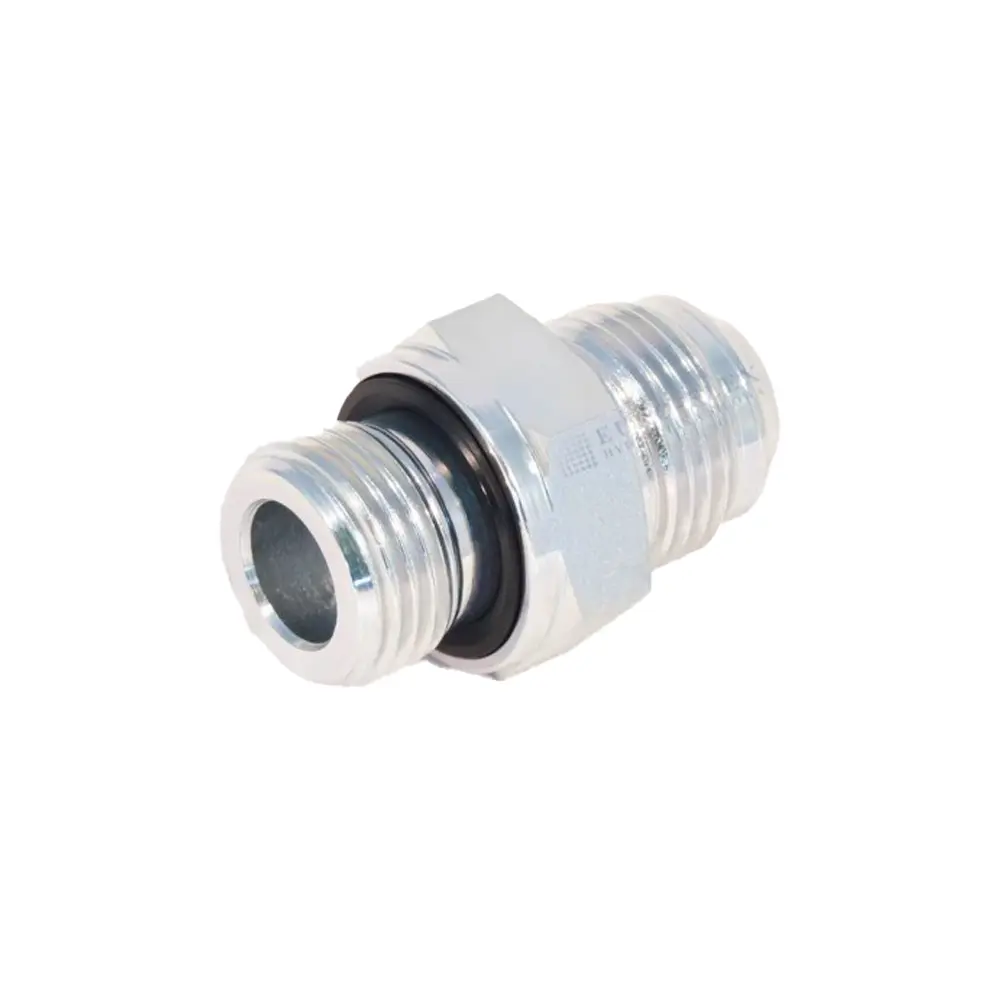

Tube Coupling - (GE-R) - JIC 7/16"-20 - G1/8"

1.7540 € + VAT
Qty:pcs
Add to Cart

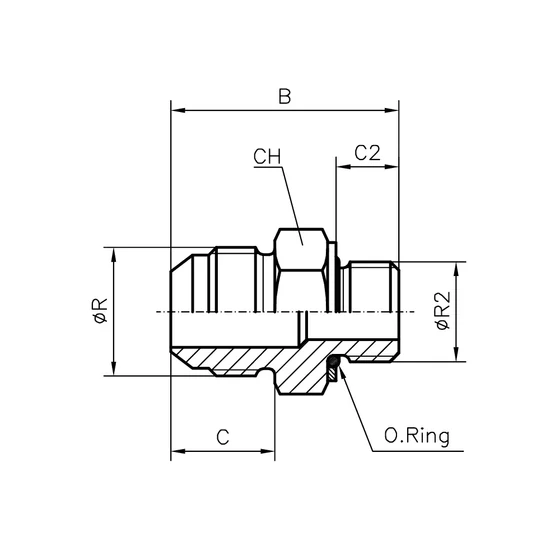

Material Steel
B (mm) 28.7
C2 (mm) 6.3
C (mm) 14
CH (mm) 161
Connection 1 UNF external thread
Connection 2 BSPP external thread
Screw sub-type UNF/BSP thread - JIC design (GE-JIC/R)
Screw type Straight screw-in fitting - GE
Pipe size (mm) 6
Surface Galvanic coating
Structural form Straight screw-in fitting
Sealing 1 37° external cone
Sealing 2 O-ring
Operating pressure (bar) 350
Manufacturer article number: BA.19.04.02
Model: HQCJGE04R020
Availability: 11 pcs in stock
Manufacturer: Nem besorolt
