Tube Coupling - (GE-R) - JIC 9/16
3.0682 € + VAT
Qty:pcs
Add to Cart

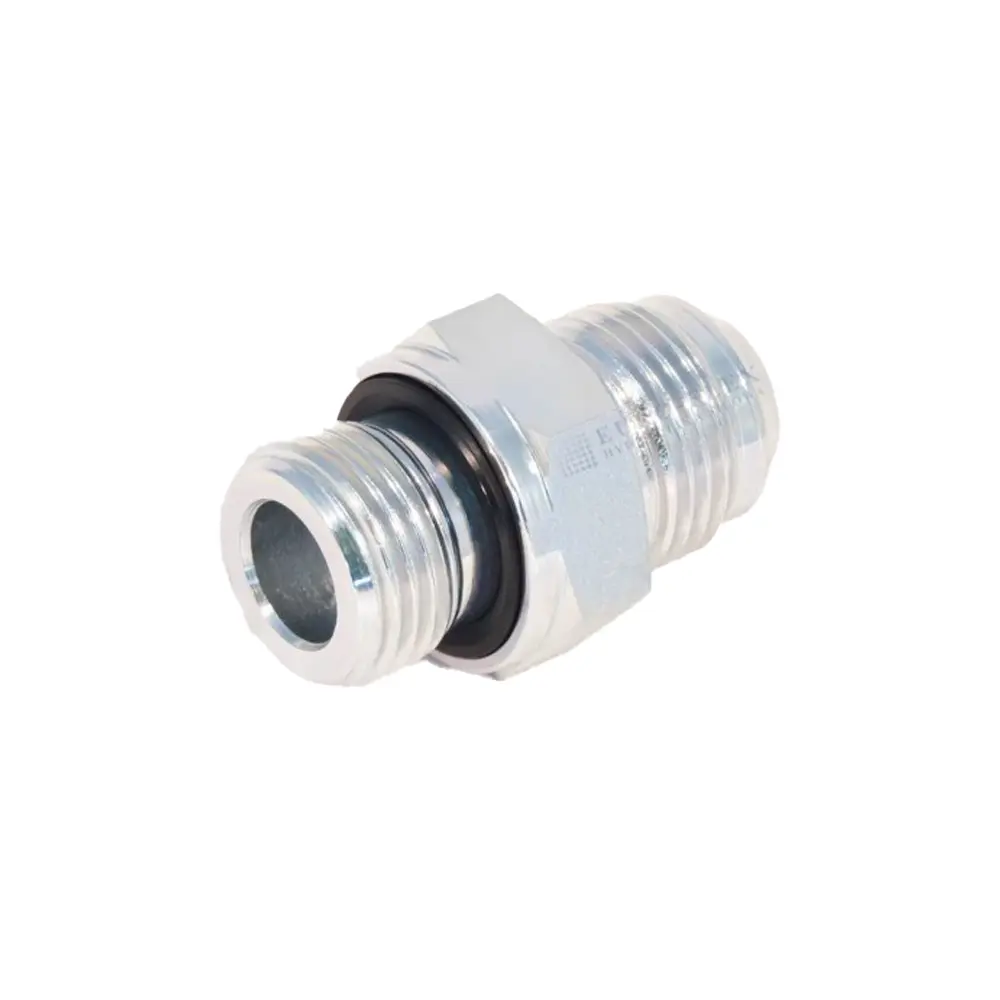

Tube Coupling - (GE-R) - JIC 9/16"-18 - G1/4"

3.0682 € + VAT
Qty:pcs
Add to Cart

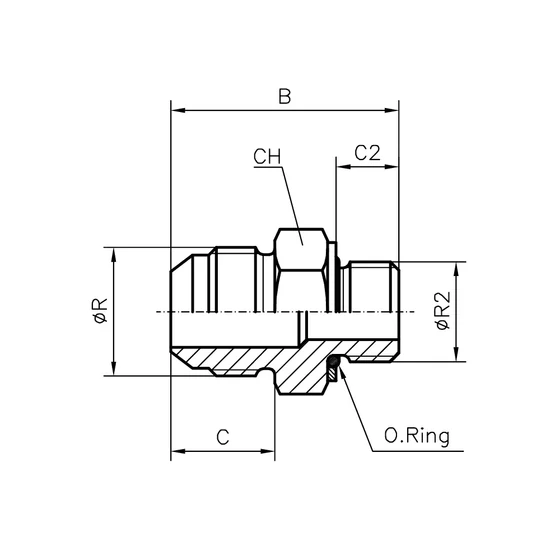

Material Steel
B (mm) 32
C2 (mm) 9.5
C (mm) 14.1
CH (mm) 19
Connection 1 UNF external thread
Connection 2 BSPP external thread
Connection ØR (col) 9/16
Connection ØR2 (inch) 1/4
Connector sub-type UNF/BSP menet - JIC kivitel (GE-JIC/R)
Connector type Egyenes becsavarható - GE
Pipe size (mm) 10
Pipe size (inch) 3/8
Surface Galvanic coating
Structural form Straight screw-in fitting
Sealing 1 37° external cone
Sealing 2 O-ring
Operating pressure (bar) 350
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: BA.19.06.04
Model: HQCJGE06R040
Availability: 9 pcs in stock
Manufacturer: Nem besorolt
