Valve - 2623077

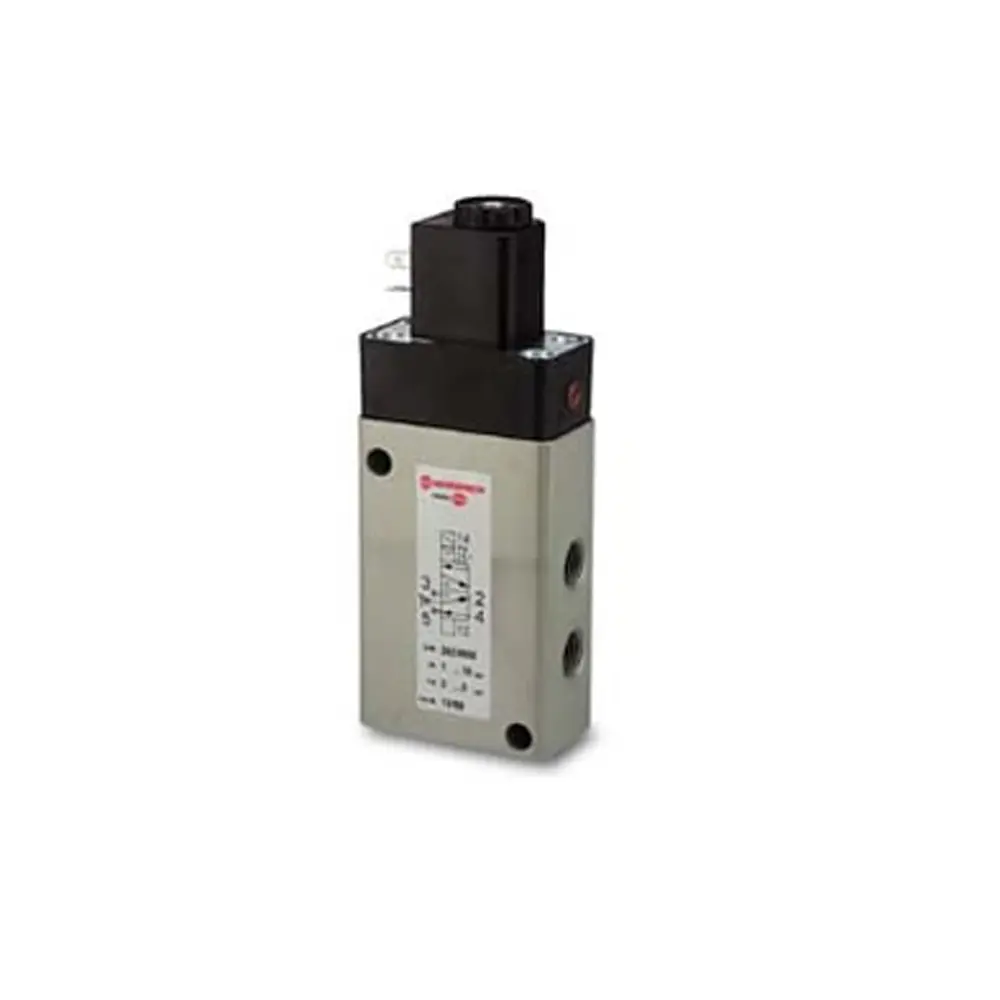

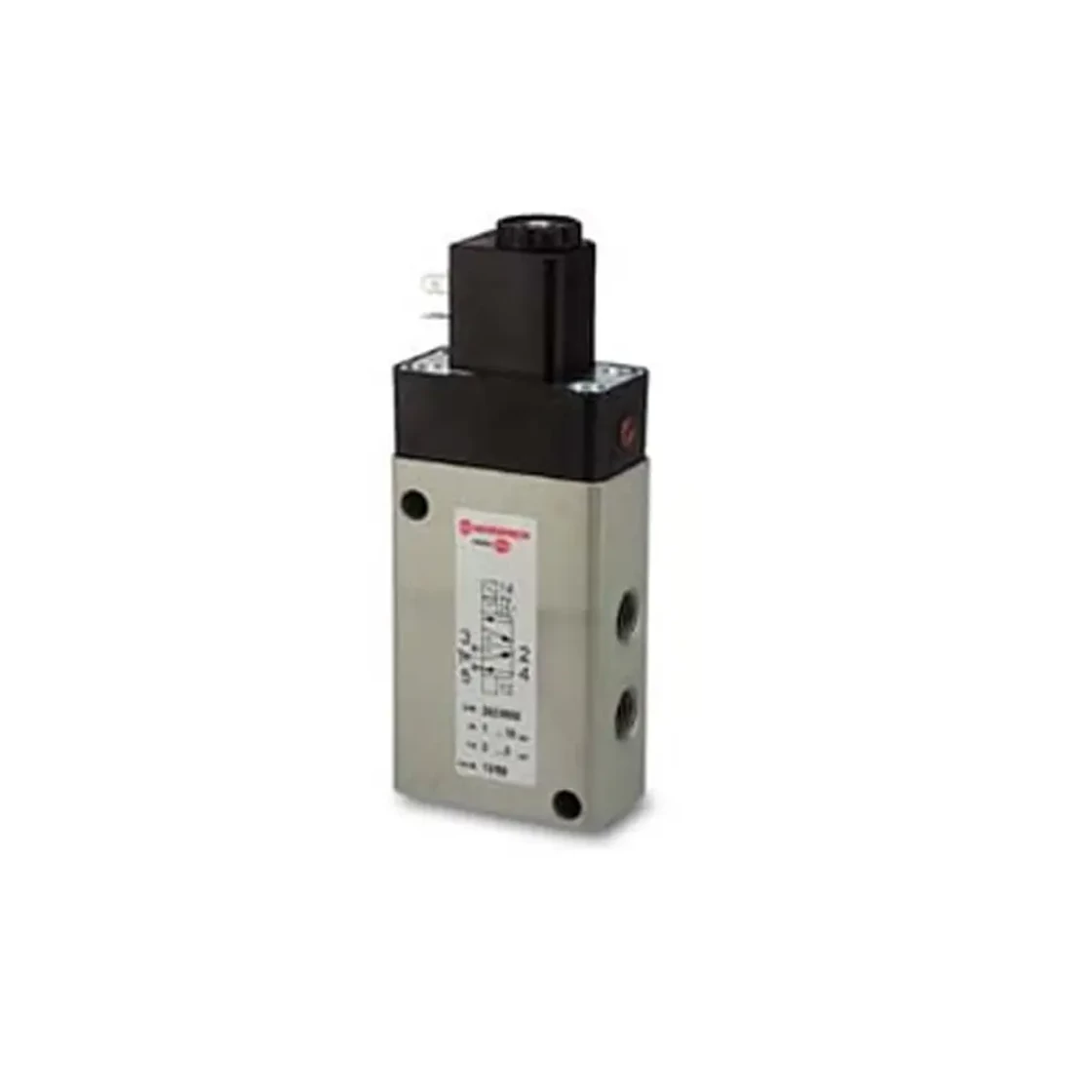

IMI Herion 2623 Series NAMUR Interface Solenoid Valve, G1/4, 5/2, Solenoid Pilot / Air Spring Return

This IMI Herion 2623 series NAMUR interface solenoid valve is a high flow rate and highly reliable 5/2-way valve designed for use with compressed air. Its simple T-spool design with soft sealing ensures long life and low maintenance.

Features

• High flow rate (up to 1325 l/min)
• Simple T-spool design with soft sealing
• Highly reliable, long life, low maintenance
• Easily interchangeable solenoid system, including Ex approved coils

Technical Details

• Medium: Compressed air
• Port Size: G1/4
• Valve operation: 5/2
• Actuation: Solenoid pilot / Air spring return
• Operating Temperature: -10 ... 50 °C (14 ... 122 °F)
• Operating Pressure: 2 ... 8 bar (29 ... 116 psi)
• Flow: 1325 l/min, 47 scfm
• Materials - Body: Aluminium
• Materials - Elastomers: NBR
• Materials - Seals: NBR
• Dimensions:
  • Height: 30 mm
  • Length: 143.5 mm
  • Width: 55 mm
• Weight: 0.55 kg
• Country of Origin: Germany
• Range: 26230
• Series: 2623 NAMUR Valves
• Brand: IMI Herion
