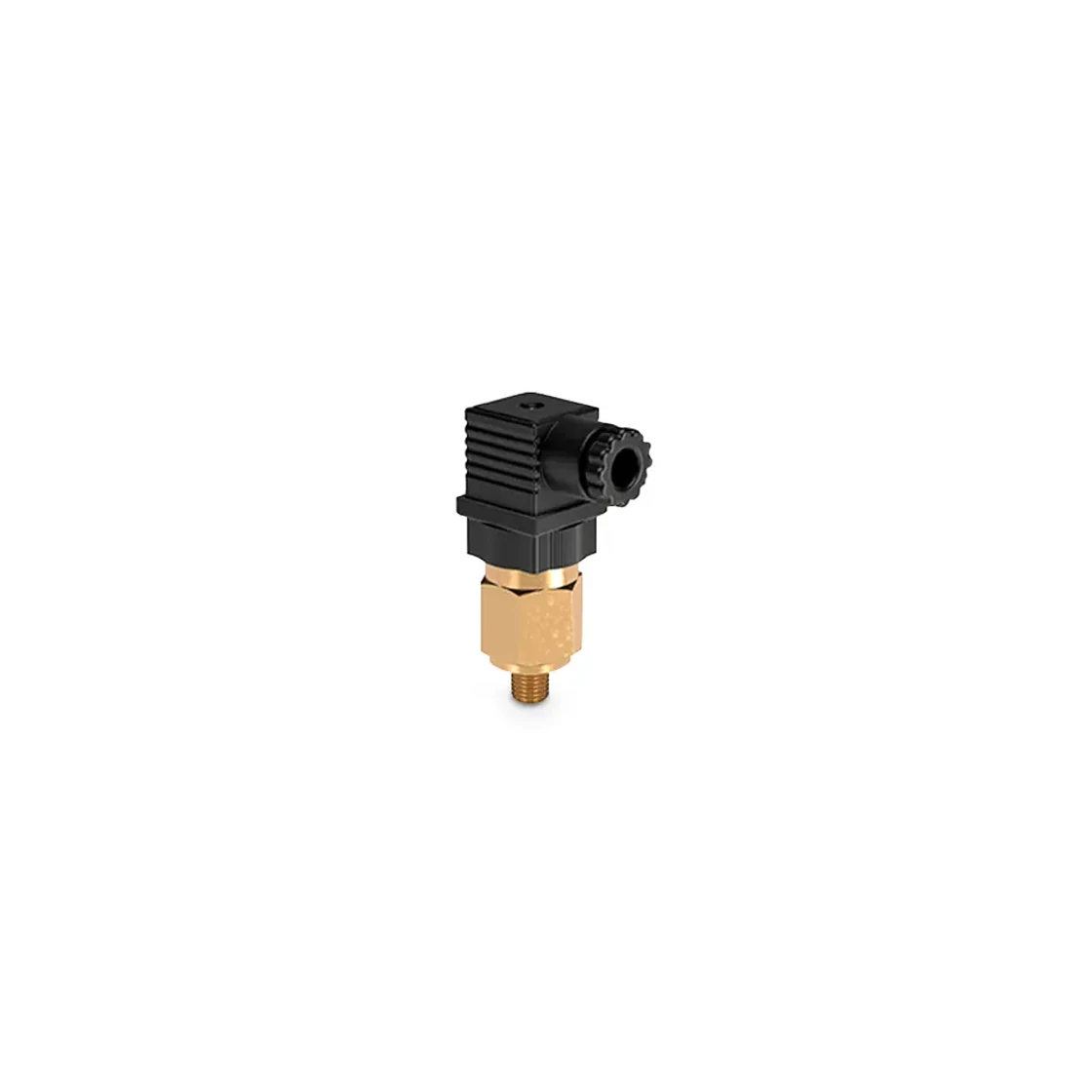

Vacuum indicator - VEA21AA50P01

Vacuum indicator - VEA21AA50P01

Subtype Electric
Type Clogging indicator
Manufacturer article number: VEA21AA50P01
Model: HFSEER04MPA
Availability: 1 pcs in stock
Manufacturer: MP Filtri

The vacuum indicators are used in the suction line to monitor the efficiency of the filter element. These devices measure the pressure after the filter element. The default products are manufactured with R 1/4” EN 10226 connection. Products with R 1/8” EN 10226 connection are also available, which can be mounted on the MPS series.

Description

Materials

  • Housing: Brass
  • Base: Black nylon
  • Contacts: Silver
  • Seal: NBR

Technical Specifications

  • Vacuum setting: -0.21 bar ±10%
  • Maximum operating pressure: 10 bar
  • Test pressure: 15 bar
  • Operating temperature: -25 °C to +80 °C
  • Fluid compatibility: Mineral oils, synthetic fluids HFA, HFB, HFC according to ISO 2943
  • Protection rating: IP65 according to EN 60529

Electrical Specifications

  • Electrical connection: EN 175301-803
  • Resistive load:
    • 5 A / 14 Vdc
    • 4 A / 30 Vdc
    • 5 A / 125 Vac
    • 4 A / 250 Vac
