Description
Materials
- Housing: Painted steel
- Window: Transparent plastic
- Dial: Painted steel
- Pointer: Painted aluminum
- Pressure connection: Brass
- Pressure element: Bourdon tube, copper alloy, soft-soldered
Technical Specifications
- Maximum operating pressure:
- Static: 7 bar
- Fluctuating: 6 bar
- Short-term: 10 bar
- Operating temperature: -40 °C to +60 °C
- Fluid compatibility: Mineral oils, synthetic fluids, HFA, HFB, HFC according to ISO 2943
- Accuracy: Class 2.5 according to EN 13190
- Protection rating: IP31 according to EN 60529
Series

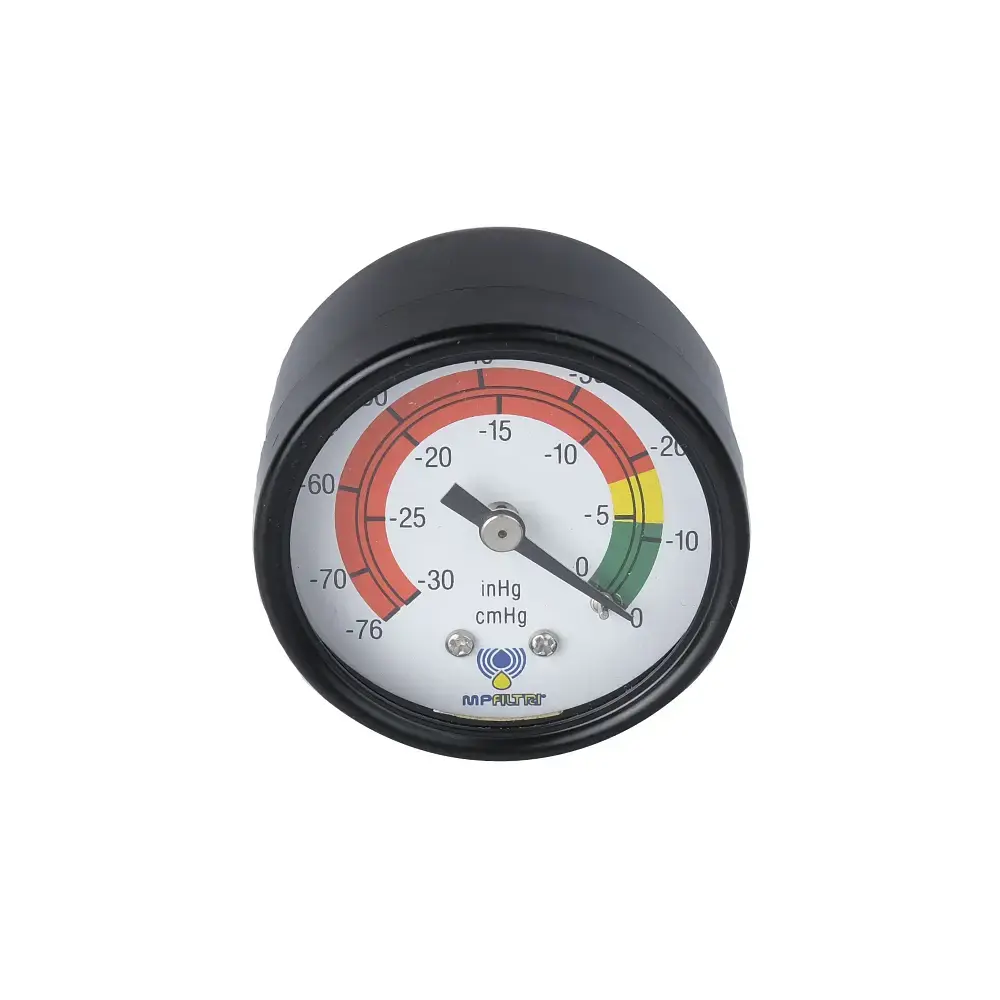

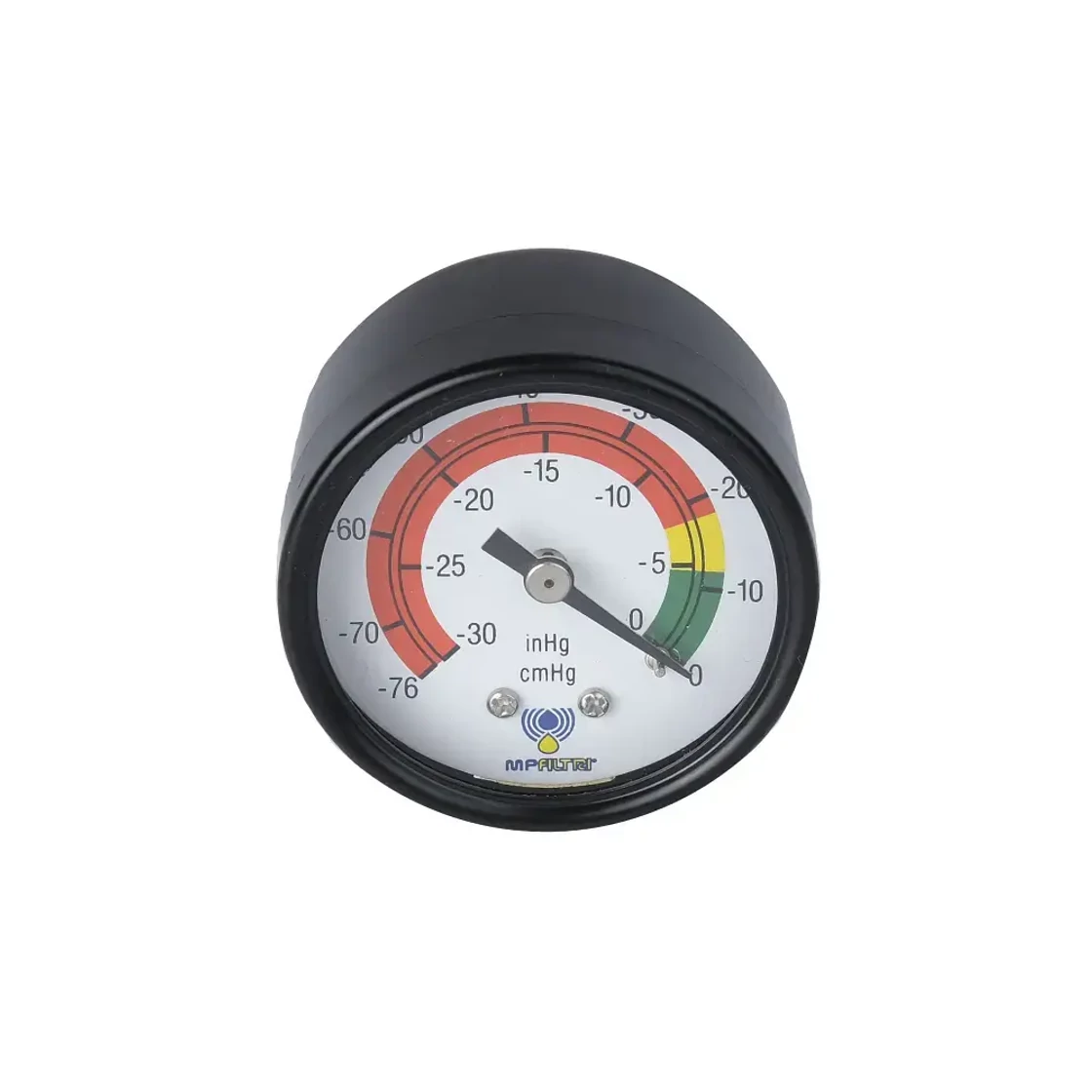

- Series: VV – Vacuum gauge
- Type: S – Radial connection EN 10226 – R1/8"
- Vacuum setting: 16 – -0.16 bar
- Seals: A – NBR
- Thermostat: A – None
