Description
Setting: 1.4 bar ±10%

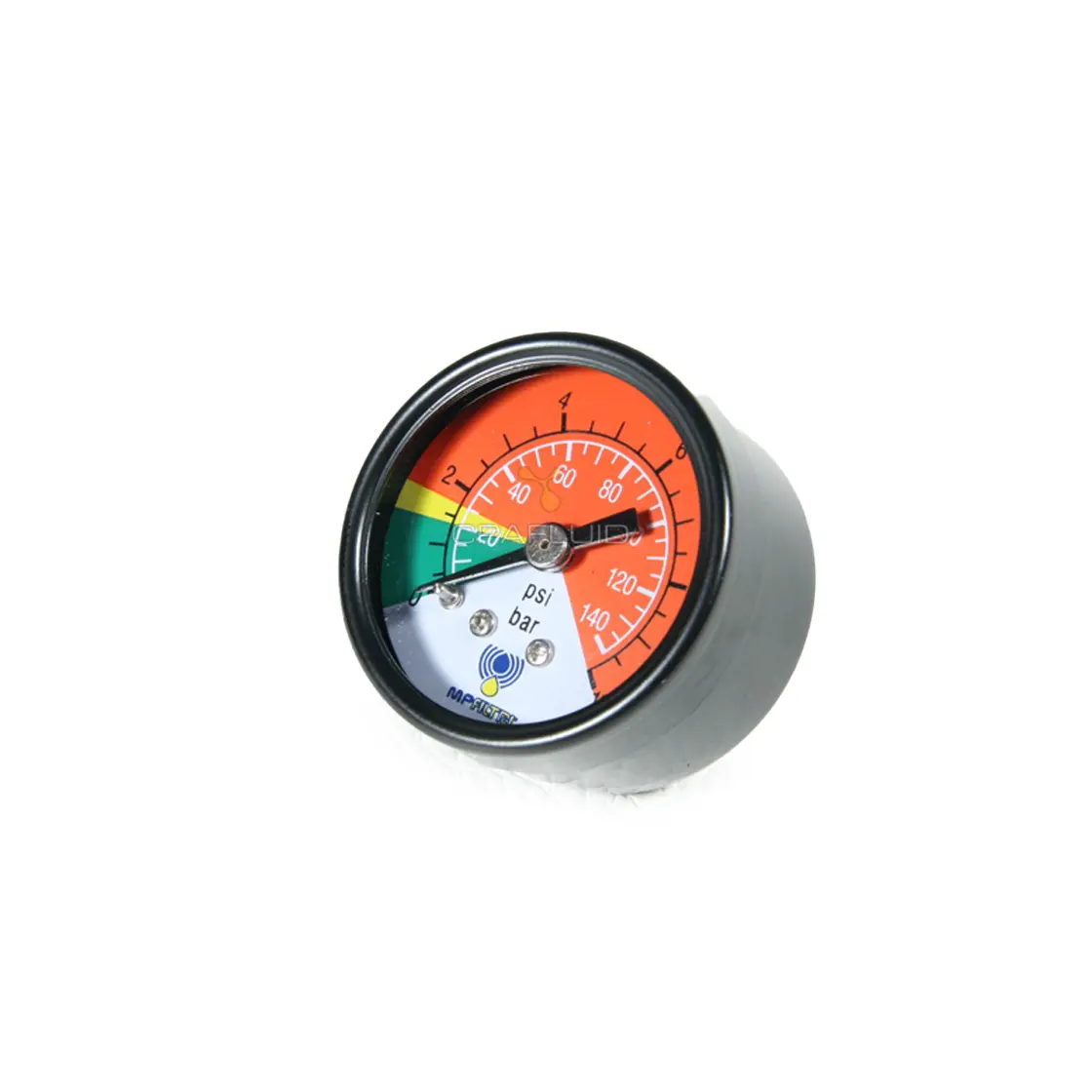

Axial Pressure Gauge
materials
- Housing: Painted Steel
- Window: Transparent plastic
- Scale: Painted Steel
- Pointer: Painted aluminum
- Pressure connection: Brass
- Pressure element: Copper alloy Bourdon tube, fixed by soft soldering
Specifications
- Maximum working pressure:
- Static: 7 bar
- Fluctuating: 6 bar
- Short Time: 10 Bar
- Operating temperature: -40 °C to +60 °C
- Compatibility with liquids: Mineral oils, synthetic fluids, HFA, HFB, HFC according to ISO 2943
- Accuracy: Class 2.5 according to EN 13190
- Protection class: IP31 according to EN 60529
