Description

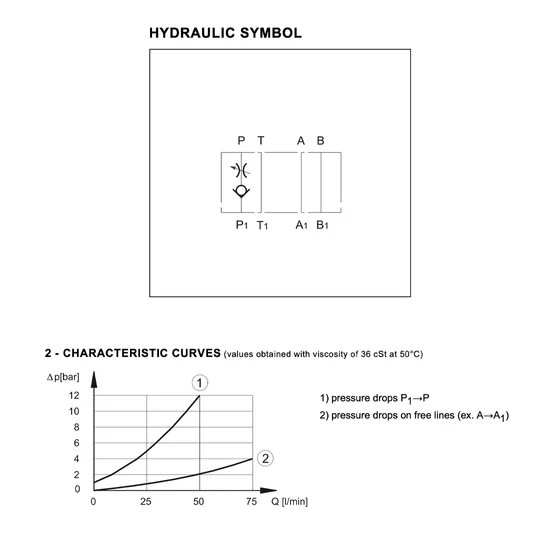

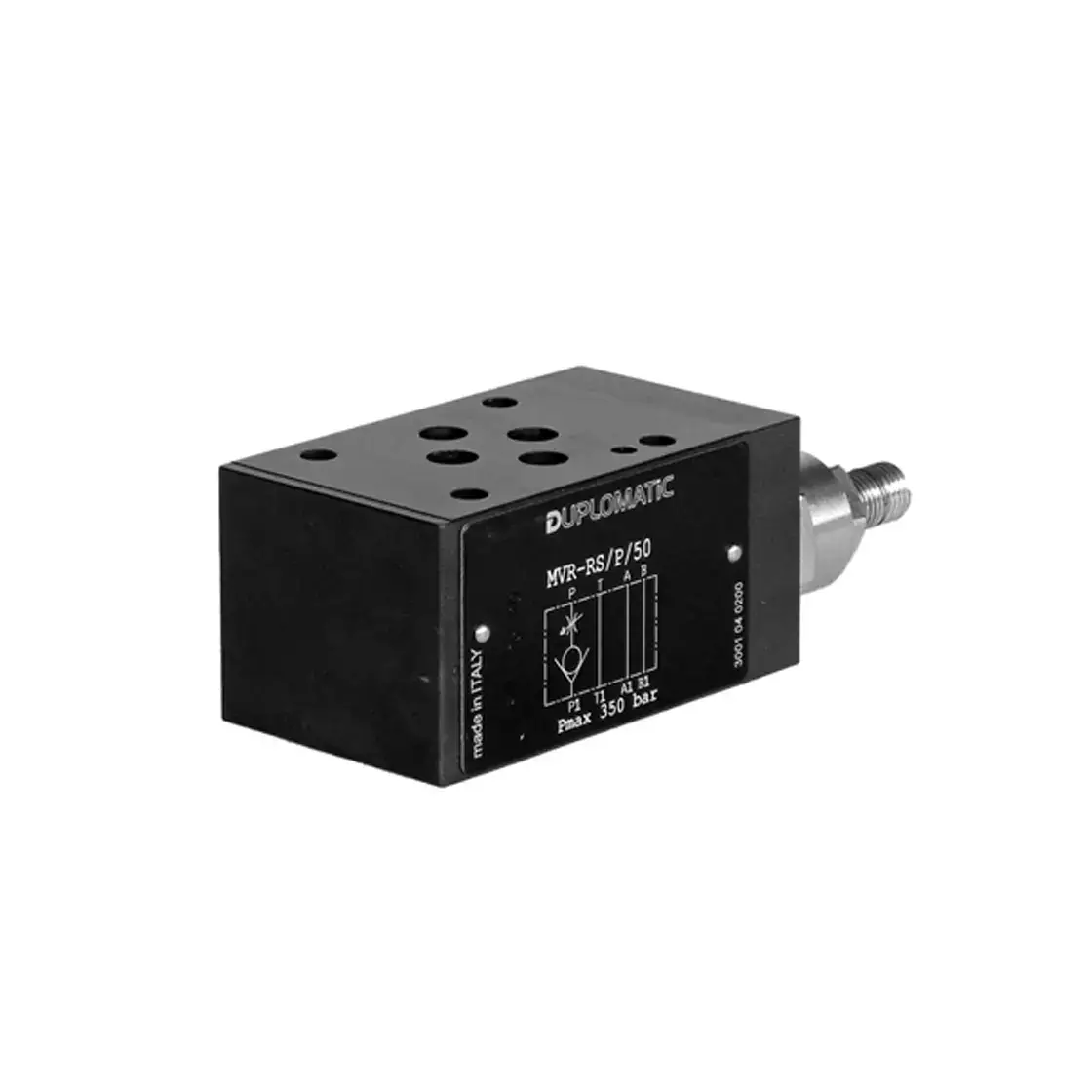

— The MVR-RS/P valve is a check valve that also includes a flow restriction function.

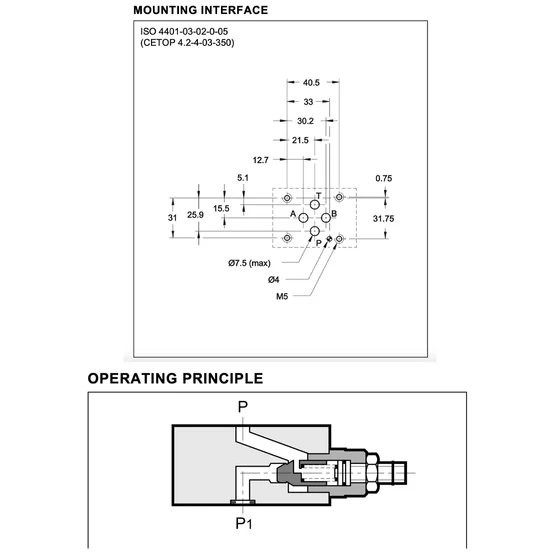

— Designed as a modular version, the mounting surface complies with ISO 4401-03 standards.
— It can be quickly assembled with ISO 4401-03 directional solenoid valves and modular valves without the use of pipes, using appropriate tie rods or screws.
— It is used when flow regulation is required in one direction, and backflow or line self-draining must be avoided in the opposite direction.

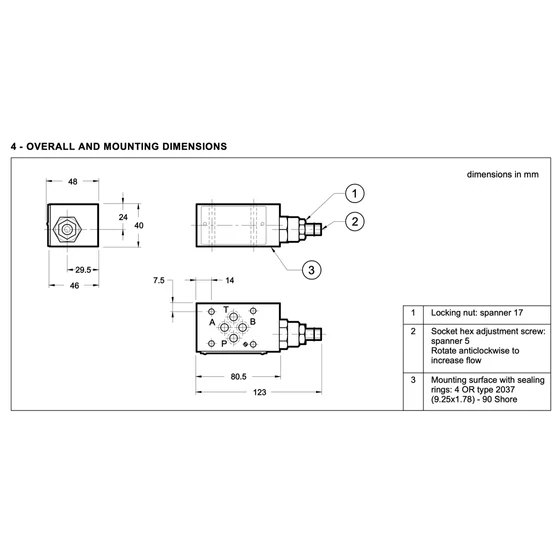

— Flow control is achieved using an internal Allen screw and a lock nut.
Maximum operating pressure / Check valve opening pressure: 350 / 1 bar
Maximum flow rate in regulated lines / Maximum flow rate in free lines: 50 / 75 l/min
Ambient temperature range: -20 / +60 °C
Fluid temperature range: -20 / +80 °C
Fluid viscosity range: 10 ÷ 400 cSt
Fluid contamination level: According to ISO 4406:1999, class 20/18/15
Recommended viscosity: 25 cSt
Weight: 1.1 kg
