Description

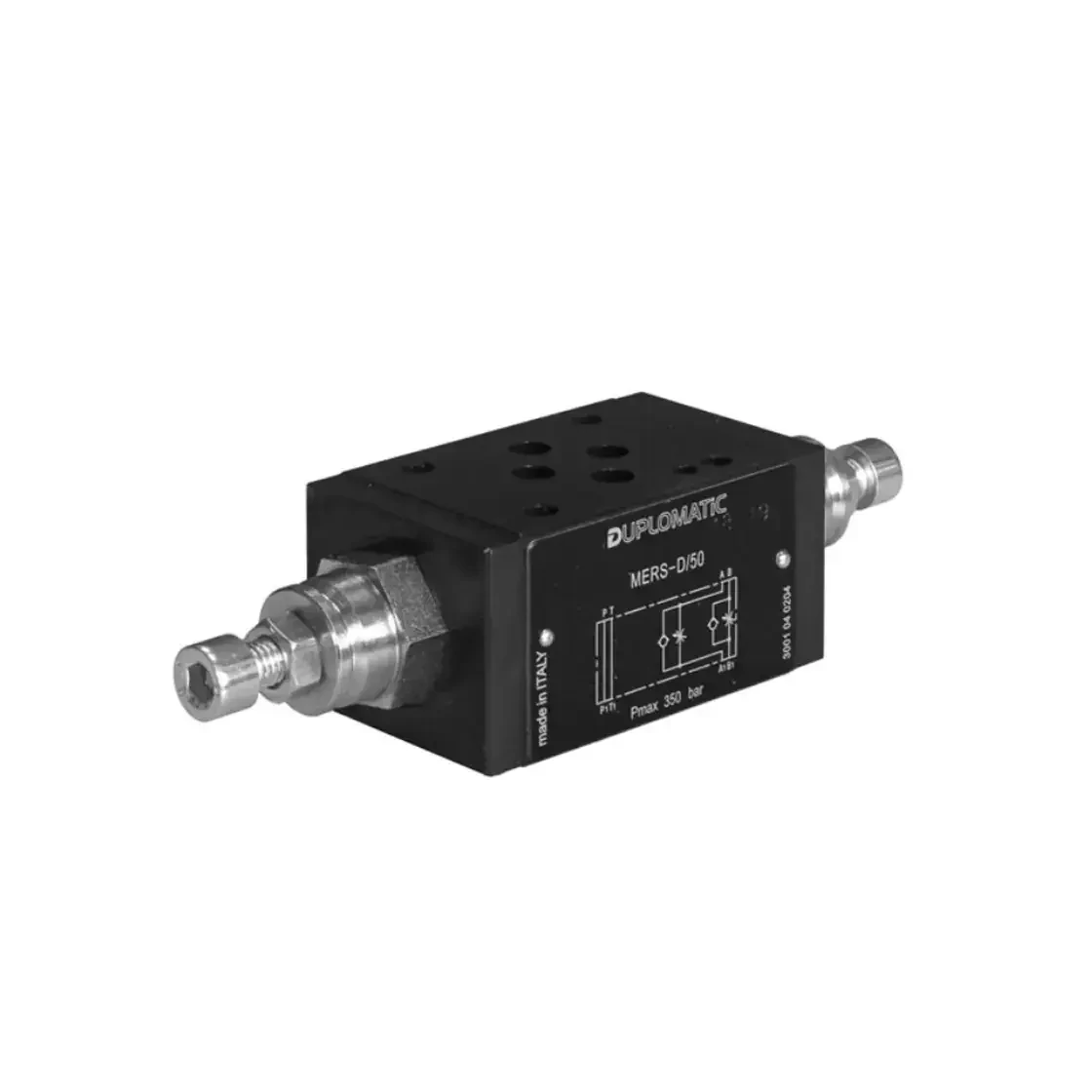

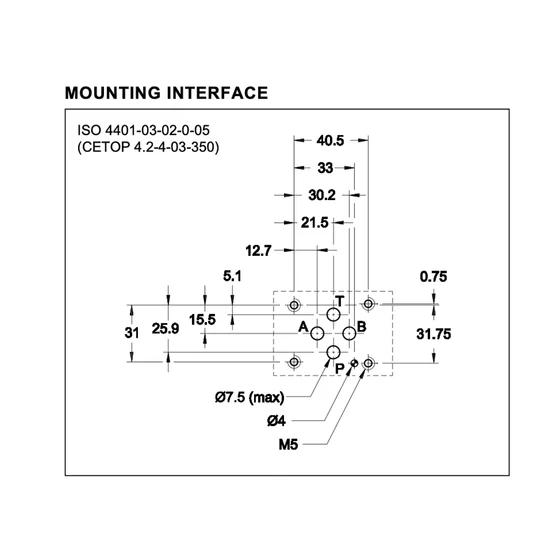

— This is a non-compensated flow control valve equipped with a check valve for free return flow. It is made in a modular design, and the mounting surface complies with ISO 4401 standards; it can be assembled quickly without the use of pipes, using only suitable tie rods or screws, thus forming compact modular groups.

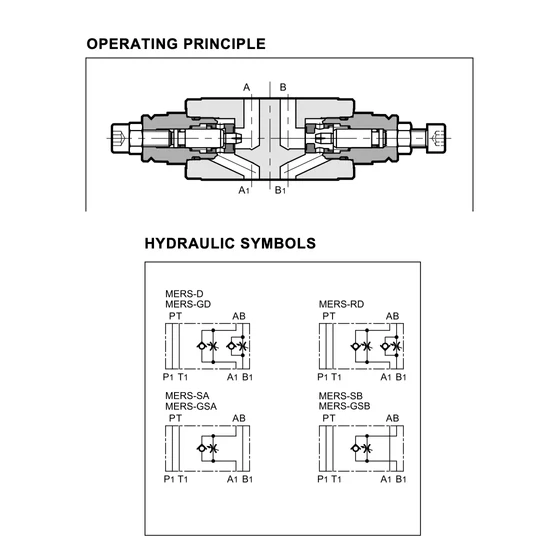

— Also available as a reversible valve (G* versions). The regulation takes place on the inlet or outlet side, depending on how the valve is positioned relative to the OR bottom plate.
— The built-in check valve allows free return flow (0.5 bar opening pressure).

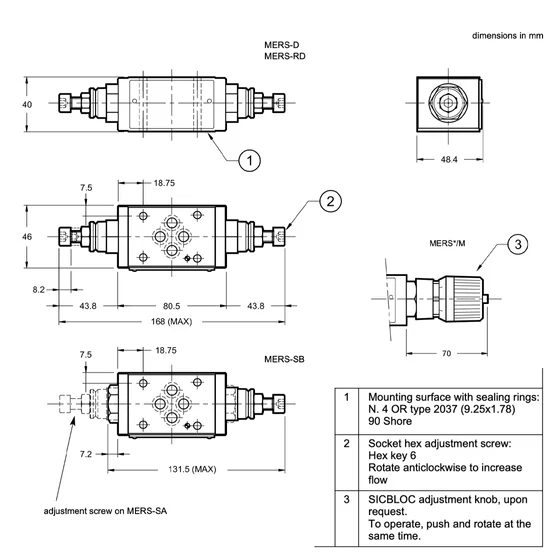

— Equipped with an adjustment screw with hex Allen key.
