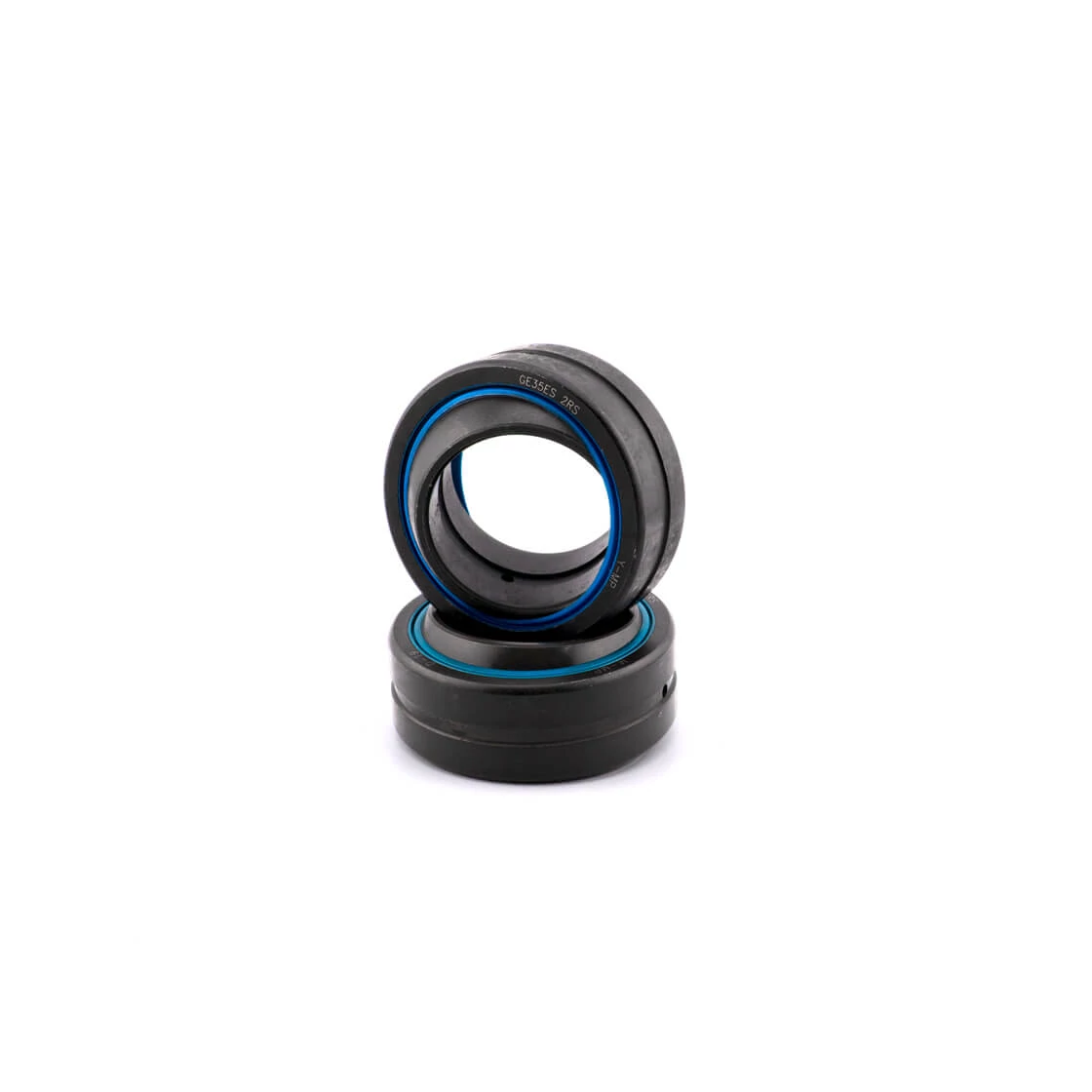

Radial ball joint - NBGE35ES2RS

Radial ball joint - NBGE35ES2RS

Type Lubricable
Spherical bearing width 25 mm
Inner diameter 35 mm
Manufacturer article number: NBGE35ES2RS
Model: NGE035ES2R
Availability: 15 pcs in stock
Manufacturer: --
Description and Size Chart

Description

Description of the GE..ES 2RS type spherical plain bearing
  • The GE..ES 2RS type spherical plain bearings, like the GE..ES type, are radial spherical bearings designed to accommodate radial and axial loads and to allow for angular misalignment between the shaft and housing.
  • The main difference between the two types is the presence of seals in the GE..ES 2RS version. “2RS” indicates integrated seals on both sides, which help retain lubricant inside the bearing and prevent contaminants from entering the bearing surface area, thus ensuring a longer lifespan.
  • Both types of spherical plain bearings require maintenance and contain a steel/steel sliding surface combination, but GE..ES 2RS bearings are more suitable for applications where protecting the interior of the bearing from environmental factors is critical.
Size chart of the GE..ES 2RS type spherical plain bearing
Size diagram of the GE..ES 2RS spherical plain bearing

Click on the item number to view the price and stock availability of the selected product.

Item number A B C D α CDA kg
NGE015ES2R 15 26 12 9 8 17 0,02
NGE017ES2R 17 30 14 10 10 21.2 0,04
NGE020ES2R 20 35 16 12 9 30 0,06
NGE025ES2R 25 42 20 16 7 48 0,11
NGE030ES2R 30 47 22 18 6 62 0,14
NGE035ES2R 35 55 25 20 6 80 0,22
NGE040ES2R 40 62 28 22 7 100 0,30
NGE045ES2R 45 68 32 25 7 127 0,40
NGE050ES2R 50 75 35 28 6 156 0,54
NGE060ES2R 60 90 44 36 6 245 1,00
NGE070ES2R 70 105 49 40 6 315 1,50
NGE080ES2R 80 120 55 45 6 400 2,20
NGE090ES2R 90 130 60 50 5 490 2,70
NGE100ES2R 100 150 70 55 7 610 4,30
NGE110ES2R 110 160 70 55 6 655 4,70
NGE120ES2R 120 180 85 70 6 950 8,00
NGE140ES2R 140 210 90 70 7 1080 11,00
NGE160ES2R 160 230 105 80 8 1370 13,50
NGE180ES2R 180 260 105 80 6 1530 18,50
NGE200ES2R 200 290 130 100 7 2120 28,00
