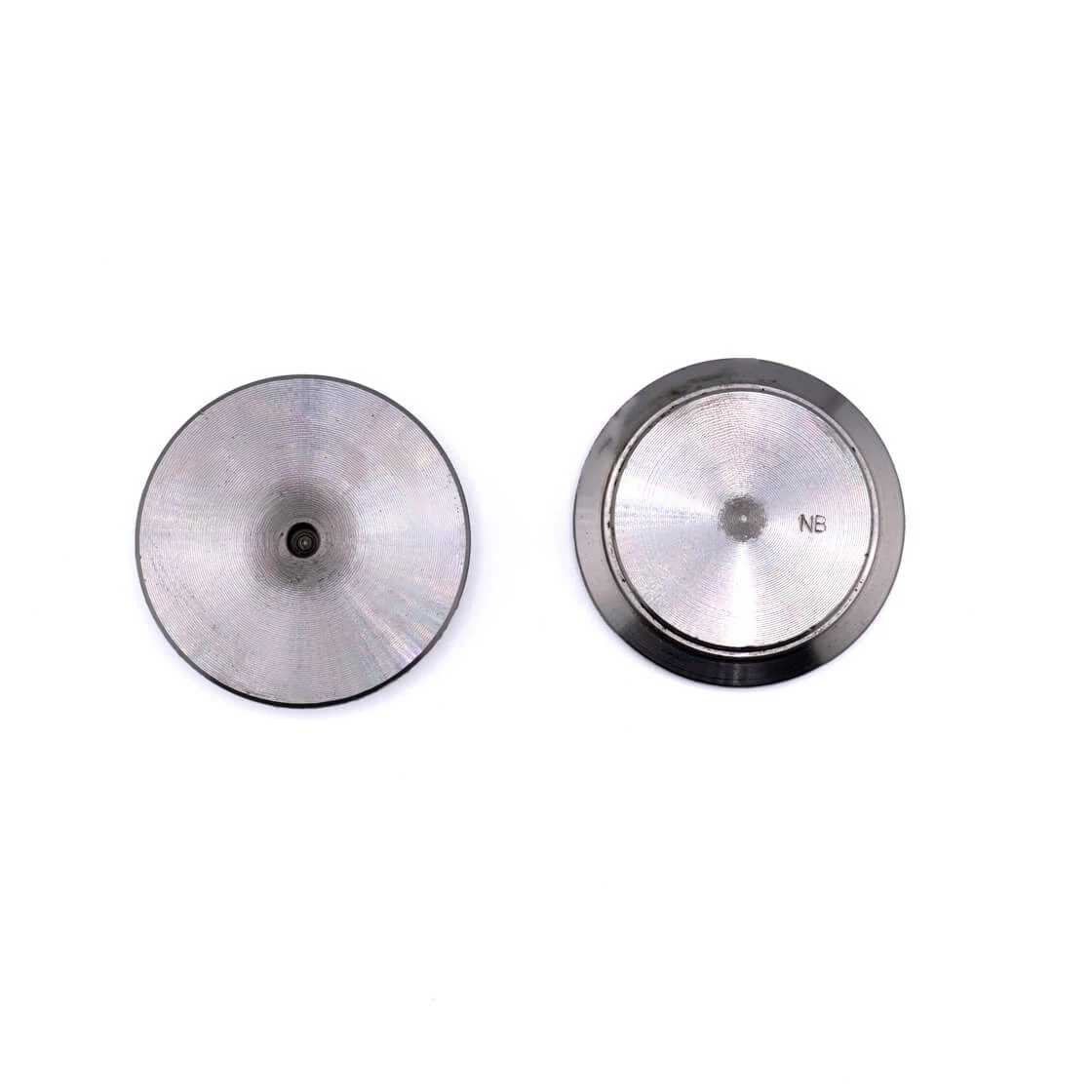

End plug with central drilling - NBFC00035045

End plug with central drilling - NBFC00035045

Type of cylinder cap Centered
Bore diameter 35 mm
Outer Diameter of Shell 45 mm
Manufacturer article number: NBFC00035045
Model: NF035045C0
Availability: 5 pcs in stock
Manufacturer: --
Description and Size Chart

Description

Description of the Centered Cylinder End Cap
  • The centered hydraulic cylinder end cap features a centrally positioned hole, which facilitates the welding of spherical joints to the cylinder and allows for the integration of additional components or connections through this opening.
  • It is made of steel, ensuring adequate strength and durability in hydraulic systems.
Size Chart of the Centered Cylinder End Cap
Size diagram of the centered cylinder end cap

Click on the item number to view the price and stock availability of the selected product.

Item number A B C D E kg
NF025035C0 25 35 7 2 3.2X3 0,04
NF030040C0 30 40 8 2 4.2X4 0,06
NF033042C0 32 42 8 2 4.2X4 0,07
NF035045C0 35 45 10 2 4.2X5 0,10
NF040050C0 40 50 10 2 4.2X5 0,13
NF045055C0 45 55 10 2 4.2X5 0,16
NF050060C0 50 60 10 2 4.2X5 0,19
NF055065C0 55 65 12 2 4.2X6 0,27
NF060070C0 60 70 12 2 4.2X6 0,32
NF063073C0 63 73 12 2 4.2X6 0,35
NF065075C0 65 75 12 2 4.2X6 0,36
NF065080C0 65 80 12 2 4.2X6 0,40
NF070080C0 70 80 12 2 4.2X6 0,43
NF070085C0 70 85 12 2 4.2X6 0,45
NF075090C0 75 90 12 2 4.2X6 0,51
NF080090C0 80 90 12 2 4.2X6 0,54
NF080092C0 80 92 12 2 4.2X6 0,56
NF080095C0 80 95 12 2 4.2X6 0,57
NF085100C0 85 100 15 2 4.2X6 0,82
NF090105C0 90 105 15 2 4.2X6 0,91
NF100115C0 100 115 15 2 4.2X6 1,10
