Description

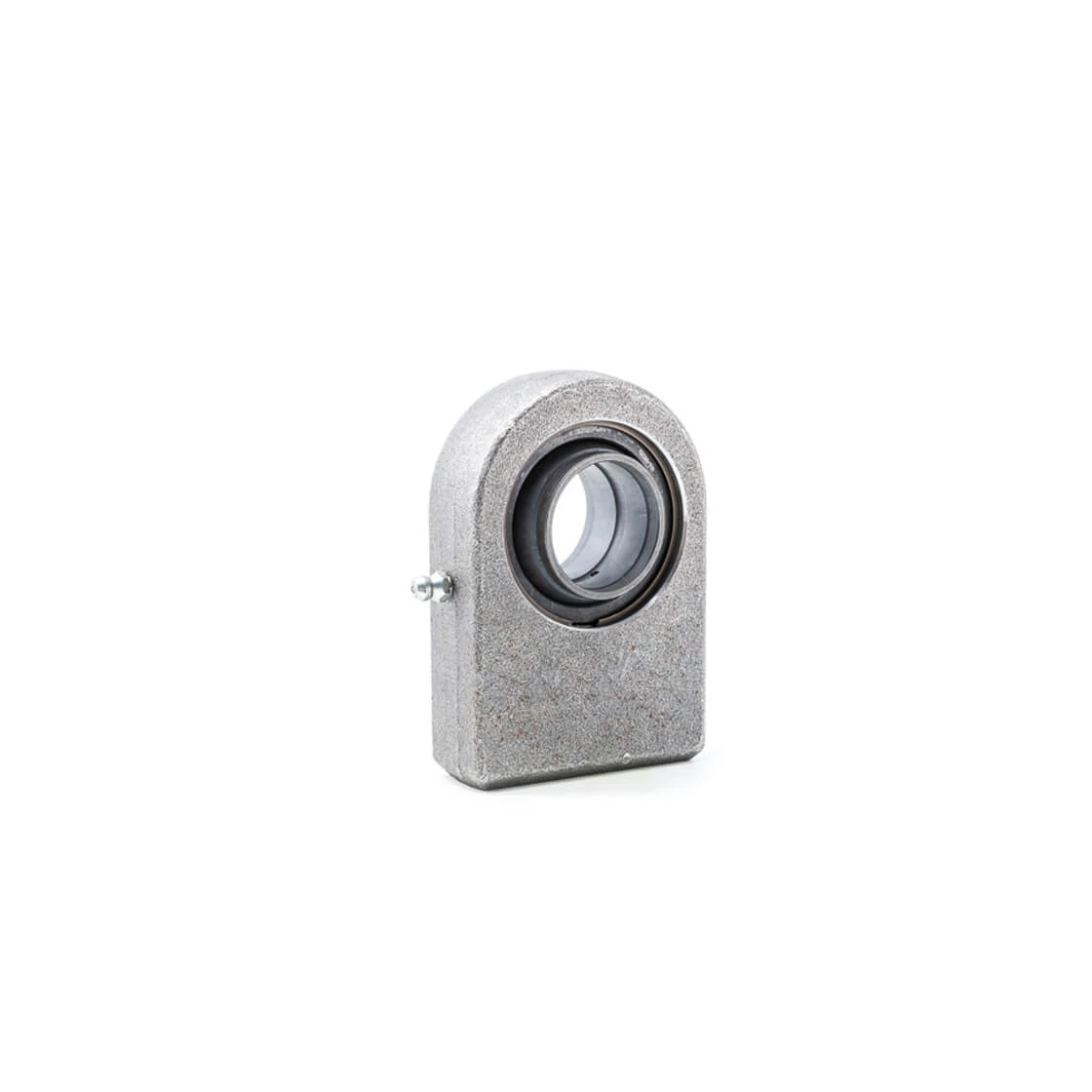

Click on the item number to view the price and stock availability of the selected product. CDA: Maximum dynamic load NRH110L00N and NRH120L00N: Custom productionDescription of the S..L type weldable cylinder end

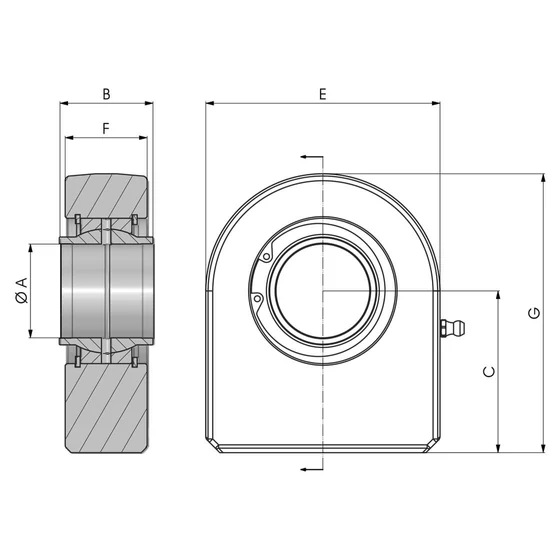

Size chart of the S..L type weldable cylinder end
Item Number
A
B
C
E
F
G
CDA
kg
NRH020L00N
20
20
38
50
19
63
30
0,36
NRH025L00N
25
25
45
55
23
72,5
48
0,54
NRH032L00N
32
32
65
70
27
103
62,5
1,12
NRH040L00N
40
40
69
100
35
119
100
2,50
NRH050L00N
50
50
88
123
40
149,5
156
4,60
NRH063L00N
63
63
107
145
50
178
248
9,30
NRH070L00N
70
70
115
164
55
197
315
11,25
NRH080L00N
80
80
141
180
60
231
400
15,75
NRH090L00N
90
90
150
226
65
263
490
24,00
NRH100L00N
100
100
170
250
70
295
610
33,95
NRH110L00N
110
110
185
295
80
332,5
655
49,00
NRH120L00N
125
125
210
360
90
390
950
81,00
