Description
Leakage Drainage Systems

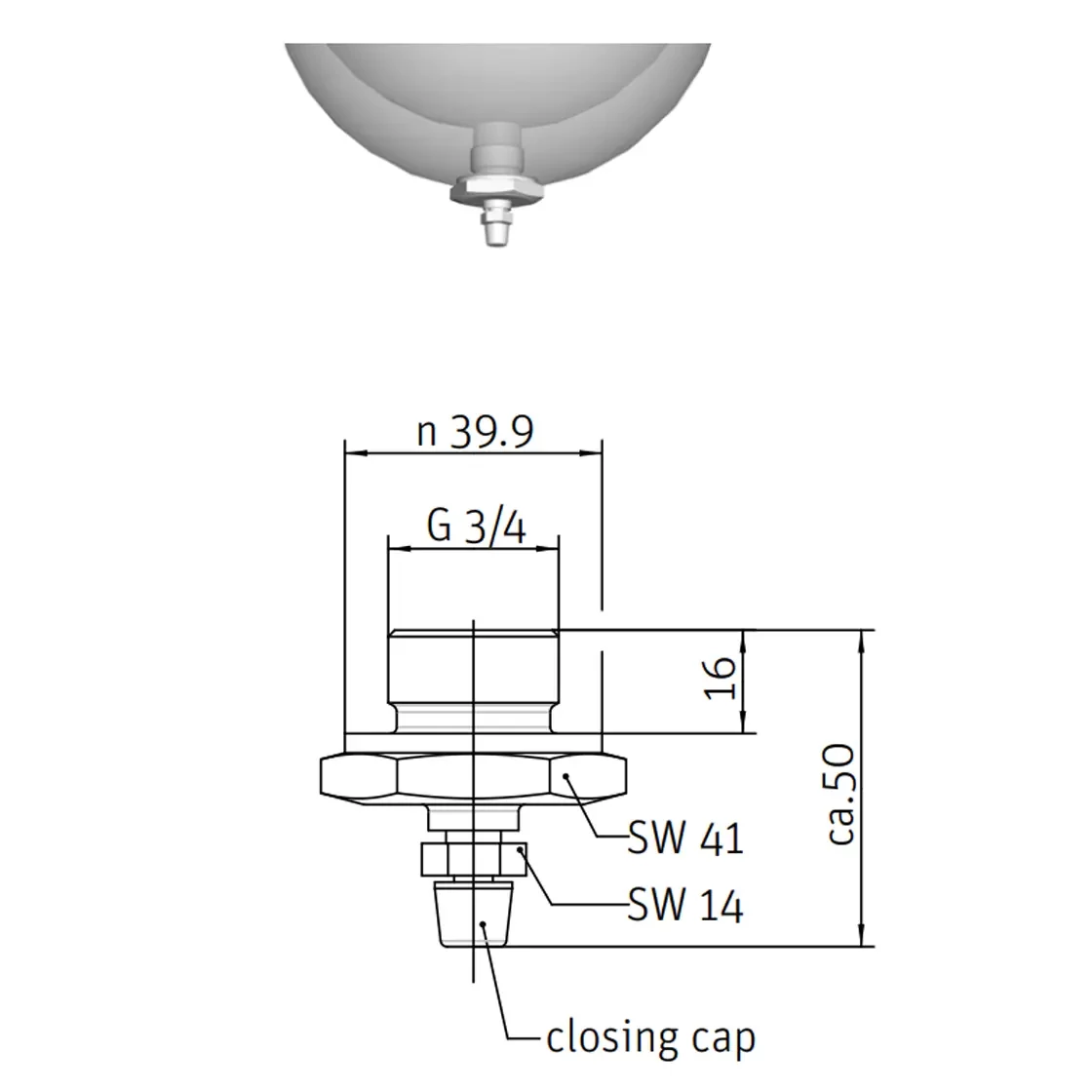

The leakage drainage system includes a leakage drain valve and a Minimess screw connection. The valve consists of a G ¾ threaded part according to DIN 3852 and a venting section screwed to the bottom of the N2 pressure tank, designed to discharge condensate or excess fluid. In the case of horizontal tank installation, the version with a condensate pipe should be used. Alternatively, a Minimess screw connection can be used for condensate drainage. The interception piping system enables ergonomic and easy handling. Manual condensate drainage is possible at the desired location using a drain valve.
