Description

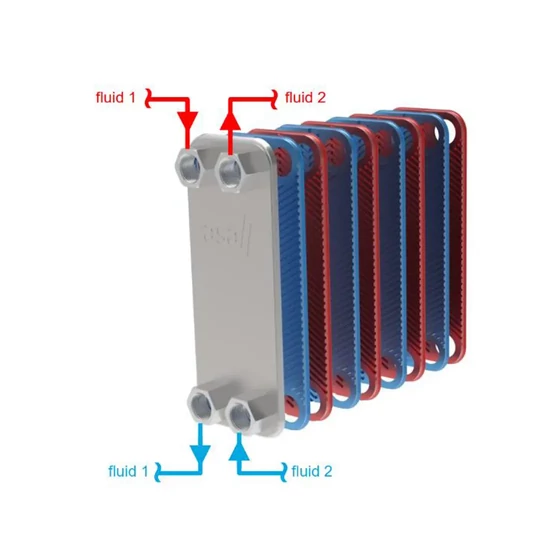

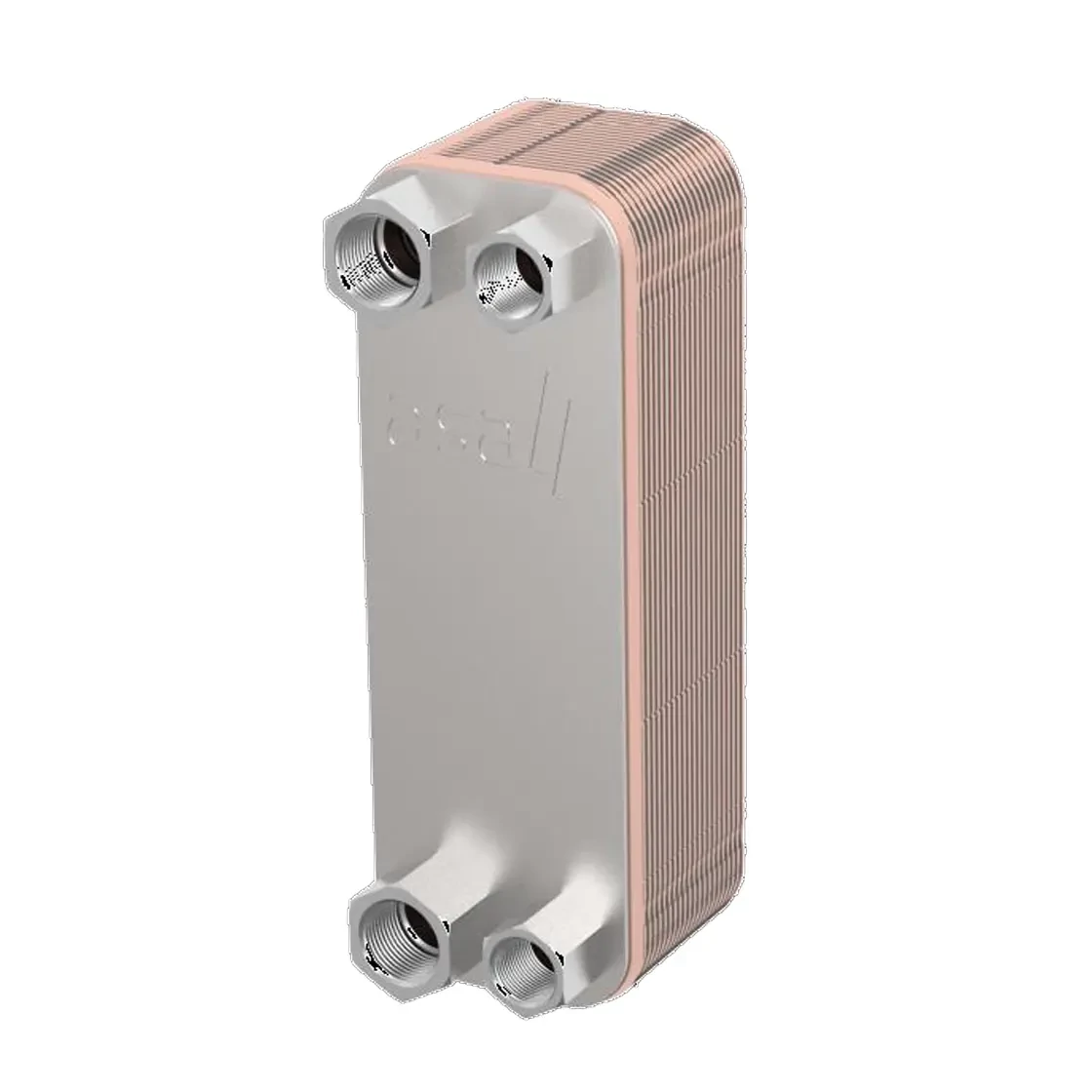

Brazed Plate Heat Exchanger
The brazed plate heat exchanger is designed for both cooling and heating. It is often used to cool hydraulic fluids and lubricating oils, and is also suitable for water, air, steam, and gas applications.
Advantages
- Strength
- Safety
- Compact size
- High thermal efficiency
- Low maintenance requirement
- No gaskets – no leakage
| Type | Material |
|---|---|
| Plates | Steel 1.4401 |
| Cover plates | Steel 1.4306 |
| Connections | Steel 1.4306 |
| Brazing material | Copper |
| Operating temperature range | -160 °C to +200 °C |
| Test pressure | 43 bar |
| Maximum pressure | 30 bar |
