Tube Coupling - (WEE-UNF) - JIC 1.1/16
14.5681 € + VAT
Qty:pcs
Add to Cart

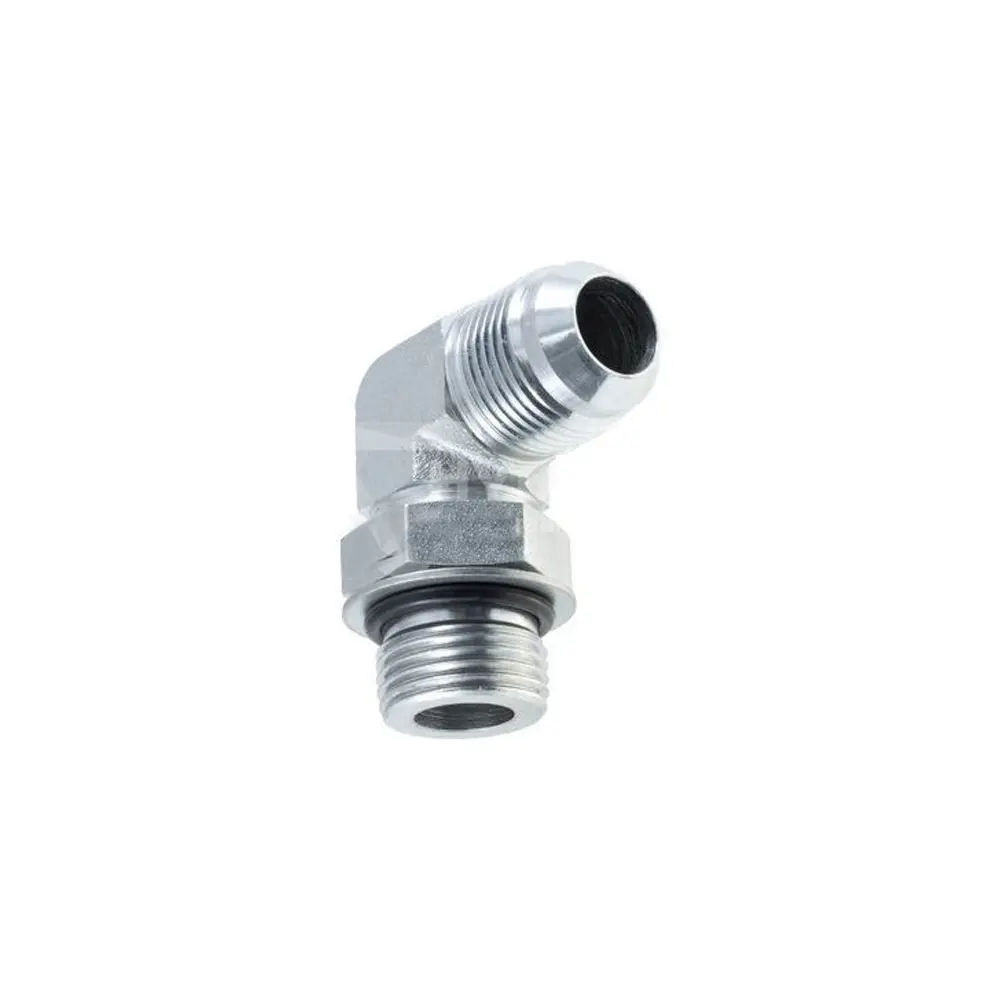

Tube Coupling - (WEE-UNF) - JIC 1.1/16"-12 - UNF 7/8"

14.5681 € + VAT
Qty:pcs
Add to Cart

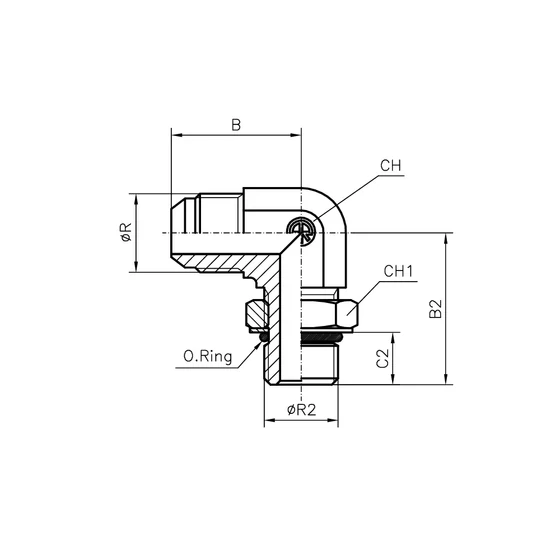

Material Steel
B2 (mm) 45.2
B (mm) 42.2
C2 (mm) 12.7
CH (mm) 27
CH1 (mm) 27
Connection 1 UNF external thread
Connection 2 UNF external thread
Connection ØR (col) 1” 1/16
Connection ØR2 (inch) 7/8
Connector sub-type UNF menet - JIC kivitel (WEE-JIC)
Connector type Könyök beállítható - WEE
Pipe size (mm) 20
Pipe size (inch) 3/4
Surface Galvanic coating
Structural form Adjustable Elbow Fitting - WEE, WH
Sealing 1 37° external cone
Sealing 2 O-ring
Operating pressure (bar) 350
Manufacturer article number: ST. 06.12.10
Model: HQCJWEE10U120
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
