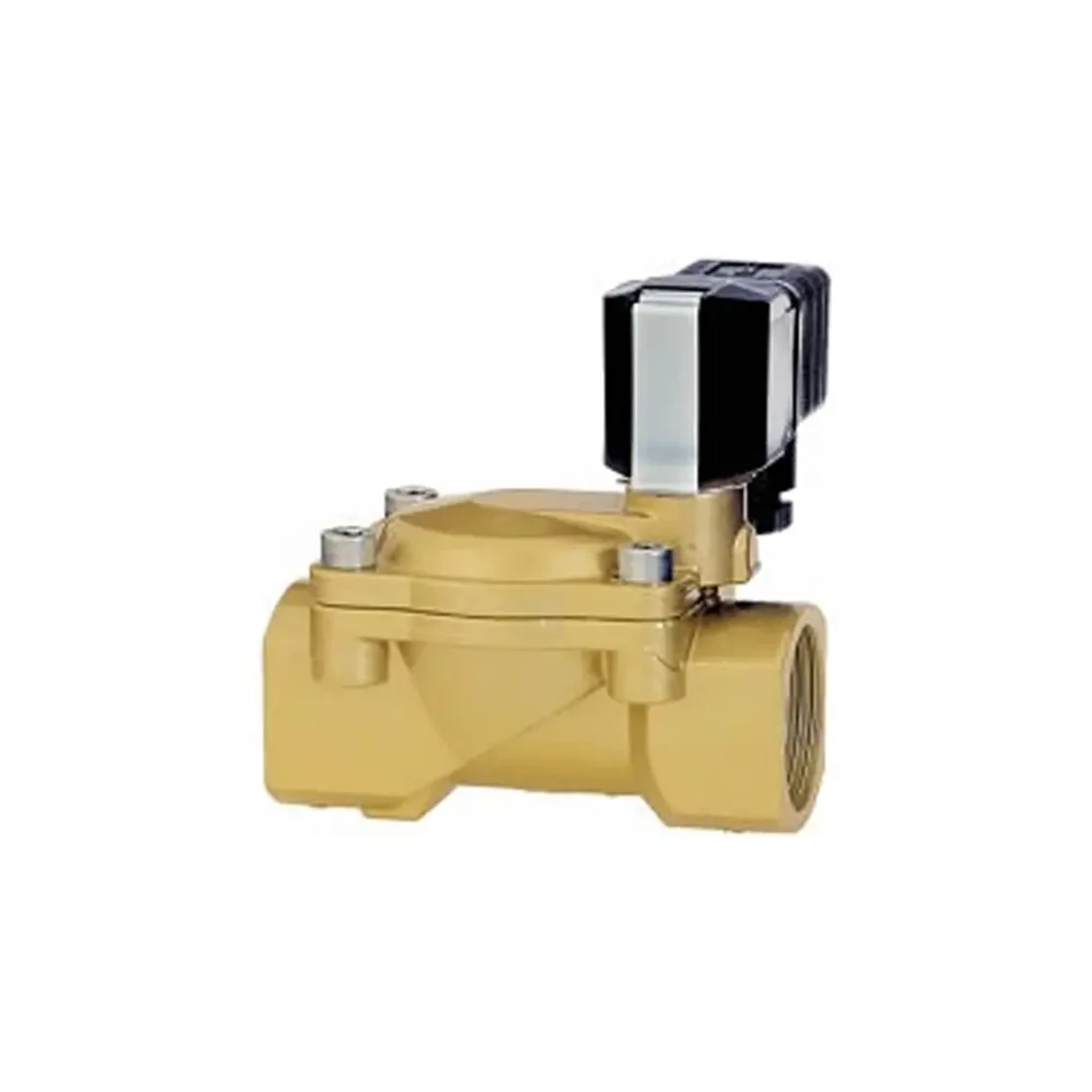

Valve - 8240700.9101.02400

IMI Buschjost 2/2-Way Solenoid Valve (NC)

This IMI Buschjost 2/2-way solenoid valve features a clear compact design, providing high flow rate and damped operation. It is particularly suitable for use as a water valve in accordance with DIN EN 60730-2-8. The solenoid is interchangeable without tools, thanks to its Click-on® system.

Features

• High flow rate
• Damped operation
• Clear compact design
• Solenoid interchangeable without tools (Click-on®)
• Particularly suitable for use as water valve in accordance with DIN EN 60730-2-8

Technical Details

• Medium: Gases, Liquids
• Port Size: G2
• Valve operation: 2/2-way
• Coil Code: 9101
• Function: Normally Closed (NC)
• Flow: 683 l/min
• Materials - Body: Brass
• Materials - Elastomers: NBR
• Country of Origin: Germany
• Range: 82400
• Brand: IMI Buschjost
• Operating Temperature: -10 ... 50 °C (14 ... 122 °F)
• Operating Pressure: 0.1 ... 10 bar (1.45 ... 145 psi)
• Certification - IP Rating: IP65
• Dimensions:
  • Height: 109 mm
  • Length: 142.5 mm
  • Width: 160 mm
• Weight: 3.98 kg
