Valve - M2120ES24V

Solenoid Valve (NO Function)

This solenoid valve is normally open without power (NO) and is designed for versatile use with various media. It is always supplied as a complete package, including a solenoid coil and a connector plug.

Item Description

• Materials:
  • Bodies: 1.4581 (internal parts 1.4104)
  • Seal: FKM
• Temperature range:
  • -10 to +80 °C (for the medium)
  • Environment: max. +35 °C
• Media: Compressed air, neutral gases, water, neutral low-viscosity media. Other media on request.
• Operating pressure: 0 to 16 bar
• Installation position: With upright magnets, opened without power (NO) function. Also possible with horizontal magnets.
• Control voltages:
  • Standard: 24 V DC, 230 V AC
  • Other voltages upon request
• Voltage tolerance: ± 10 %
• Protection class: IP 65

Properties

• Control voltage: 24 V DC
• Function: Normally open (NO)
• Thread: G 1/2"
• DN [mm]: 13

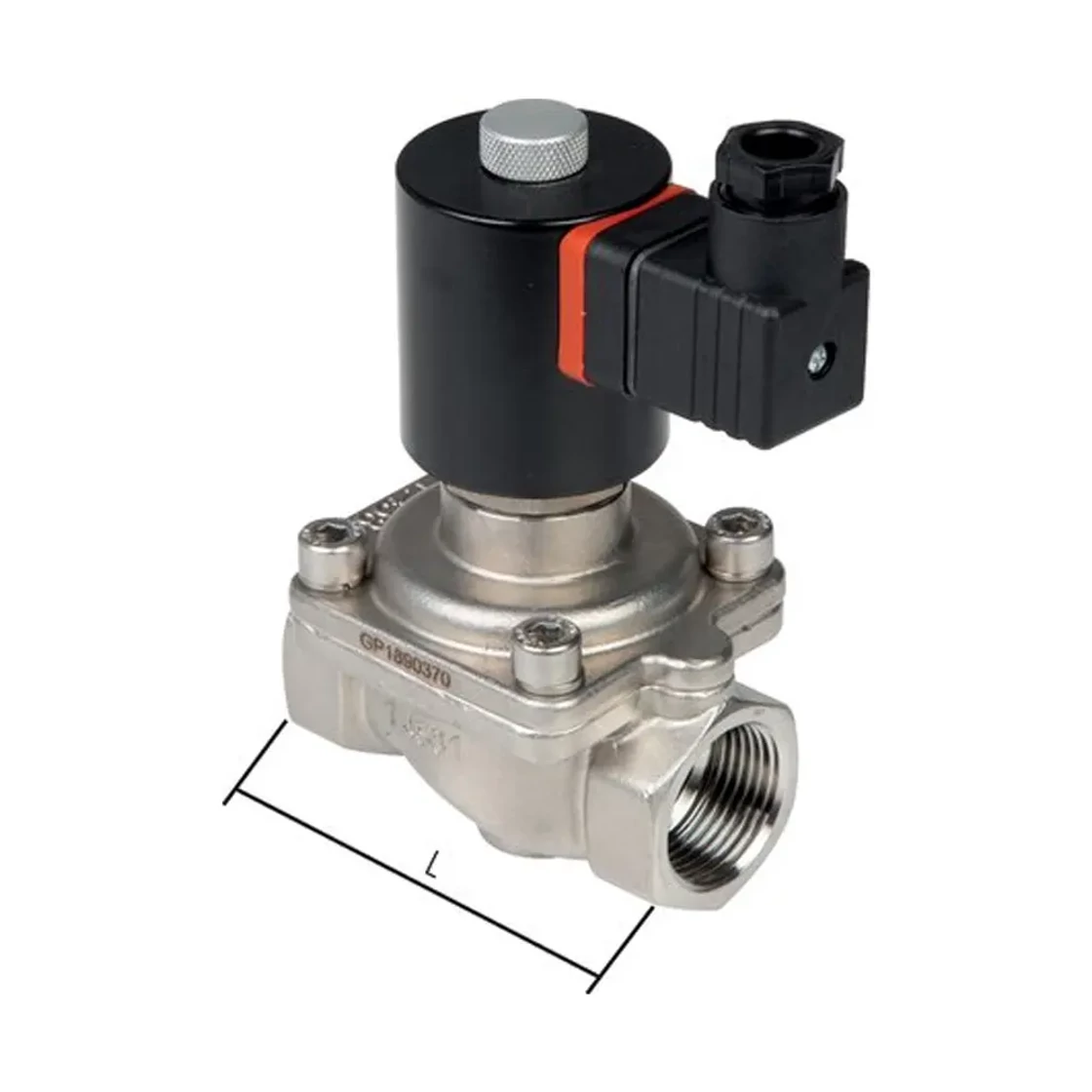

• L [mm]: 67
• Kv value [l/min]:* 65
• Power consumption (DC) [W]: 26
• Structural shape solenoid coil: C
• Spare solenoid coil: MAG C 24V=

*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge.

Important Note

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
