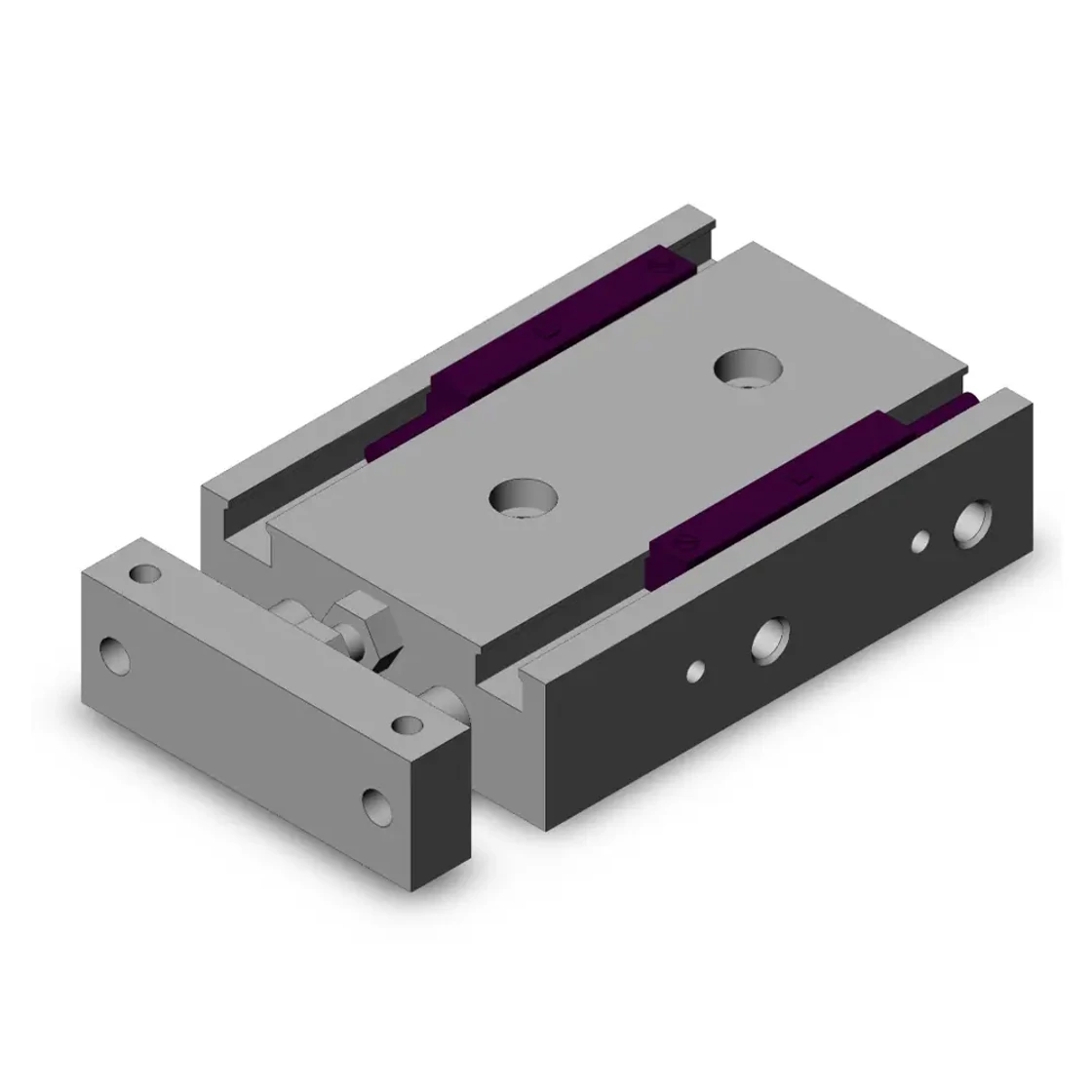

Cylinder - CXSM10-10-Z73L

SMC CXS Series Dual Rod Compact Cylinder

The SMC CXS series is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and features a very accurate non-rotating specification. It is well-suited for precise pick-and-place applications or light-duty material handling. The CXS can be used with either reed or solid-state switches and is also available in cleanroom versions.

Key Features

• Type: Dual rod cylinder with slide bearing
• Bore Sizes: 6, 10, 15, 20, 25, 32 mm
• Strokes: From 10mm through 100mm, depending upon bore size
• Compact Size: Space-saving design
• Accurate Non-Rotating Operation: Ideal for precision tasks
• Switch Compatibility: Can be used with reed or solid-state switches
• Cleanroom Versions: Available for specialized environments
• Switches and Lead Wire Lengths: Variety of switches and lead wire lengths available

Applications

• Precise Pick-and-Place: Accurate material handling in small footprints.
• Light-Duty Material Handling: In automated processes requiring delicate movements.
• Cleanroom Environments: For sensitive manufacturing processes, such as in the semiconductor industry.
