Pressure relief cartridge - M30×1,5 - 40-100bar
105.5874 € + VAT
Qty:pcs
Add to Cart

Pressure relief cartridge - M30×1,5 - 40-100bar

105.5874 € + VAT
Qty:pcs
Add to Cart
Connection cartridge
Maximum flow rate 120 l / min
Type of Actuation Imbuszkulcs
Type of Operation Mechanikus
Size M30×1,5
Maximum pressure 350 bar
Type Pressure relief
Model: HVNHFM30BR100
Availability: 2 pcs in stock

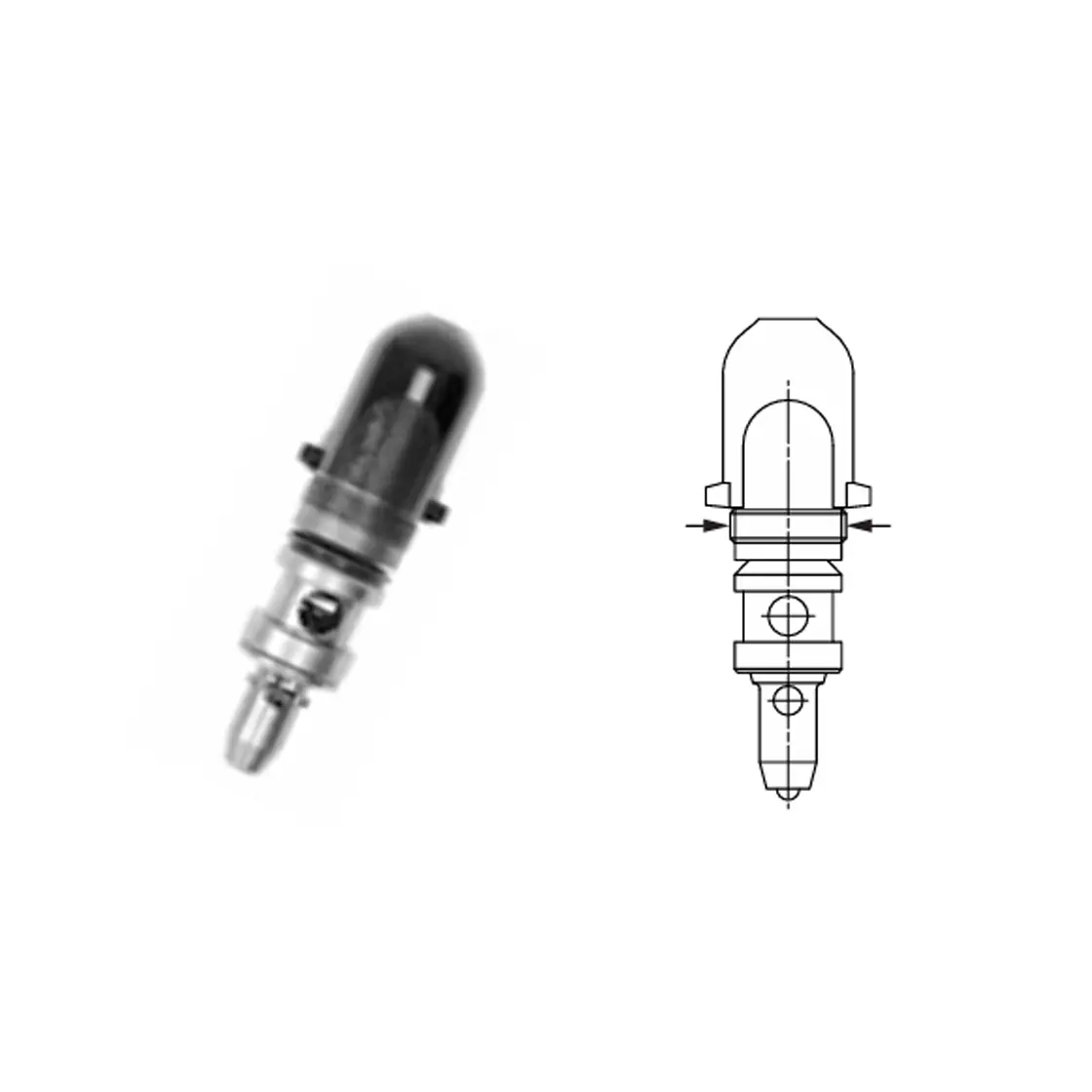

This pressure relief valve features a seat design with a damping piston, ensuring high sealing integrity and preventing valve vibrations. Its design results in a flat control characteristic, meaning that the set opening pressure is largely maintained even with increasing flow rates. This is achieved by the effect of flow forces on the valve disk, which causes the valve to open further as the flow rate increases.

Function and Design

  • Design: Seat valve with damping.
  • Versatile Version Variants:
    • Housing for pipeline installation with and without measuring connection.
    • Valve cartridges for block installation.
    • Various adjustment methods such as hand wheel, lead-seal capable, fixed, hand wheel with scale (with and without lock).
    • Check valve before damping piston for fast response times.

Description

Technical Data

  • Line Connections: For pipeline installation and block installation.
  • Installation Position: Optional.
  • Ambient Temperature: –30...+80 °C.
  • Pressure Medium: Hydraulic oils based on mineral oil according to DIN/ISO;
  • Viscosity:
    • Permissible range: 10–800 mm²/s
    • Recommended range: 20–100 mm²/s
    • Permissible for start: up to 2000 mm²/s
  • Pressure Medium Temperature:
    • –30 °C...+80 °C with NBR sealings (Perbunan®)
    • –15 °C...+120 °C with FKM sealings (Viton®)
  • Filtration: Oil contamination Class 19/16 in accordance with ISO/DIS 4406, or Class 10 in accordance with NAS 1638, to be achieved using filter β25 = 75.
  • Direction of Flow Rate: Shown by symbol or marking.
  • Operating Pressure (for line installation):
    • P (Inlet): Max. permissible 350 bar, depending on number of load changes and temperature.
    • T (Tank): Max. permissible 210 bar (NBR) or 80 bar (FKM), depending on number of load changes and temperature.
  • Operating Pressure (for block installation):
    • P (Inlet): In accordance with set pressure.
    • T (Tank): NBR max. 210 bar, FKM max. 80 bar.
  • MTTFd: Max. 150 years.
  • Cracking Pressure (tolerance pnom +5 %): Set at flow 0.1 l/min.
  • Leakage Oil Flow: Max. 1 cm³/min.
  • Flow: Max. 120 l/min.
