Pressure switch - -200...+950 mbar - B1/8

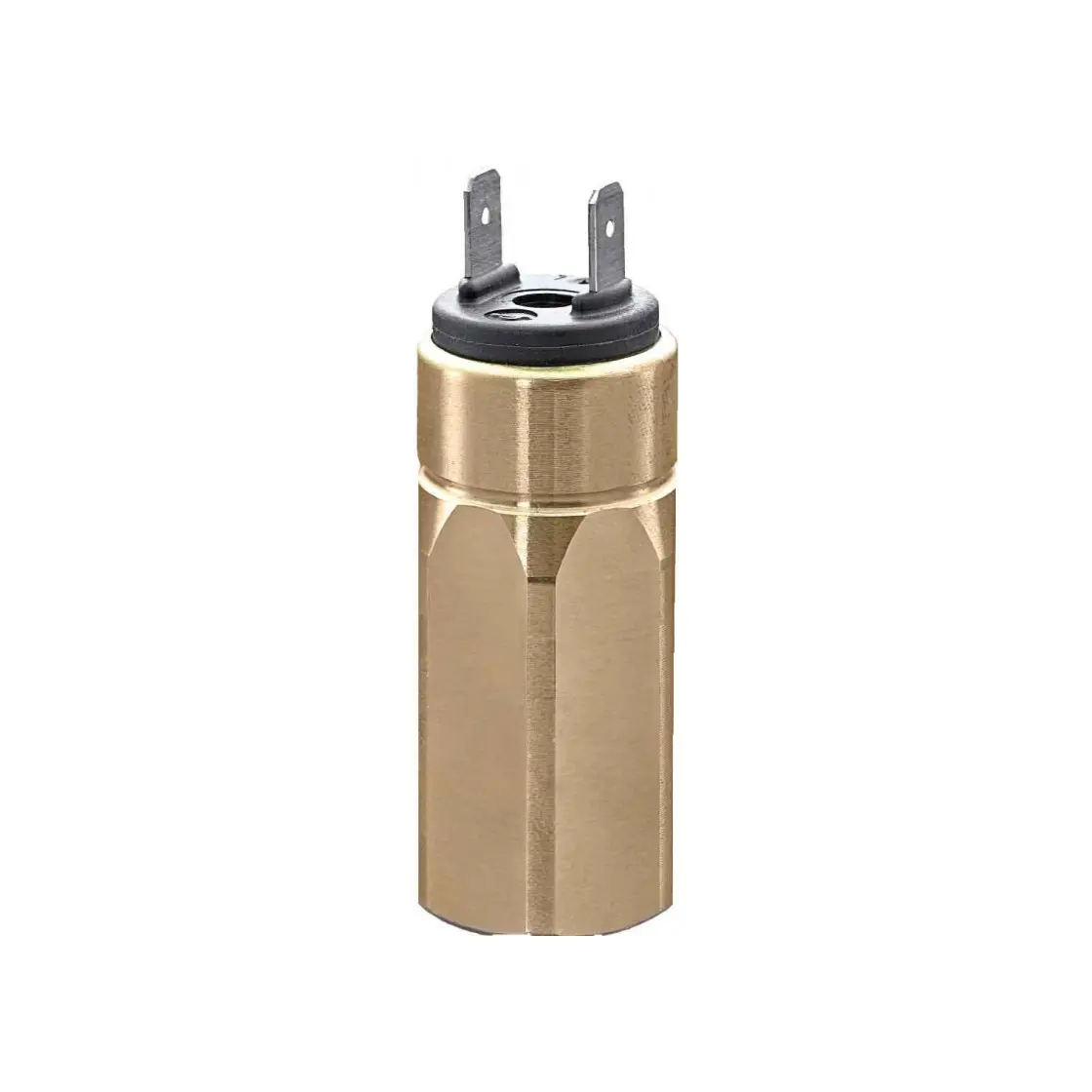

Pressure switch - -200...+950 mbar - B1/8" - NC - 0151-455-15-3-001

Material Brass
Connection AMP 6.3 x 0.8
Electrical connection csúszósarus
Mechanical connection G1/8 B ISO 1179 / belső
Pressure Range -200...+950 mbar
Type Pressure switch
Maximum overpressure 35 bar
Contacts NC - default closed
Switchable voltage 42V
Manufacturer article number: 0151-455-15-3-001
Model: DKG001B18C151
Availability: 2 pcs in stock
Manufacturer: Suco

Vacuum switch up to 42 V, NO or NC

• Brass housing

• Flat or M3 threaded connection

• Operating voltage: Up to 42 V

• Overpressure protection: Up to 35 bar

Description

    •    Type: 0151

    •    Operating voltage: 10 … 42 VAC/DC

    •    Rated current (resistive load): 10 mA … 4 A

    •    Switching power: 100 VA

    •    Seal material temperature resistance: -15 °C … +120 °C

    •    Switching frequency: 200 / minute

    •    Mechanical lifespan: 1,000,000 cycles

    •    Pressure rise rate: ≤ 1,000 bar / s

    •    Vibration resistance: 10 g; 5 … 200 Hz sine wave; DIN EN 60068-2-6

    •    Shock resistance: 294 m/s²; 14 ms half sine wave; DIN EN 60068-2-27

    •    Housing material: Brass

    •    Protection class: IP65, connectors IP00

    •    Weight: approx. 140 g
