Regulator - 100020 / FU 7172

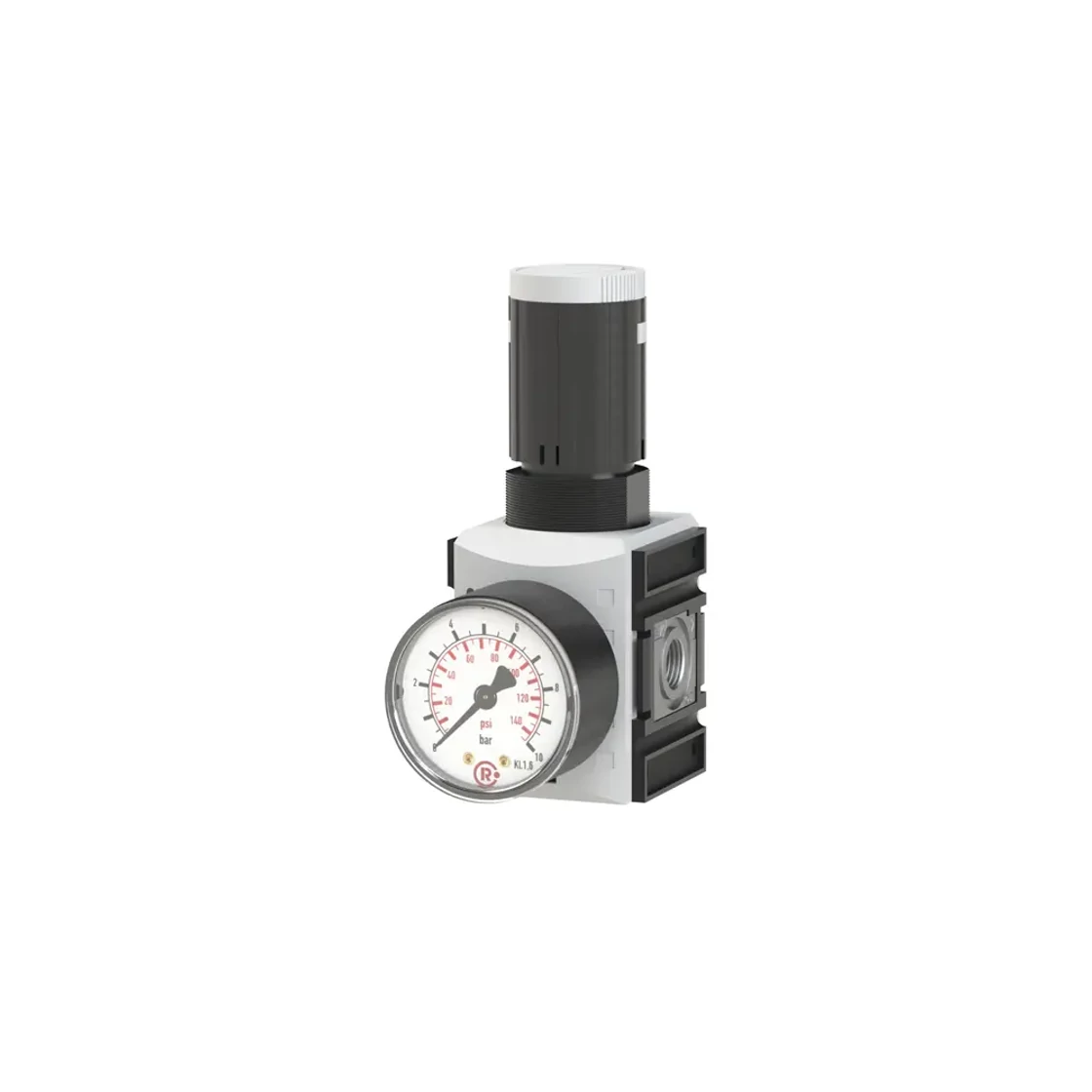

Pressure Regulator "FUTURA", Size 2, G 1/2, 0.1 - 2 bar

The "FUTURA" pressure regulator is a modernly designed diaphragm pressure regulator with a self-relieving design and excellent flow rates. The regulator knob can be latched and locked. Includes a pressure gauge.

Technical Specifications

• Article No.: 100020
• Type No.: FU 7172
• Series: FUTURA
• Size: 2
• Connecting thread: G 1/2
• Country of origin: DE
• Max. input pressure: 16 bar
• Control range: 0.1 - 2 bar
  • Min. control range: 0.1 bar
  • Max. control range: 2 bar
• Pressure gauge display:
  • Min.: 0 bar
  • Max.: 2.5 bar
• Flow rate: 5200 l/min (measured at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar)
• Medium: Compressed air, neutral gases
• Temperature range:
  • Min.: -10 °C
  • Max.: 50 °C
• Housing material: PA66 GF60
• Connecting thread material: Die-cast zinc
• Sealant: NBR
• Diaphragms material: NBR
• Dimensions:
  • A: 63.0 mm
  • B: 150.0 mm
  • C: 110.0 mm
• Class name: MAX
• Customs tariff number: 84811099
• REACH SVHC1 substance name: Lead
• CAS no. SVHC 1: 7439-92-1
• RoHS materials notice: Rohs compliant
• REACH Info: Contains SVHC substance
