Description
| property | value |
|---|---|
| Quantity Per Box | 1 |
| Output Type | 4...20 mA (2-wire) |
| Electrical connection | DIN EN 175301-803 Form A 4 Pole |
| Operating pressure | 0...1000 bar |
| class | European class of high-pressure couplings |
| Product style | Pressure sensor |
| Operating temperature | -40...105°C / (-40...221°F) |
| Connector size | G1/4, DIN 3852 T11 (E) |
| Connector Type | G1/4, DIN 3852 T11 (E) |
| Compliance standards | Ce |
| weight | Approx. 80 g |
| altitude | n.a. |
| length | n.a. |
| width | Case diameter 22 mm |

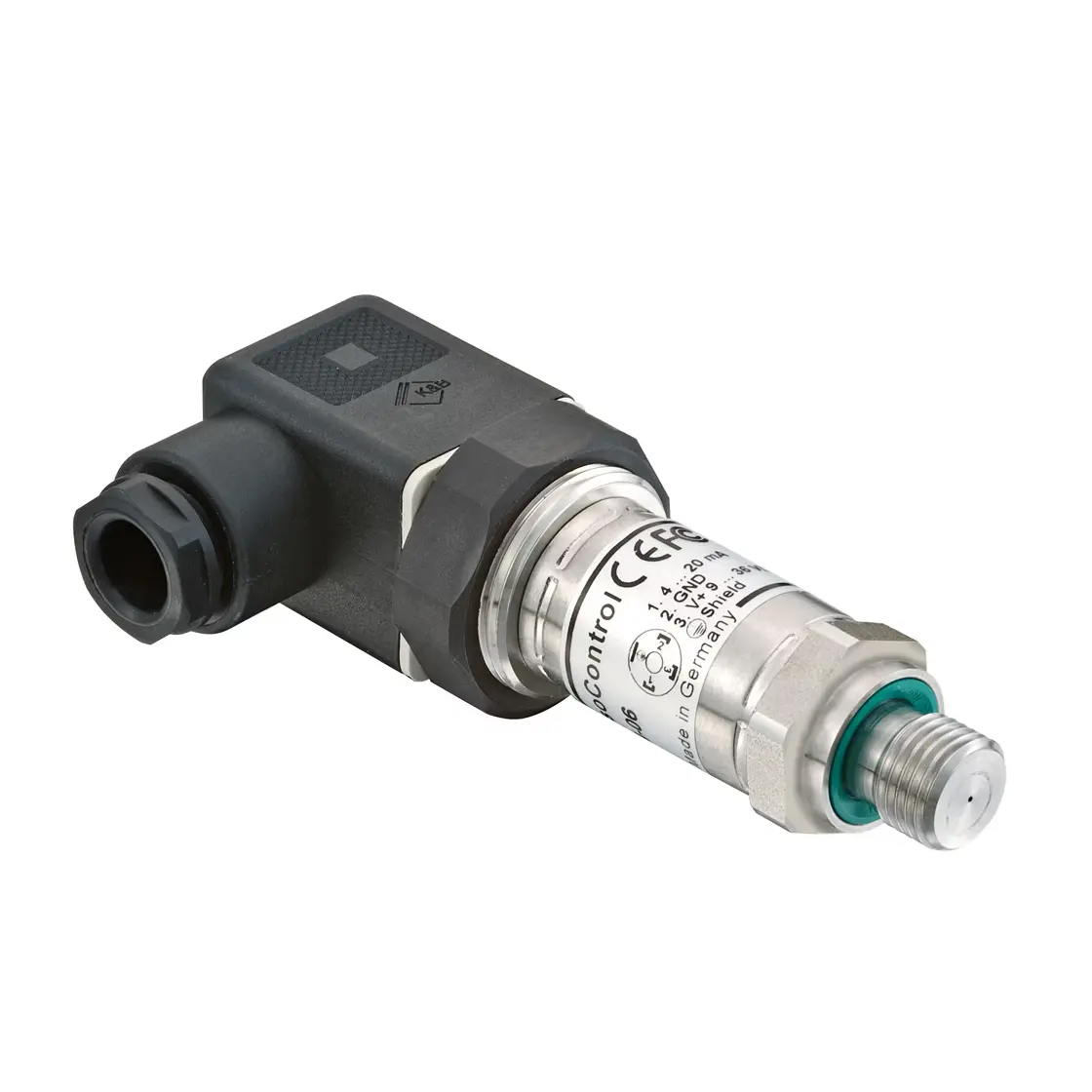

A high dynamic pressure sensor is required to control the piston, especially in casting applications. In this fast, high-energy process, the components are subjected to vibration, vibration and pressure acceleration. The SCP08 pressure sensor measures pressure through a specially designed load cell and has a high level of anti-overload pressure to withstand pressure spikes. The speed of the sensor directly affects the quality of the production process. The unique combination of accuracy, durability and high dynamic response makes the SCP08 ideal for the requirements of casting applications.
Markets
- Industrial Markets
Applications
- Press production
- Castings
Features / Benefits
- 600 / 1000 bar (8,702 / 14,504 psi)
- G1/4"
- 0-10V / 4...20mA 2-wire
- M12x1 / DIN
- Reinforced interior design
- Resistance to vibration and vibration
- Designed for high pressure acceleration
- High dynamic signal
