Description
Features
- Compact size
- Stainless steel measuring cell
- Stainless steel housing
- Shock and vibration resistant
- Broad material compatibility
- High linearity
- Long-term stability
- Material temperature: -40 - 125 °C
- Up to 1000 bar
- High burst pressure
- 1 ms
- Wear-resistant milling
- Encapsulated electronics

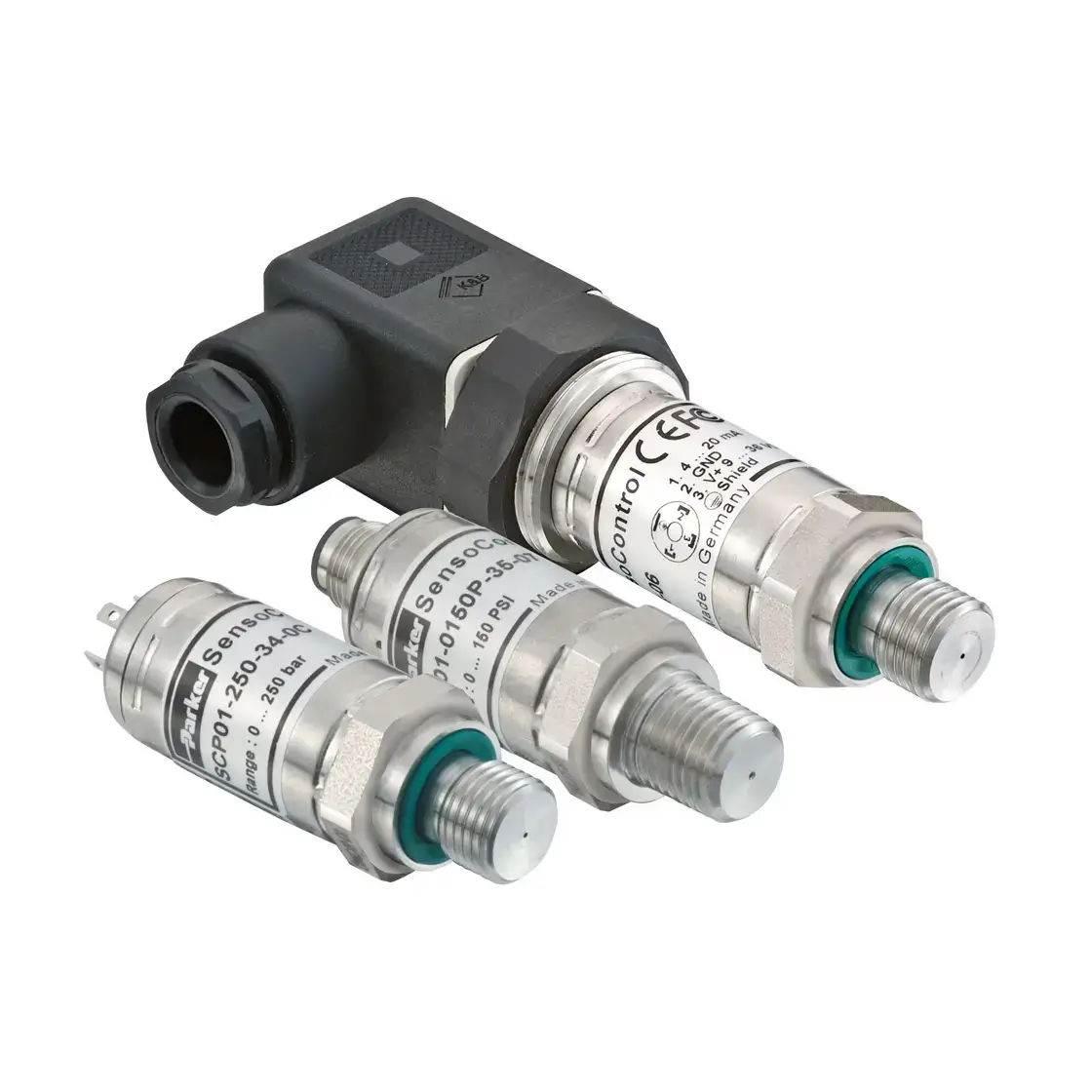

The SCP01 pressure sensor is designed according to industrial requirements and is used in control, regulation, and monitoring systems. It is characterized by its compact design, high linearity, and excellent interference resistance. Thanks to its fast response time, it is also suitable for rapid control solutions. The compact stainless steel housing is ideally suited for harsh environmental conditions. All components in contact with the medium are made of stainless steel, and the welded thin-film measuring cell ensures optimal material compatibility. The electronics are encapsulated to protect against vibration damage and moisture.
For precise pressure measurement and to avoid disturbances, an EDM bore is integrated. This minimizes cavitation caused by air and contaminants, preventing pressure spikes and surges from affecting the measuring cell.
This product is ideal for continuous use in hydraulic applications due to its long service life, high accuracy, reliability, and robust stainless steel construction.
Typical Applications
- General machinery manufacturing
- Injection molding machines
- Die casting machines
- Press manufacturing
- Test benches
- Machine tool manufacturing
Technical Data
| Property | Value |
|---|---|
| Pressure range Pn relative 0... (bar) | 600 |
| Overload pressure Pmax relative (bar) | 2 x Pn |
| Burst pressure Pburst relative (bar) | 4 x Pn |
| Properties | Values |
|---|---|
| Response time | ≤ 1 ms |
| Long-term stability | < 0.2 % FS / year |
| Load cycles | > 20 million |
| Weight | Approx. 80 g |
| MTTFd | > 100 years |
| Accuracy | |
| Non-linearity BFSL according to IEC 61298-2 | ≤± 0.25 %FS |
| Accuracy type | ≤± 0.25 %FS |
| Maximum accuracy | ≤± 0.5 %FS |
| Total error at 0 - 85 °C | ≤± 1 %FS |
| Temperature coefficient | |
| Zero point | Max. ≤± 0.2 %FS/10 K |
| Output range | Max. ≤± 0.2 %FS/10 K |
| Material | |
| Housing | Stainless steel 1.4404 |
| Properties | Values |
|---|---|
| Ambient temperature range | -40...+85 °C |
| Media temperature range | -40...+125 °C |
| Compensated range | 0...+85 °C |
| Storage temperature | -40...+125 °C |
| Vibration resistance | IEC 60068-2-6: 20 g |
| Shock resistance | IEC 60068-2-27: 500 g |
| Electrical protection | Short-circuit, signal to GND, reverse polarity protection |
| EM compatibility | |
| Emission | EN 61000-6-3 |
| Immunity | EN 61000-6-2 |
| Process connection | Erosion milling 0.6 mm |
| Tightening torque | Max. 35 Nm |
