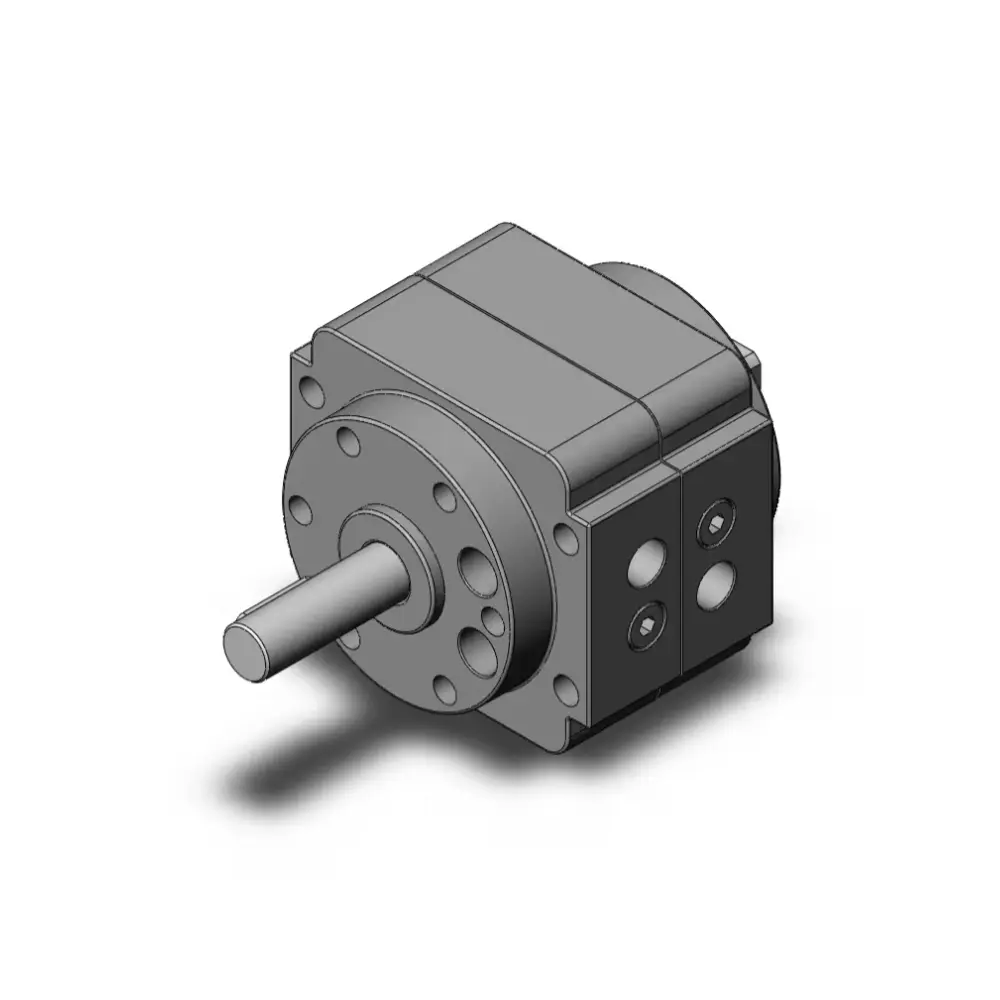

Vane style rotary actuator - CRB1BW50-270S

SMC CRB1 Series Rotary Actuator (Vane Type)

The SMC CRB1 series vane style rotary actuator is offered in 7 sizes, and the entire series is capable of rotation angles of up to 270 degrees. The double vane style, offered on the 90 and 100-degree rotation, provides twice the torque of the single vane. Bearings are used throughout the series to support thrust and radial loads. In addition, internal rubber bumpers are utilized, making this series highly reliable. Optional auto switches can be moved anywhere along the circumference to allow mounting in a position that is most appropriate for your specifications.

Key Features

• Type: New Style rotary actuator, vane type
• Compact, space-saving body: Ideal for confined spaces.
• Direct mount applications possible: Simplifies installation.
• Highly reliable: Internal rubber bumpers contribute to a long service life.
• Ports: Body side and axial direction ports.
• Unrestricted auto switch mounting positions: Flexible sensor placement.

Technical Details

• Sizes: Available in 7 different sizes.
• Rotation Angle: Up to 270 degrees for the entire series.
• Double Vane Torque: Provides twice the torque for 90 and 100-degree rotation models.
• Bearings: Used to support thrust and radial loads.

Application Benefits

This rotary actuator is an ideal choice for applications requiring precise, reliable, and flexible rotary motion in a compact design, even in potentially dusty environments.
