Ball joint end - NBTSFI4500

Ball joint end - NBTSFI4500

Type Rod end
Inner diameter 22.1 mm
Manufacturer article number: NBTSFI4500
Model: NRH224500T
Availability: Available to order
Manufacturer: --
Description and Size Chart

Description

Description of the T..FI type weldable rod end
  • The rod end is attached by welding, which allows for a solid connection to hydraulic cylinders.
  • The rod end is made of C40 steel, which is a strong and durable material, ensuring that the rod end operates reliably even under heavy load.
Size chart of the T..FI type weldable rod end

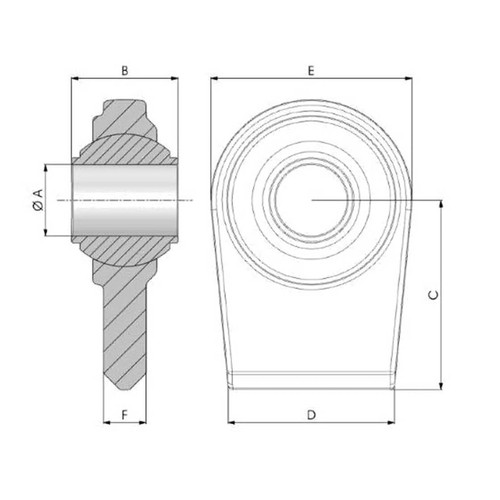

Size drawing of the T..FI type weldable rod end

Click on the article number to view the price and stock availability of the selected product.

Article number A B C D E F kg
NRH194499T 19 35 50 60 67 18 0,74
NRH224500T 22,1 35 50 60 67 18 0,72
NRH224505T 22,1 35 75 58 67 18 0,94
NRH284576T 28,4 45 80 70 85 18 1,44
NRH284578T 28,4 35 80 70 85 18 1,40
