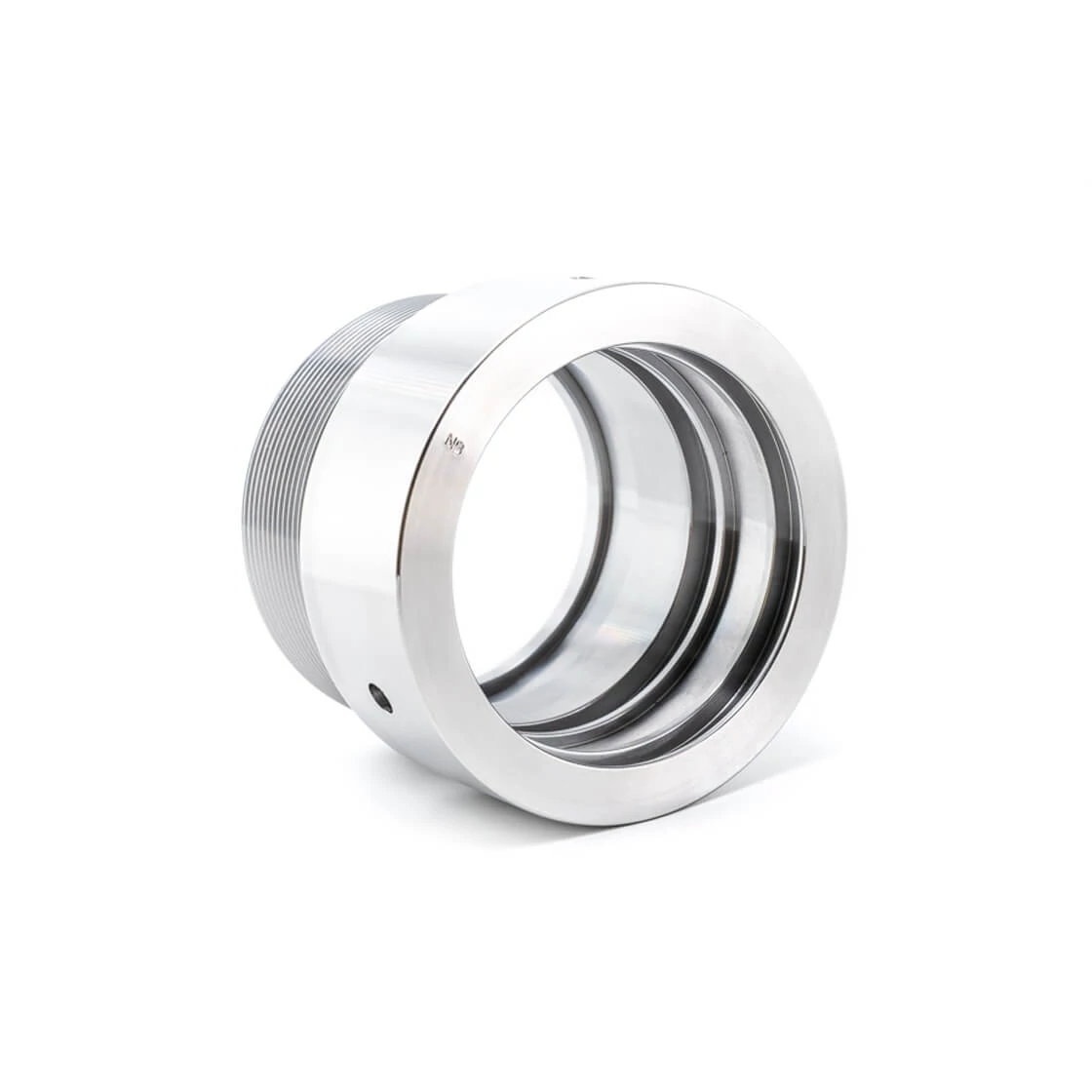

Plunger head H type - NBTTH0700800

Plunger head H type - NBTTH0700800

Maximum pressure 250 bar
Rod Guide Type For submersible piston cylinder H (short), steel version
Pipe outer diameter 94 mm
Rod diameter 70 mm
Rod Guide Length 70 mm
Pipe inner diameter 80 mm
Manufacturer article number: NBTTH0700800
Model: NV0700809H
Availability: Available to order
Manufacturer: --
Description and Size Chart

Description

Short steel version description
  • The short steel (H) version of the rod guide designed for plunger cylinders has a shorter length than the standard steel version.
  • It has the same material and pressure limits. It is made of steel and can withstand a pressure of 250 bar.
Short steel version size chart
Size drawing of the short steel rod guide

Click on the item number to view the price and stock availability of the selected product.

Item number B C D E F G kg
NV0700809H 70 94 35 70 M85x2 32 1,00
NV0800901H 80 104 40 80 M95x2 36 1,33
NV0901001H 90 114 40 80 M105x2 36 1,34
NV1001101H 100 124 50 100 M115x2 45 1,92
