Description
LG Series Visual Level Indicators

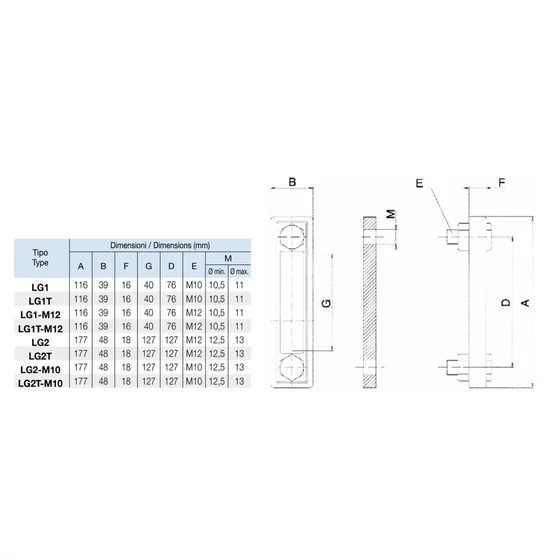

The LG series visual level indicators, with or without a thermometer, are made of steel and supplied with a Buna-N oil seal. They are mounted on the exterior of oil and fuel tanks. The "D" distance shown in the relevant table indicates the spacing between the mounting holes, which have a diameter of "M". The level indicator with built-in thermometer ("T" version) allows monitoring of the fluid temperature in the oil tank.
Technical Specifications
Materials
- Steel body and "trogamid" protective glass
- Zinc-coated steel mounting screws
- Buna-N oil seal
Temperature Range
From -20°C to +80°C
Maximum Operating Pressure
1 bar
Screw Tightening Torque
4 Nm

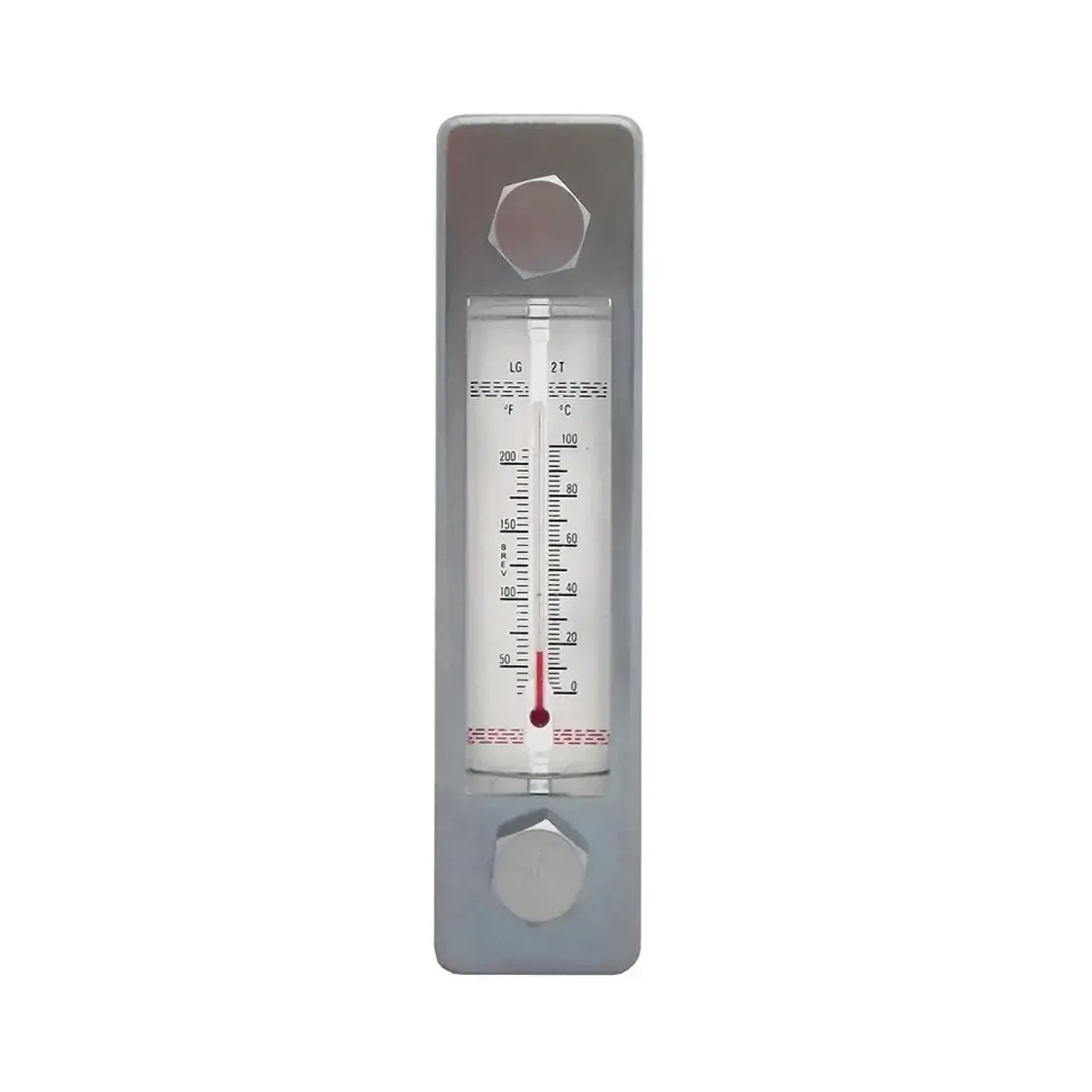

Thermometer
Built-in thermometer bulb in the level indicator
Thermometer in Celsius and Fahrenheit
- LG1T: from 0°C to +80°C (32°F to 176°F)
- LG2T: from 0°C to +100°C (32°F to 212°F)
