Description

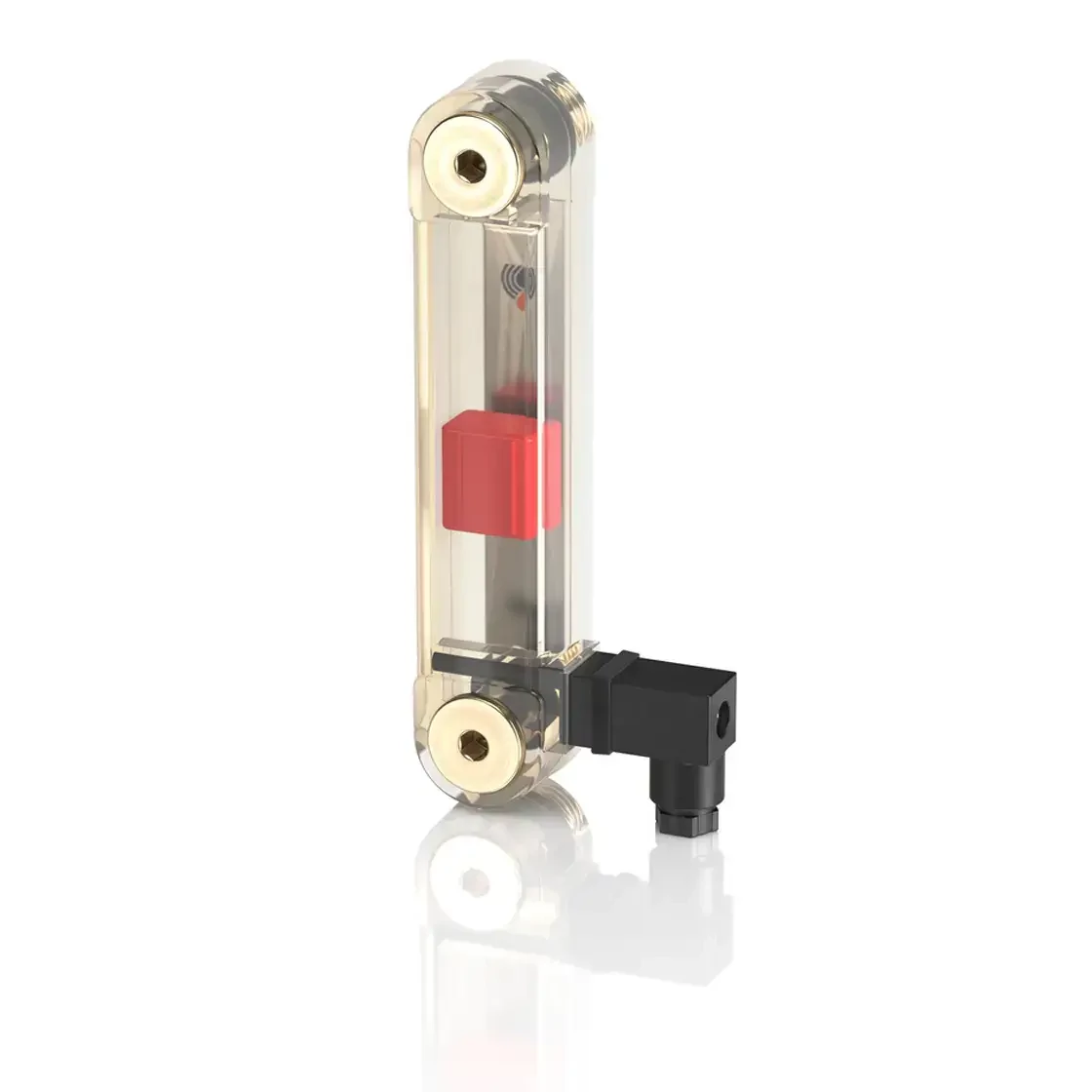

Electrical Oil Level Indicators
The LVK is a series of electrical and visual fluid level indicators designed to monitor the liquid level inside tanks. They can be mounted directly to the side of the tank. As the fluid level changes, a float element moves inside the indicator housing.
Available Features:
- Various threaded connection options
- Three different sizes to fit any tank
- Thermometer, thermostat, or PT100 for fluid temperature monitoring
Common Applications:
- Hydraulic systems
- Mobile machines
- Industrial equipment
Materials
- Head: Polyamide
- Screws: Nickel-plated brass (standard), AISI 314 (optional)
- Seal: NBR (standard), FPM (optional)
- Float element: Polyamide
- Temperature sensor: Screw + thermometer
Temperature
-20 °C to +80 °C

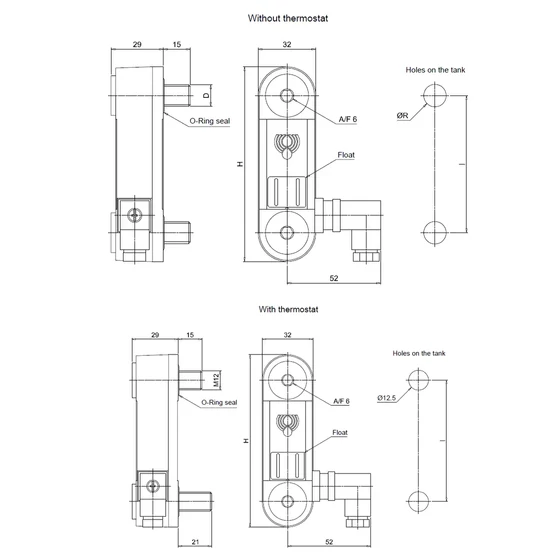

| Size | H (mm) | I (mm) |
|---|---|---|
| 10 | 108 | 76 |
| 20 | 159 | 127 |
| 30 | 286 | 254 |
| Connection | D (mm) | ⌀R (mm) |
|---|---|---|
| M10 | M10 | 10.5 |
| M12 | M12 | 12.5 |
