Description
High Pressure Filters
- Type: In-line
- Maximum operating pressure: Up to 42 MPa (420 bar)
- Flow rate: Up to 250 l/min
The FMM is a versatile high-pressure filter series designed to protect sensitive components in high-pressure hydraulic systems, especially in mobile machinery. These filters connect directly to the system lines through hydraulic connections.
Available Features:
- Female threaded connections: Up to 1 1/4", maximum flow rate 250 l/min.
- Fine filtration rating: To improve system cleanliness level.
- Bypass valve: To relieve excessive pressure drop across the filter medium.
- Low collapse filter element "N": For use with filters equipped with a bypass valve.
- Low collapse filter element with external support "R": To protect the filter element from back pressure caused by the check valve in filters with a bypass valve.
- High collapse filter element with external support "S": To protect the filter element from back pressure caused by the check valve in filters without a bypass valve.
- Visual, electrical, and electronic differential clogging indicators.
General Applications:
- Agricultural machinery
- Mobile machinery
Filter Housing Materials
- Head:

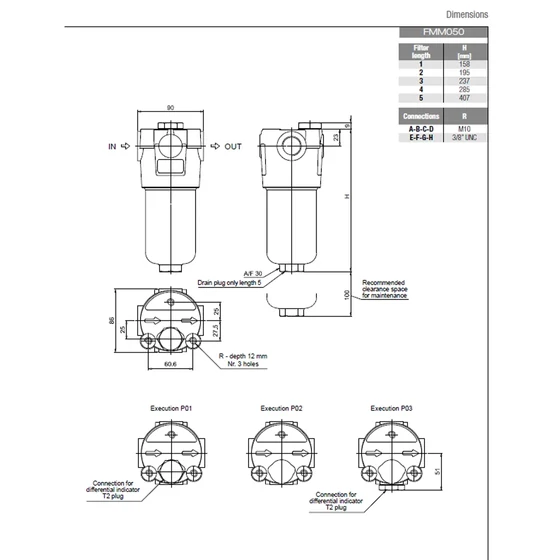

- Phosphated cast iron: FMM 050
- Painted cast iron: FMM 150
- Housing: Phosphated steel
- Bypass valve: Steel
Pressure
- Test pressure: 63 MPa (630 bar)
- Burst pressure: 126 MPa (1260 bar)
- Pressure pulsation fatigue test: 1,000,000 cycles between 0 and 42 MPa (420 bar)
Bypass Valve
- Opening pressure: 600 kPa (6 bar) ±10%
- Other opening pressures available on request.
Δp Element Type
- Microfiber filter elements - N-R series: 20 bar
- Microfiber filter elements - S series: 210 bar
- Wire mesh filter elements - N series: 20 bar
- Fluid flow through the filter element: Outside to inside (OUT to IN)
Seals
- Standard: NBR (A series)
- Optional: FPM (V series)
Temperature
- From -25 °C to +110 °C
Connections
- In-line Inlet/Outlet
Note
- FMM filters are designed for vertical installation.
