Description
Low and Medium Pressure Filters
- Maximum operating pressure: Up to 1.6 MPa (16 bar)

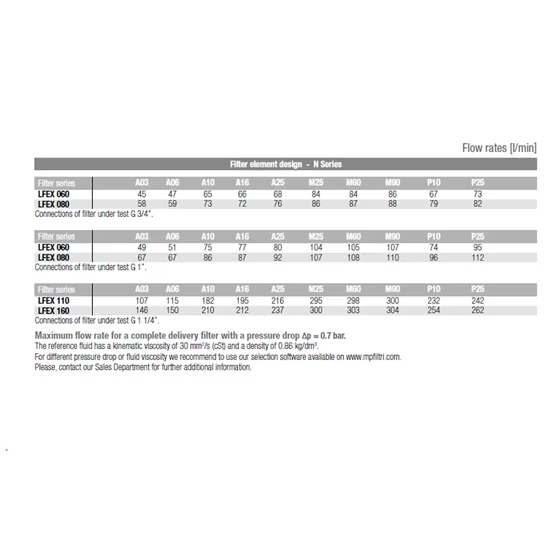

- Flow rate: Up to 300 l/min

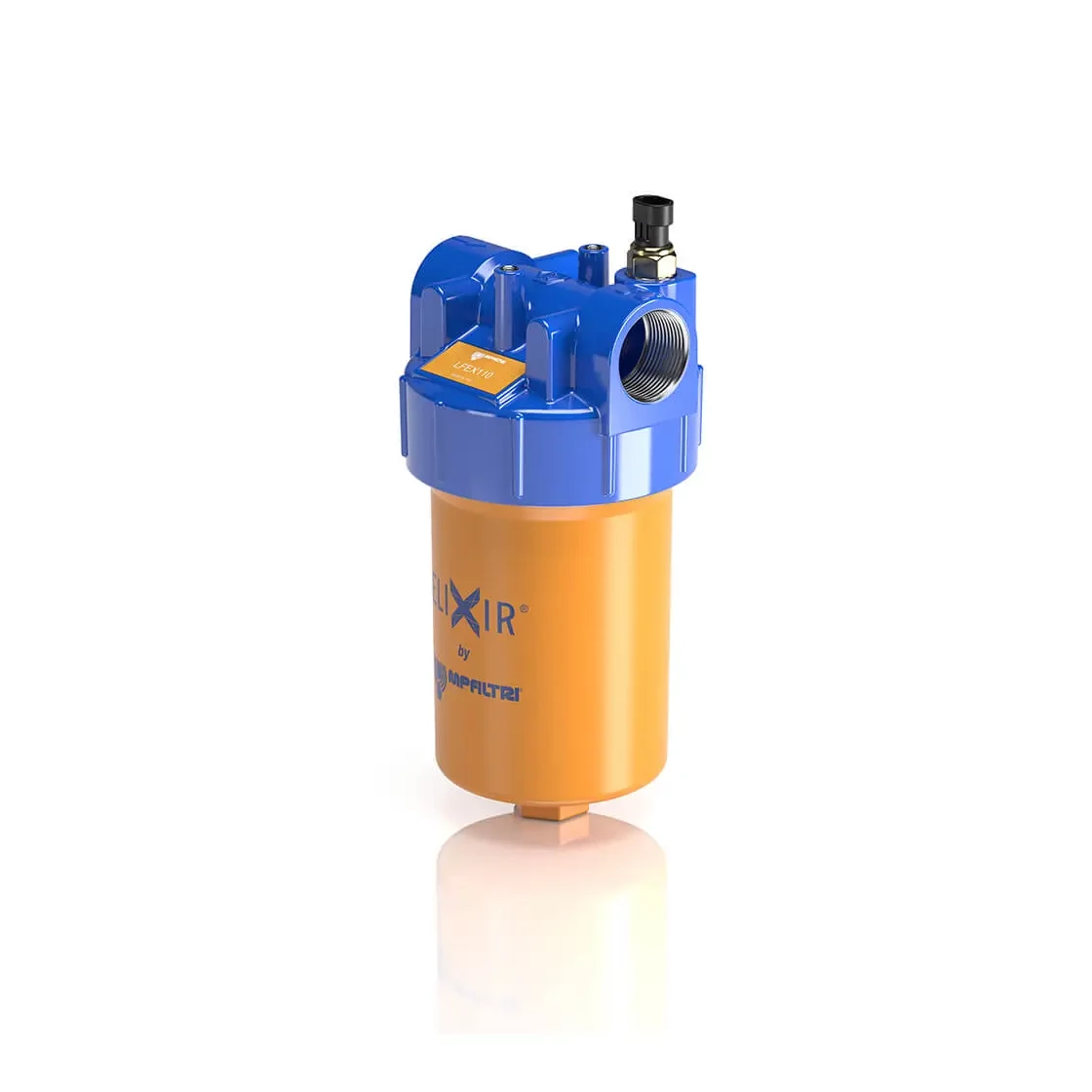

The LFEX is a low-pressure filter series designed to protect sensitive components in low-pressure hydraulic systems. They are also suitable for offline filtration in smaller tanks. These filters connect directly to system lines via hydraulic fittings.
Available features:
- Female thread connections: Up to 1 1/4", and SAE connections up to 1 5/8", with a maximum flow rate of 300 l/min.
- Fine filtration rating: For improving system cleanliness levels.
- Water removal elements: For removing free water from hydraulic fluid.
- Bypass valve: To relieve excessive pressure drop across the filter media.
- NEW visual and electrical differential clogging indicators: In a compact design.
- MYclean interface connection to the filter element: Prevents use without original components.
- External protective cover: Optimizes flow through the filter element and protects the element's performance against improper handling.
General applications:
- Supply lines in any low-pressure industrial equipment or mobile machines.
Filter housing materials
- Head: Aluminum
- Bypass valve: Nylon - Steel
- Bowl: Nylon
Bypass valve
- Opening pressure: 350 kPa (3.5 bar) ±10%
Δp element type
- Microfiber filter elements - N series: 8 bar
- Flow direction through the filter element: From outside to inside (OUT to IN)
Seals
- Standard: NBR (A series)
Temperature
- From -25 °C to +110 °C
Note

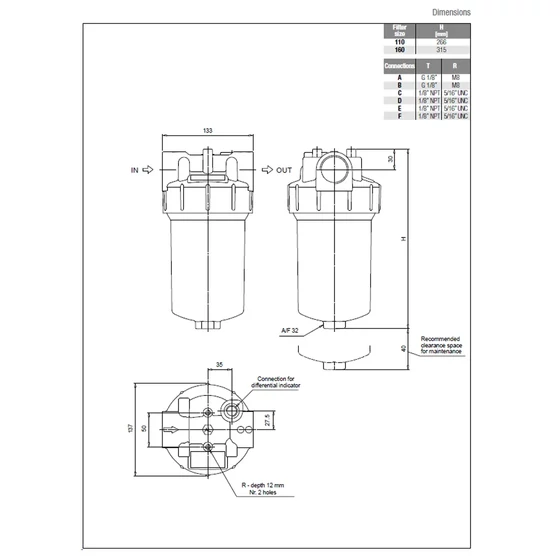

- LFEX filters are designed for vertical installation.
