Description
OPERATING CONDITIONS
- Filter Pressure
- Operating Temperature: -25 °C to +110 °C
- Compatibility with Hydraulic Fluids: According to ISO 2943
- Maximum Operating Pressure: 0.8 MPa (8 bar)
- Burst Pressure: 1.0 MPa (10 bar)
- Compatible with mineral oils: HH, HM, HR, HV, HG (according to ISO 6743/4)

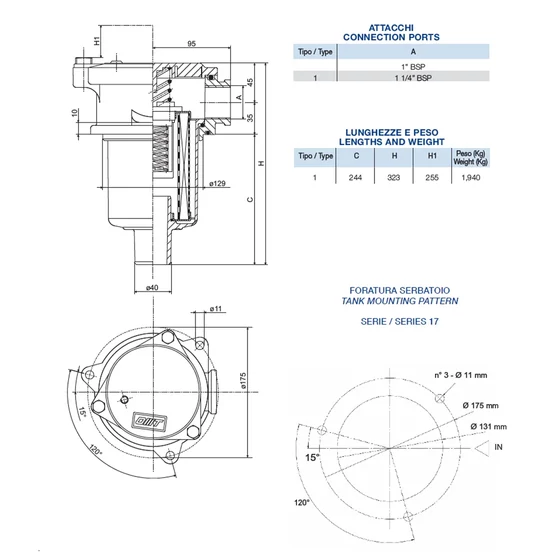

FILTER HOUSING
- Head/Cover: Cast aluminum
- Filter Bowl:
- OMTF09-11-17: Glass fiber reinforced nylon
- OMTF22: Cataphoresis-treated steel
- Connection Ports: 1/2" and 2" BSP
- Seals: N - Nitrile (Buna-N)

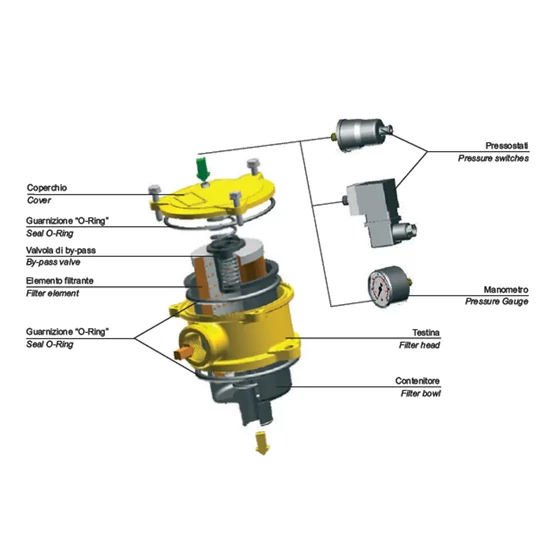

FILTER ELEMENT
- End Caps: Zinc-coated steel
- Support Tube: Zinc-coated steel
- Filter Media: Paper, inorganic glass fiber, metal mesh (AISI304)
- Bypass Valve Setting: 0.17 MPa ± 10% (1.7 bar)
