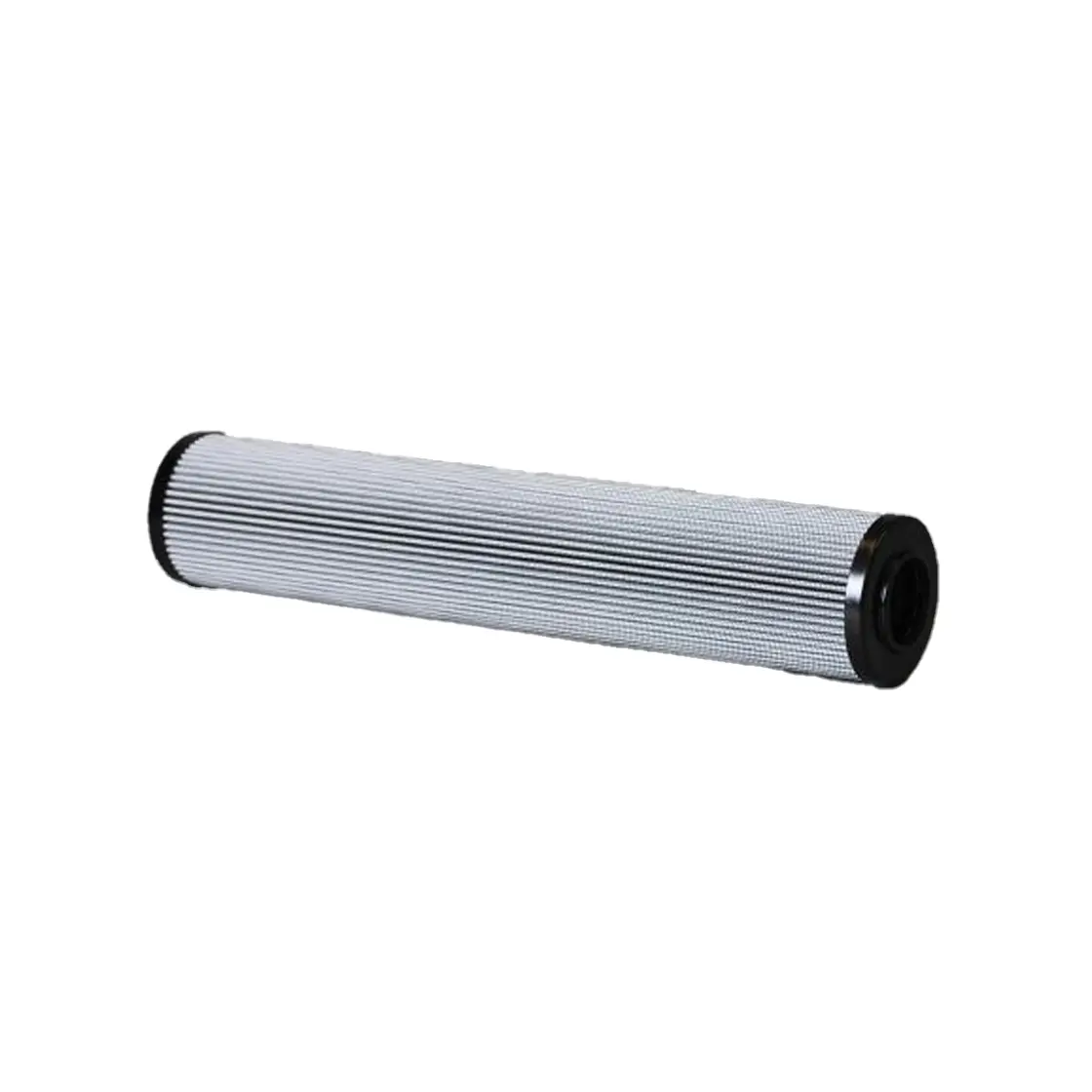

Pressure line filter element - DIN 24550 - ABZFE-N0400-10-1X/M-DIN/R901025365

Pressure line filter element - DIN 24550 - ABZFE-N0400-10-1X/M-DIN/R901025365

Manufacturer article number: R928006917
Model: HFNFDN0400BRA10A
Availability: 1 pcs in stock
Manufacturer: Rexroth

Description

  • OEM Item No.: ABZFE-N0400-10-1X/M-DIN
  • Efficiency: Beta 12{c} >= 1000 (ISO 16889 & DFE)
  • Crash pressure: 450
  • Maximum temperature: 107.222°F
  • Glue: Epoxy
  • Bypass: None
  • End cap: Corrosion resistant CS/AL
  • Flow Direction: Out/In
  • Filter Media Type: Microglass supported on both sides
  • Recommended replacement (psid): 25
  • Outer diameter: 7.874 cm
  • Inner diameter: 4.064 cm
  • Length: 40.005 cm
  • Sealant and type: Buna O-ring
  • Quantity per carton: 1
  • Weight: 1.36078 kg
