Description
Maximum Operating Pressure: Up to 800 kPa (8 bar)
Flow Rate: Up to 750 l/min

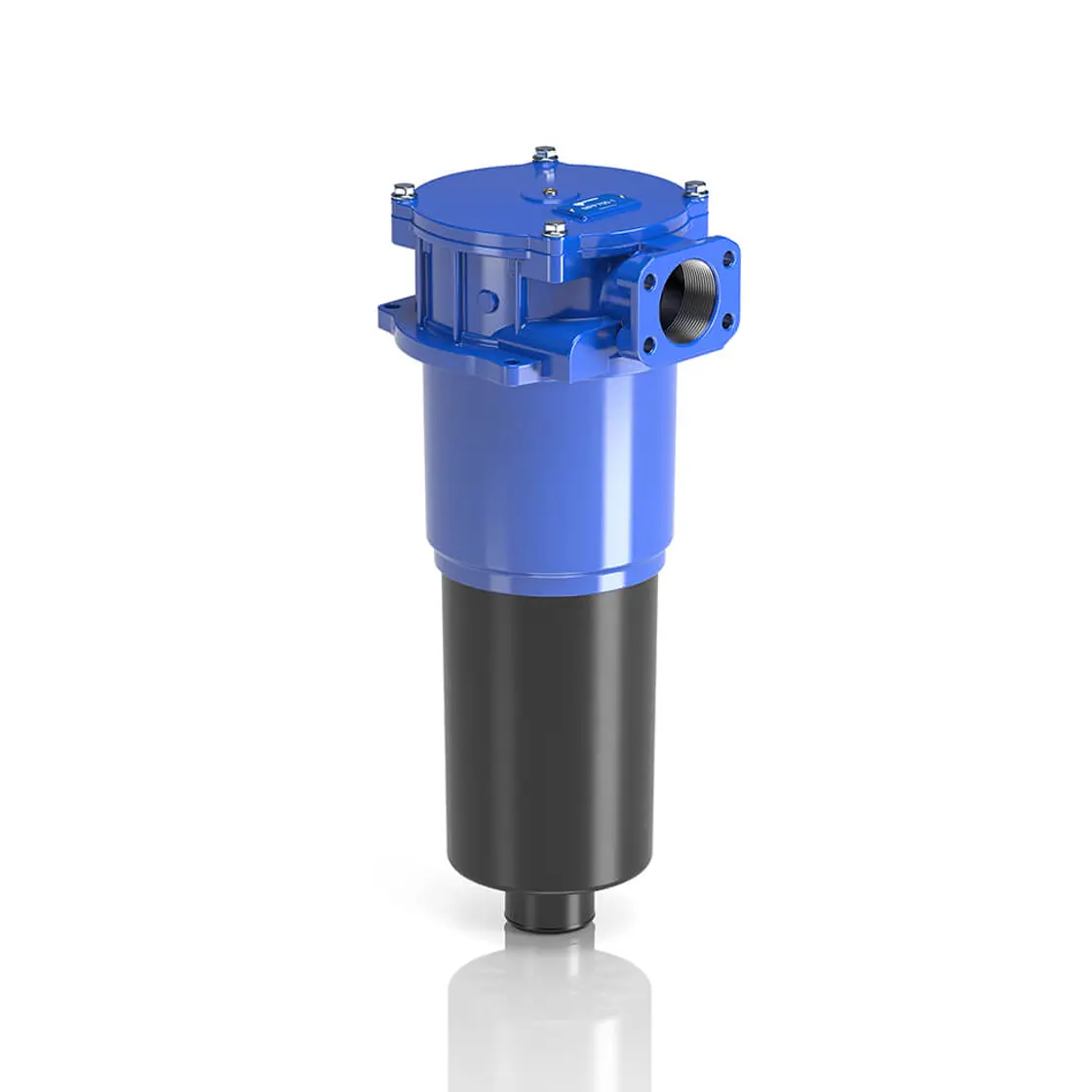

MPF Series: Return filters for protecting the tank against system contamination.
They can be mounted directly on the tank in immersed or semi-immersed position.
The filter outlet must always remain submerged in fluid to prevent air ingress or foaming in the tank.
Available Features:
- Internal threaded connections up to 2" and flanged connections up to 2", with maximum flow rate of 750 l/min
- Multiple connection options for attaching several return or drain lines
- Fine filtration grade to ensure good cleanliness level in the tank
- Bypass valve integrated in the filter element to reduce flow resistance through the filter media
- 2, 3 or 4 mounting holes for compatibility with different tank surfaces
- O-ring or flat seal for various tank surface types
- Dipstick for checking fluid level in the tank (sold separately)
- Extension tube for deep tanks (sold separately)
- Diffuser to reduce air ingress, foaming, and noise (sold separately)
- Filler plug allowing clean fluid to be filled into the tank without additional connections
- Visual, electrical and electronic clogging indicators
Typical Applications:
- Light industrial equipment
- Mobile applications
Filter Housing Materials:
- Head: Aluminum
- Cover:
- Nylon: MPF 020-030-100-104-110
- Aluminum: MPF 181-182-184-191-192-194-400-410-450-451-750
- Tank: Nylon
Bypass Valve:
- Opening pressure 175 kPa (1.75 bar) ±10%
- Opening pressure 300 kPa (3 bar) ±10%
Δp Element Type:
- Microfiber filter elements - H series: 10 bar
- Fluid flow through the filter element: From outside to inside
Seals:
- Default NBR (A series)
- Optional FPM (V series)
Temperature Range: -25 °C to +110 °C
Note:
MPF filters are designed for vertical installation.
