Valve - 103849

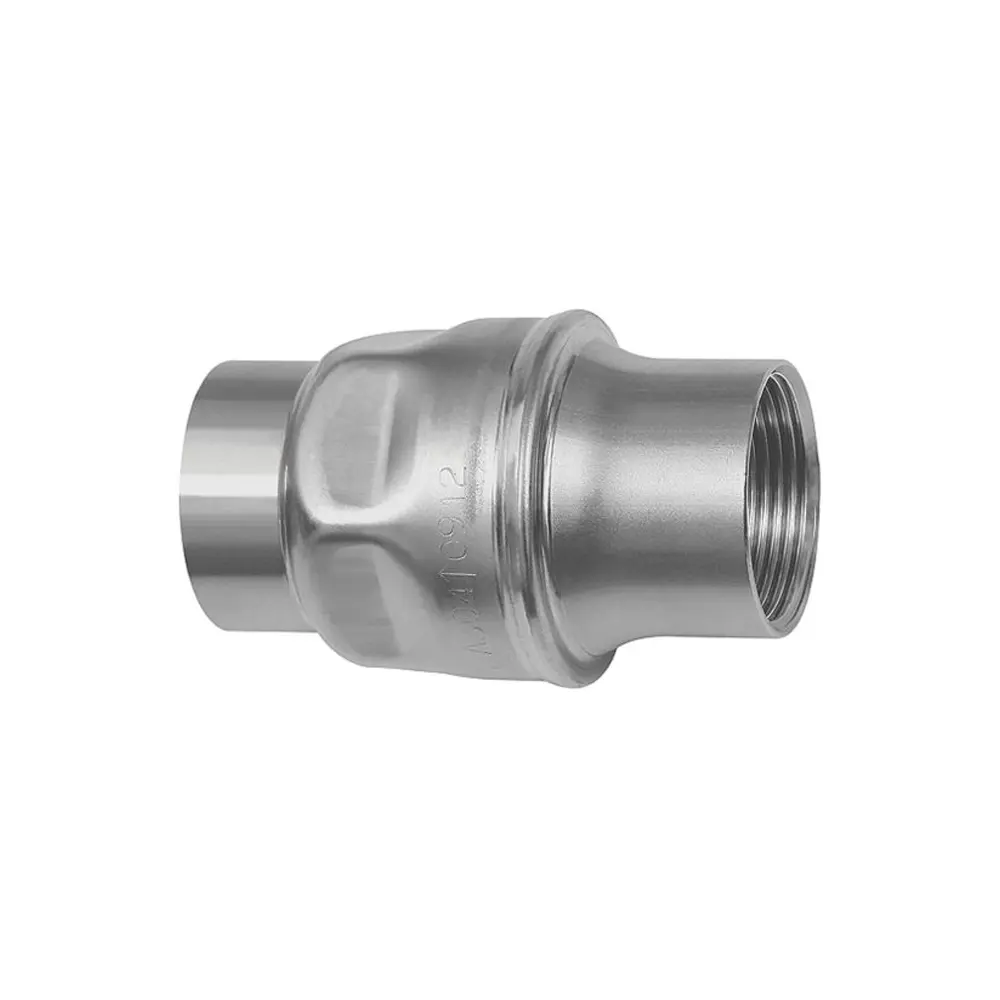

Check valve, Lightweight construction, Stainless steel, G 1 1/2

This lightweight construction stainless steel check valve made from 1.4301 material features a full bore and very low opening pressure. It requires no maintenance and is suitable for a wide range of media including compressed air, water, neutral gases, gaseous and liquid non-corrosive media, and oils.

Technical Specifications

• Article No.: 103855
• Type No.: 228.112-ES
• Housing: Stainless steel 1.4301
• Sealant: FKM
• Max. operating pressure: 16 bar
• Min. opening pressure: 0.03 bar
• Min. operating temperature: -20 °C
• Max. operating temperature: 150 °C
• Spring: Stainless steel 1.4301
• Country of origin: IT
• Thread: G 1 1/2

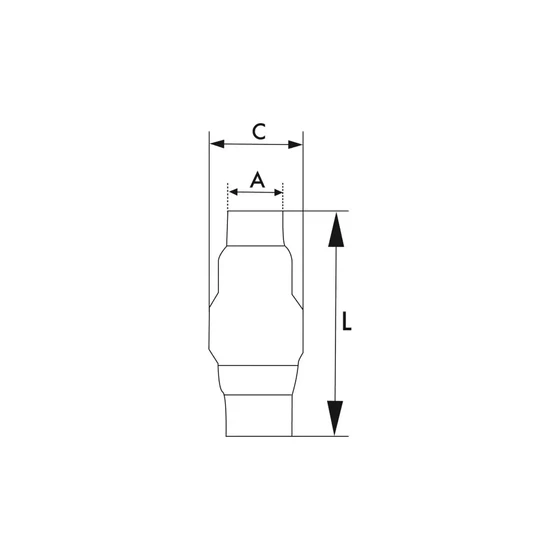

• Dimensions:
  • A: 51.0 mm
  • C: 78.0 mm
  • L: 114.0 mm
• REACH SVHC1 substance name: no
• CAS no. SVHC 1: no CAS No.
• RoHS materials notice: Rohs compliant
• REACH Info: no SVHC substance included
• Class name: STAINLESS_STEEL
• Customs tariff number: 84813091
