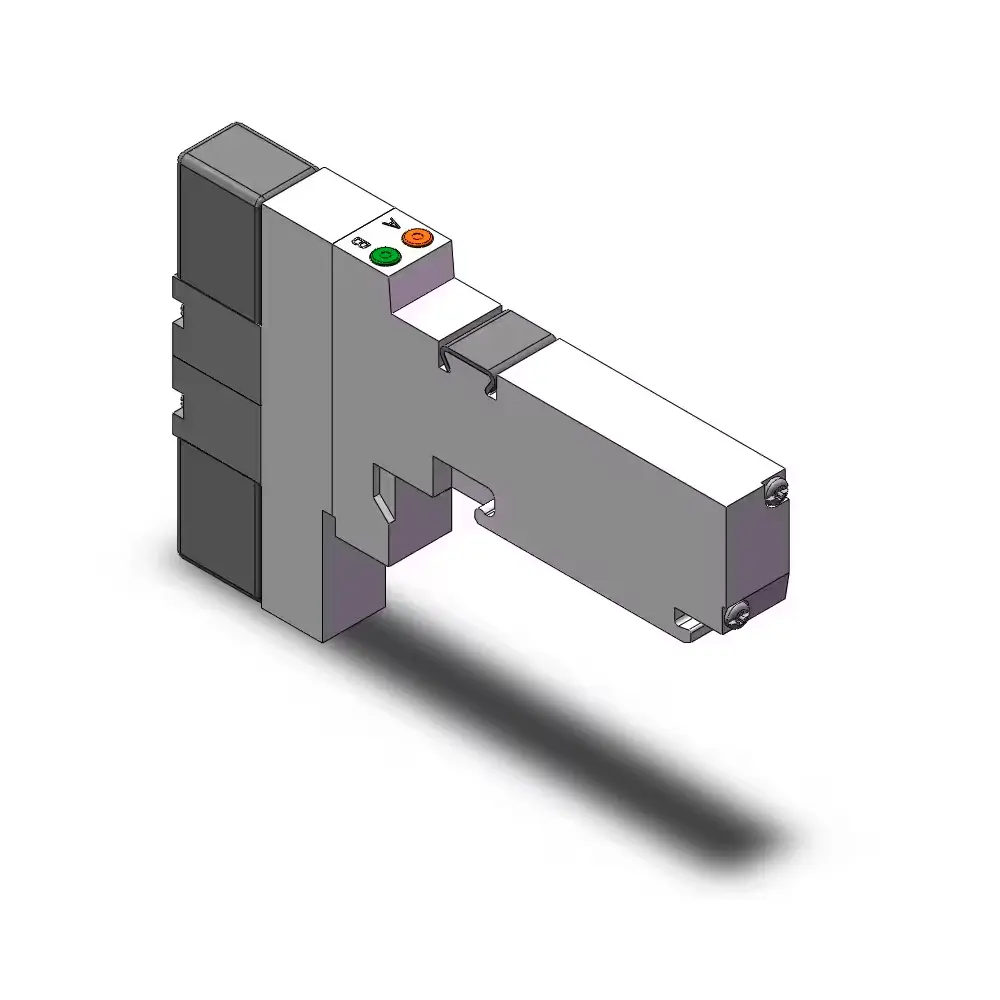

Valve - VQ1A01BN-51-Q

SMC VQ Series Valves

SMC VQ series valves are ideal for applications demanding high speed, frequent operation, stable response time, and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

Technical Specifications

• Fluid: Air / inert gas
• Operating pressure range:
  • 0.1 MPa - 0.7 MPa
  • (High pressure style: 0.8 MPa)
• Effective area mm² (Cv):
  • Metal seal: 3.6 (0.2)
  • Rubber seal: 5.4 (0.3)
• Coil rated voltage:
  • 12, 24 VDC
  • 100, 110, 200, 220 VAC
• Response time (ms) (standard 1W, H 1.5W):
  • 2 position metal seal: 12 or less
  • 2 position rubber seal: 15 or less
  • 3 position metal seal: 20 or less
  • 3 position rubber seal: 25 or less
• Ambient & fluid temperature: -10 to 50°C
