Description
IFE Series Data Table
| Material | Nickel-plated brass |
|---|---|
| Max. operating voltage | 220 V – 50 Hz |
| Current intensity | 0.5 A (resistive) |
| Sealing material | NBR |
| Contact | NO |
| Electrical connection | PG09 |
| Electrical protection | IP65 |
| Switching voltage DC / AC | DC 20 W – AC 20 VA |
| Max. flow rate | 60 l/min – H2O |
| Max. pressure | 50 bar |
| Operating temperature | -10°C to +80°C |
| Differential | ~ 45% flow rate |
| Threads | G1/8″ – G1/4″ – G3/8″ – G1/2″ – G3/4″ – G1″ |
| Installation | Vertical |

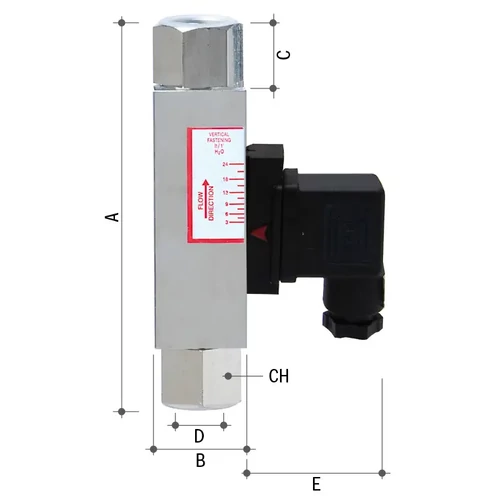

| Type | Operating range (LPM - H2O) | A | B | C | D GAS | E | CH | Weight |
|---|---|---|---|---|---|---|---|---|
| IFE0.5R2.5 | 0.1 - 2.5 | 89 | 20 | 13,5 | G1/8” | 40 | 15 | 0,215 |
| IFE1R3 | 0.3 - 3 | 89 | 20 | 13,5 | G1/8” | 40 | 15 | 0,215 |
| IFE2R9 | 2 - 9 | 93 | 22 | 13,5 | G1/4” | 40 | 17 | 0,260 |
| IFE3R18 | 3 - 18 | 104 | 24 | 15,5 | G3/8” | 40 | 20 | 0,330 |
| IFE4R24 | 3 - 24 | 115 | 28 | 18,5 | G1/2” | 40 | 24 | 0,485 |
| IFE5R35 | 6 - 35 | 132 | 32 | 22,5 | G3/4” | 40 | 32 | 0,750 |
| IFE6R60 | 15 - 60 | 157 | 45 | 24,5 | G1” | 40 | 40 | 1,570 |
