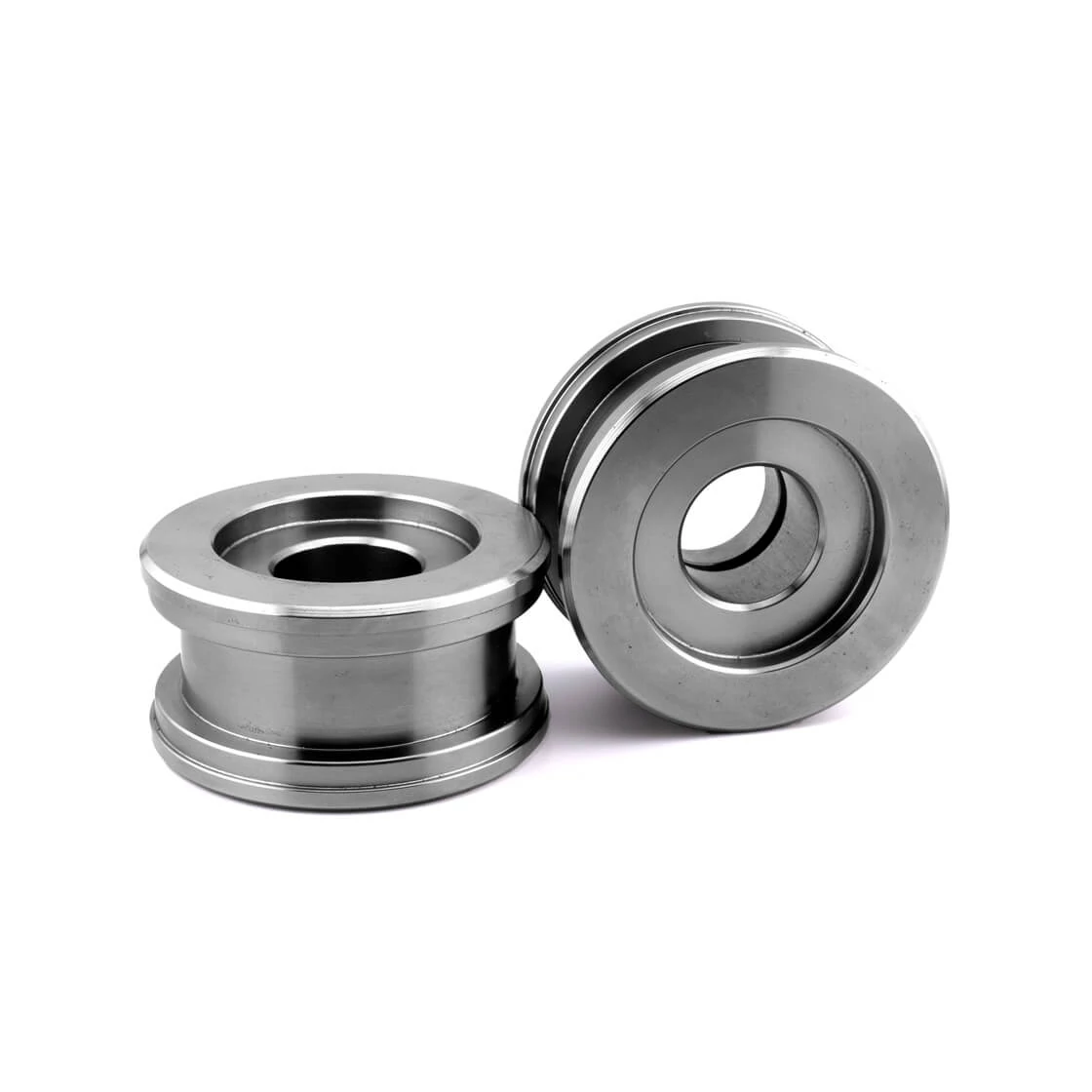

Piston short - NBPB00100035

Piston short - NBPB00100035

Piston diameter 100 mm
Piston type Short
Maximum pressure 200 bar
Bore diameter 35 mm
Piston width 40 mm
Manufacturer article number: NBPB00100035
Model: ND100035B0
Availability: Available to order
Manufacturer: --
Description and Size Chart

Description

Description of the short type piston
  • Short type pistons are characterized by a shorter travel distance within the cylinder compared to their longer counterparts. This allows the cylinder to perform more cycles in the same amount of time.
  • Thanks to their compact size, they are suitable for use in areas where space is limited.
  • Short stroke pistons are defined as a family of pistons where the piston stroke is a fraction of the piston diameter. Technically, this is defined as a stroke-to-diameter (s/d) ratio of less than 1.0.
  • Short stroke pistons offer excellent clamping force ratio and high force in a small size. Due to the special piston shape (oval piston), they are distortion-resistant and ideal for block clamping.
Size chart of the short type piston
Size drawing of the short type piston

Click on the article number to view the price and stock availability of the selected product.

Article number A B C D kg
ND040015B0 40 15 27 5 0,15
ND050021B0 50 21 30 5 0,25
ND060025B0 60 25 35 5 0,39
ND063025B0 63 25 35 5 0,46
ND065025B0 65 25 35 5 0,50
ND070025B0 70 25 35 5 0,63
ND080028B0 80 28 40 6 0,97
ND090035B0 90 35 40 6 1,21
ND100035B0 100 35 40 6 1,62
