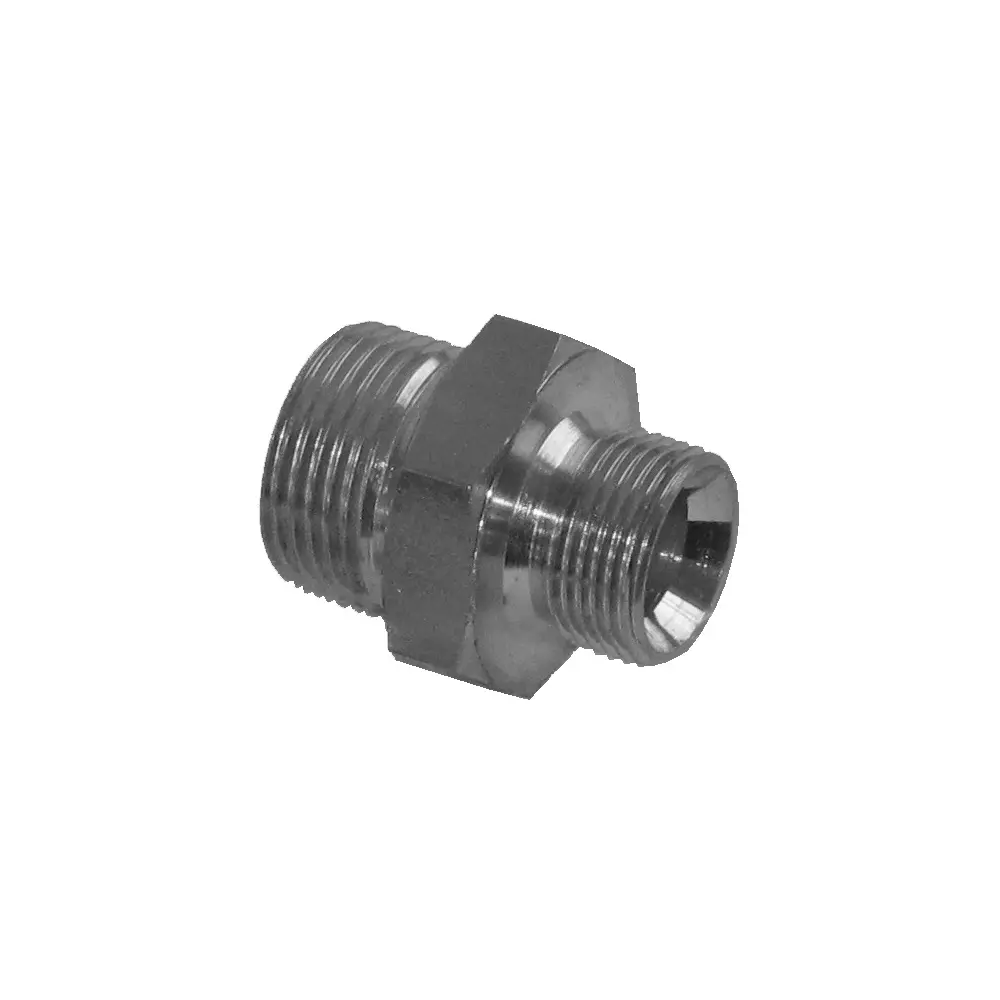

Tube Coupling (AD-BSP) - (K-K) - G5/4
14.7836 € + VAT
Qty:pcs
Add to Cart

Tube Coupling (AD-BSP) - (K-K) - G5/4" - G6/4"

14.7836 € + VAT
Qty:pcs
Add to Cart

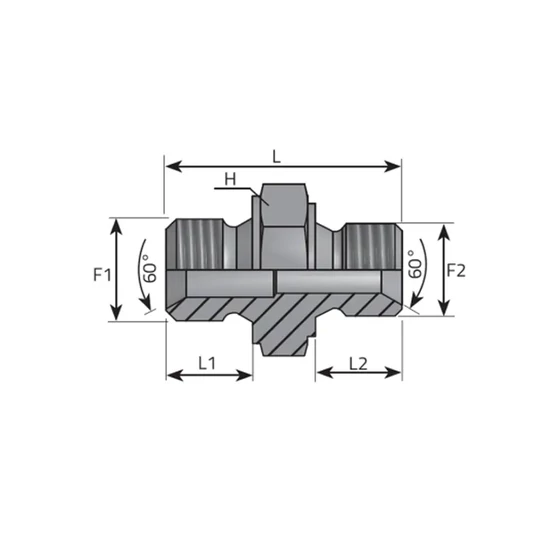

Material Steel
Connection 1 BSP external thread
Connection 2 BSP external thread
Connection F1 (inch) 1.1/2''
Connection F2 (mm) 1.1/4''
Connector sub-type AD-BSP (K-K)
Connector type Straight connector - AD
Surface Galvanic coating
H (mm) 55
L1 (mm) 22
L2 (mm) 20
L (mm) 57
Structural form Straight adapter
Sealing 1 60° internal cone, flat gasket
Sealing 2 60° internal cone, flat gasket
Operating pressure (bar) 125
Operating pressure (PSI) 1813
Manufacturer article number: ARGG2420
Model: HQCCK20240
Availability: 11 pcs in stock
Manufacturer: Nem besorolt
