Tube Coupling - GE 06-L - NPT 1/8
0.0000 € + VAT
Qty:pcs
Notification

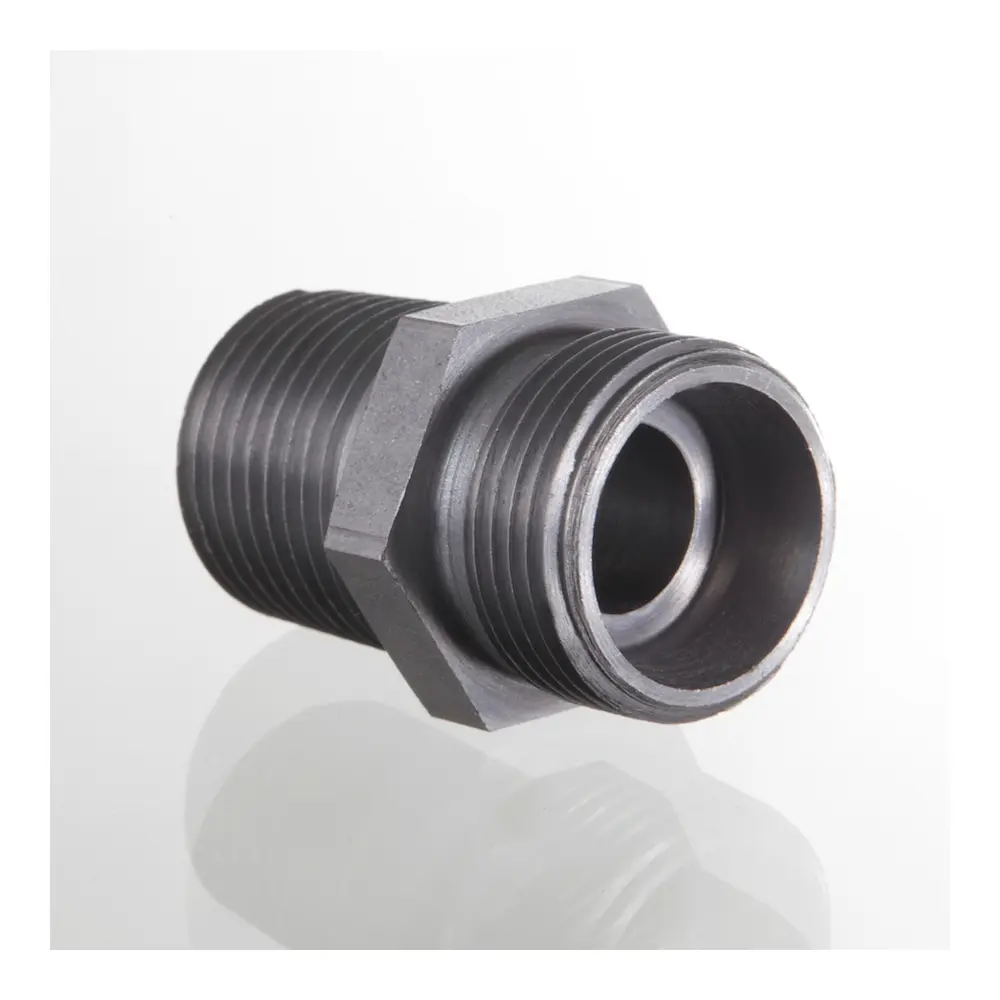

Tube Coupling - GE 06-L - NPT 1/8"

0.0000 € + VAT
Qty:pcs
Notification
Material Steel
Connection 1 NPT external thread
Connection 2 Metric external thread
Screw sub-type Metric/NPT thread - light duty design (GE-L/NPT)
Screw type Straight screw-in fitting - GE

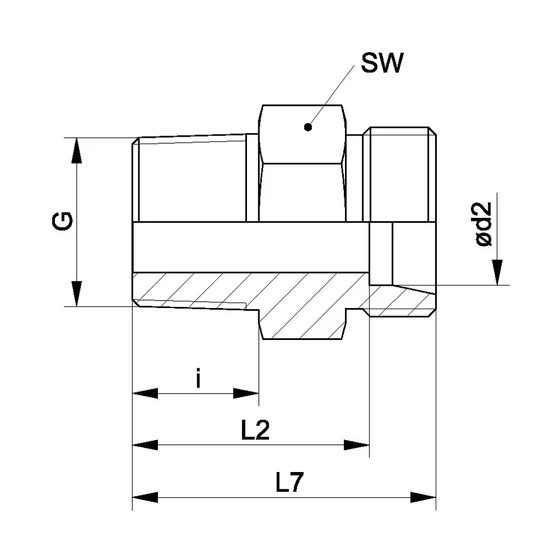

Ø d2 (mm) 6
Surface Galvanic coating
i (mm) 10
Design L
L2 (mm) 17
L7 (mm) 24
SW (mm) 12
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 Thread sealing
Sealing 2 24° internal cone
Operating pressure (bar) 315
Model: HQCGE06LN020
Availability: Available to order
Manufacturer: Nem besorolt
