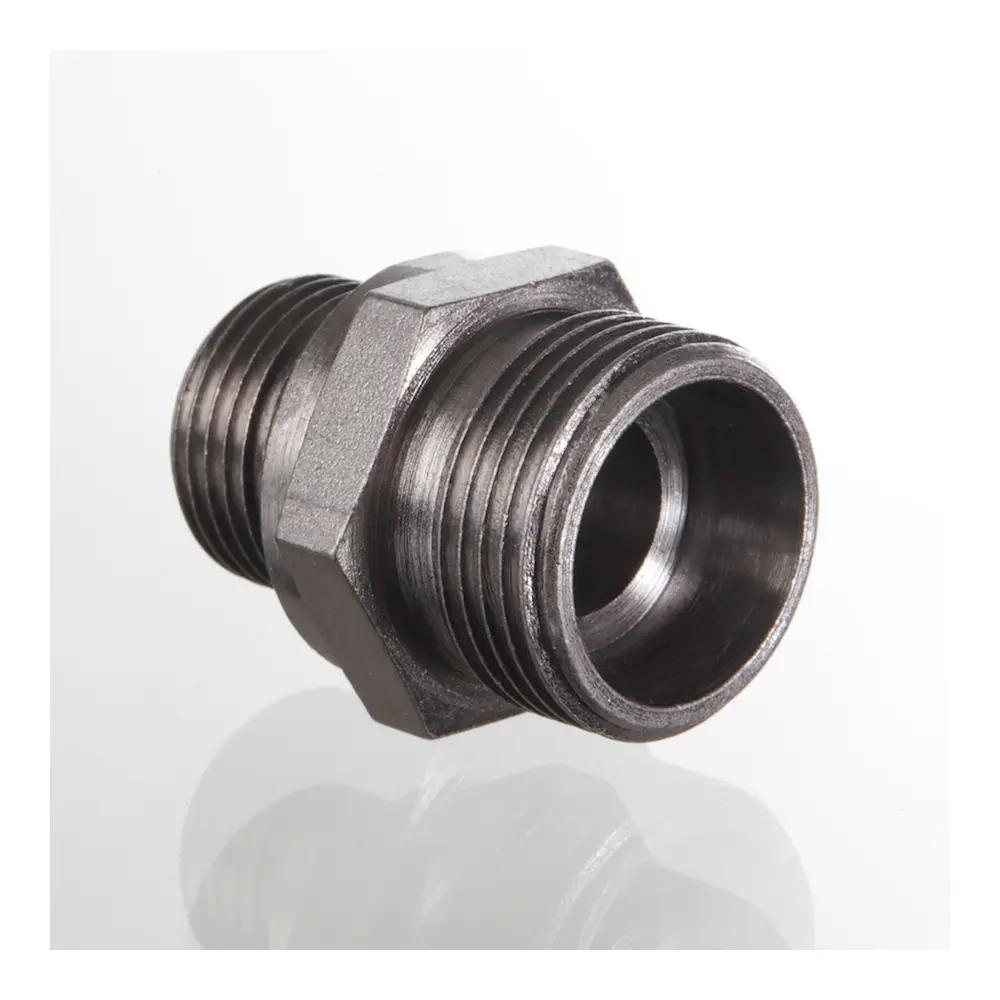

Tube Coupling - GE 06-LR
1.7540 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GE 06-LR

1.7540 € + VAT
Qty:pcs
Add to Cart

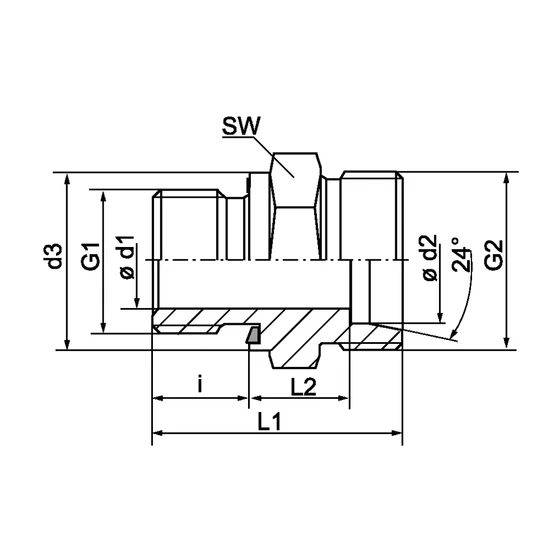

Material Steel
Connection 1 Metric BSPP thread
Connection 2 Metric external thread
Screw sub-type Metric/BSP thread - light duty design (GE-L/R)
Screw type Straight screw-in fitting - GE
Pipe size (mm) 6
Ø d2 (mm) 6
Surface Galvanic coating
i (mm) 8
Design L
L1 (mm) 23.5
L2 (mm) 8.5
SW (mm) 14
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 E-form
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: VRNW04HLED
Model: HQCGE06LR020
Availability: 90 pcs in stock
Manufacturer: Nem besorolt
