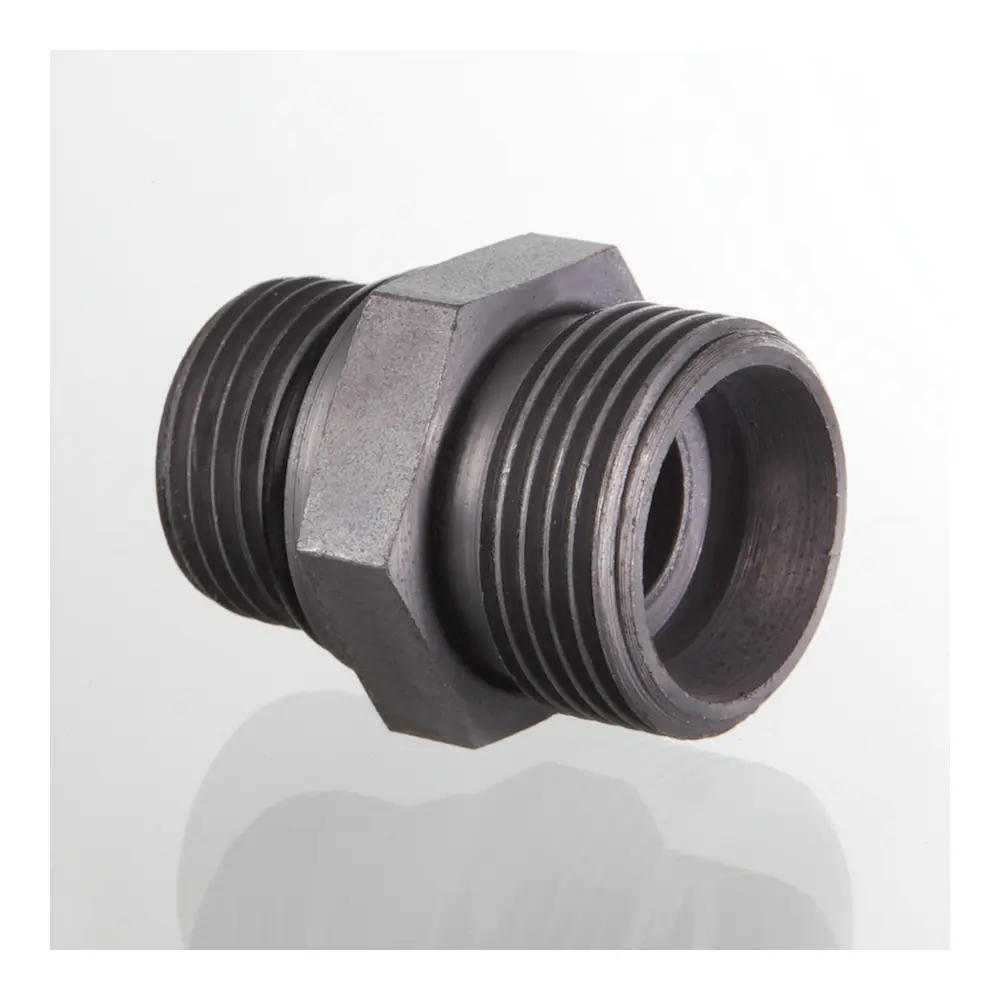

Tube Coupling - GE 08-S 1/2
10.0228 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GE 08-S 1/2"-UNF

10.0228 € + VAT
Qty:pcs
Add to Cart

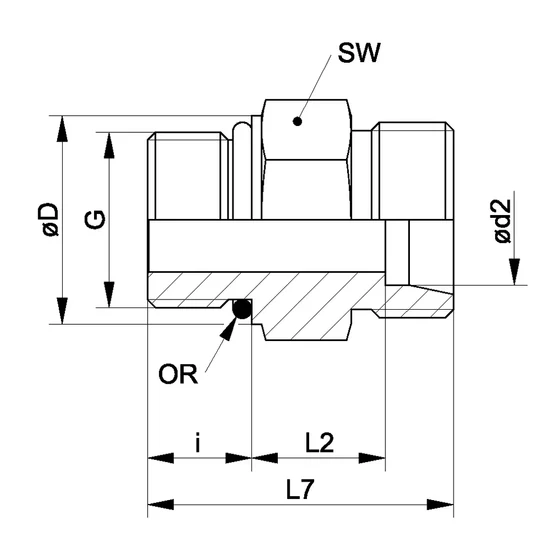

Material Steel
Connection 1 UNF external thread
Connection 2 Metric external thread
Screw sub-type Metric/UNF thread - heavy duty design (GE-S/UNF)
Screw type Straight screw-in fitting - GE
Ø d2 (mm) 8
Ø D (mm) 16.8
Surface Galvanic coating
i (mm) 9.1
Design S
L2 (mm) 14.9
L7 (mm) 31
SW (mm) 19
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 O-ring
Sealing 2 24° internal cone
Operating pressure (bar) 630
Manufacturer article number: VUNW04HS1/2
Model: HQCGE08SU050
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
