Differential indicator - DVS25HP01

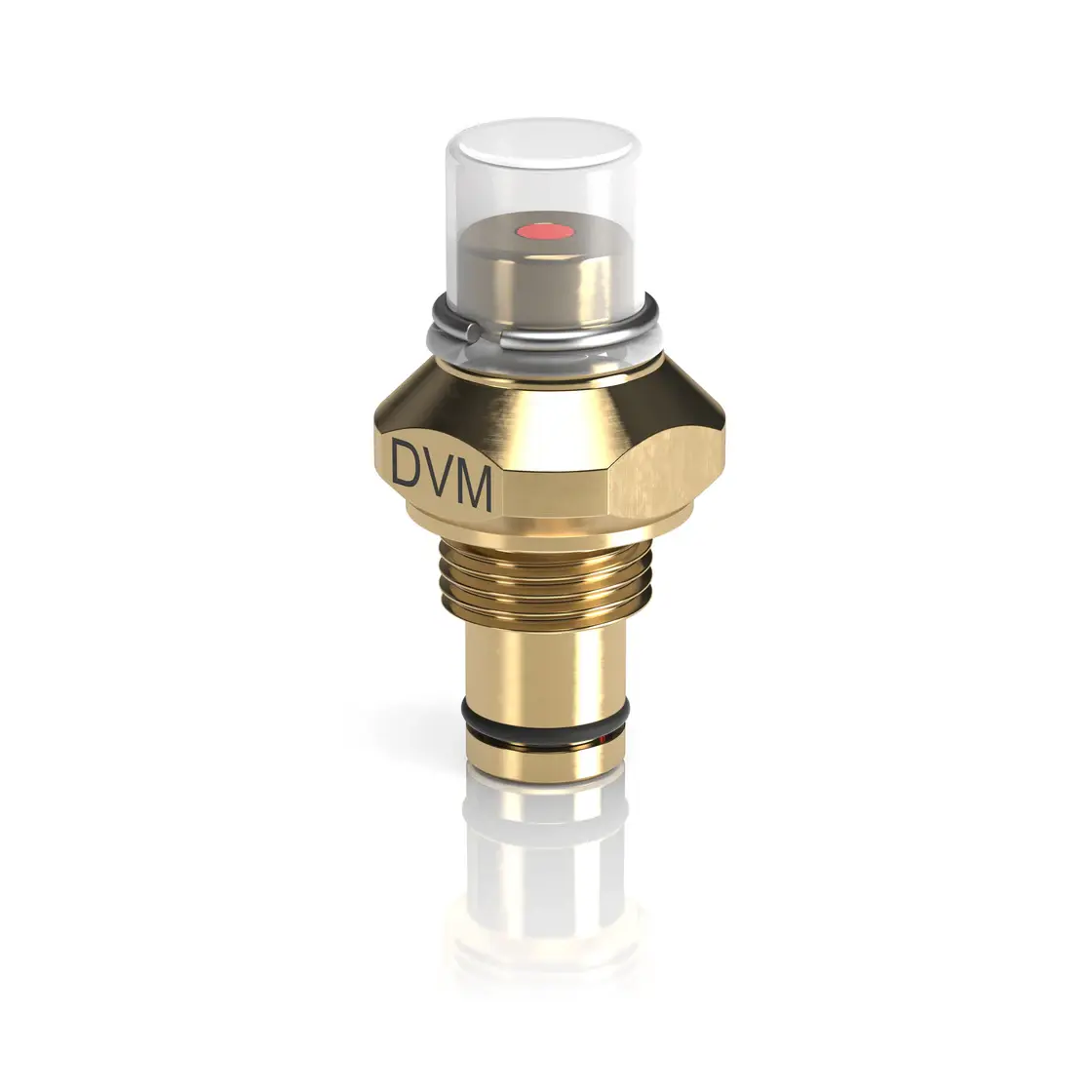

Differential indicator - DVS25HP01

Manufacturer article number: DVS25HP01
Model: HFNEVDVSMP5
Availability: 4 pcs in stock
Manufacturer: MP Filtri

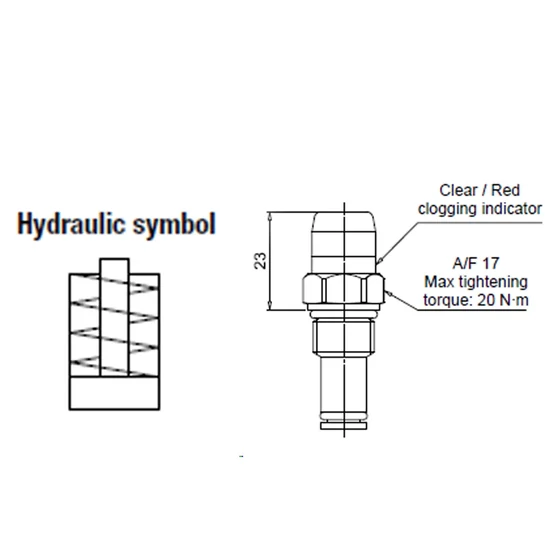

Visual Differential Indicator

  • Setting: 2.5 bar ±10%

Materials

  • Body: Brass
  • Internal Components: Brass - Nylon
  • Contacts: Silver
  • Seal: HNBR

Technical Data

  • Reset: Automatic reset
  • Maximum Operating Pressure: 16 bar
  • Test Pressure: 24 bar
  • Burst Pressure: 48 bar
  • Operating Temperature: -25 °C to +110 °C
  • Fluid Compatibility: Mineral oils, Synthetic fluids, HFA, HFB, HFC according to ISO 2943
  • Protection Rating: IP67 according to EN 60529

Description

Clog indicators are devices that check the service life of filter elements. These devices measure the pressure drop through a filter element that is connected directly to the filter housing.

These devices are activated when an increased pressure drop occurs through the filter element due to a blockage of the filter element.

Filter elements are only effective if they make full use of their contamination-absorbing capacity. This can be achieved by equipping the filter housings with clogging indicators. The indicator warns before the battery is completely clogged.

MP Filtri offers the following types of clog indicators:

  • Vacuum switches and meters
  • Pressure Switches & Gauges
  • Differential pressure indicators

These types of devices are available with visual, electrical, or both signs. An electronic differential pressure clog indicator is also available, providing both analogue 4-20 mA outputs as well as digital warning (75% blockage) and alarm (blockage) outputs.
