Description
Description

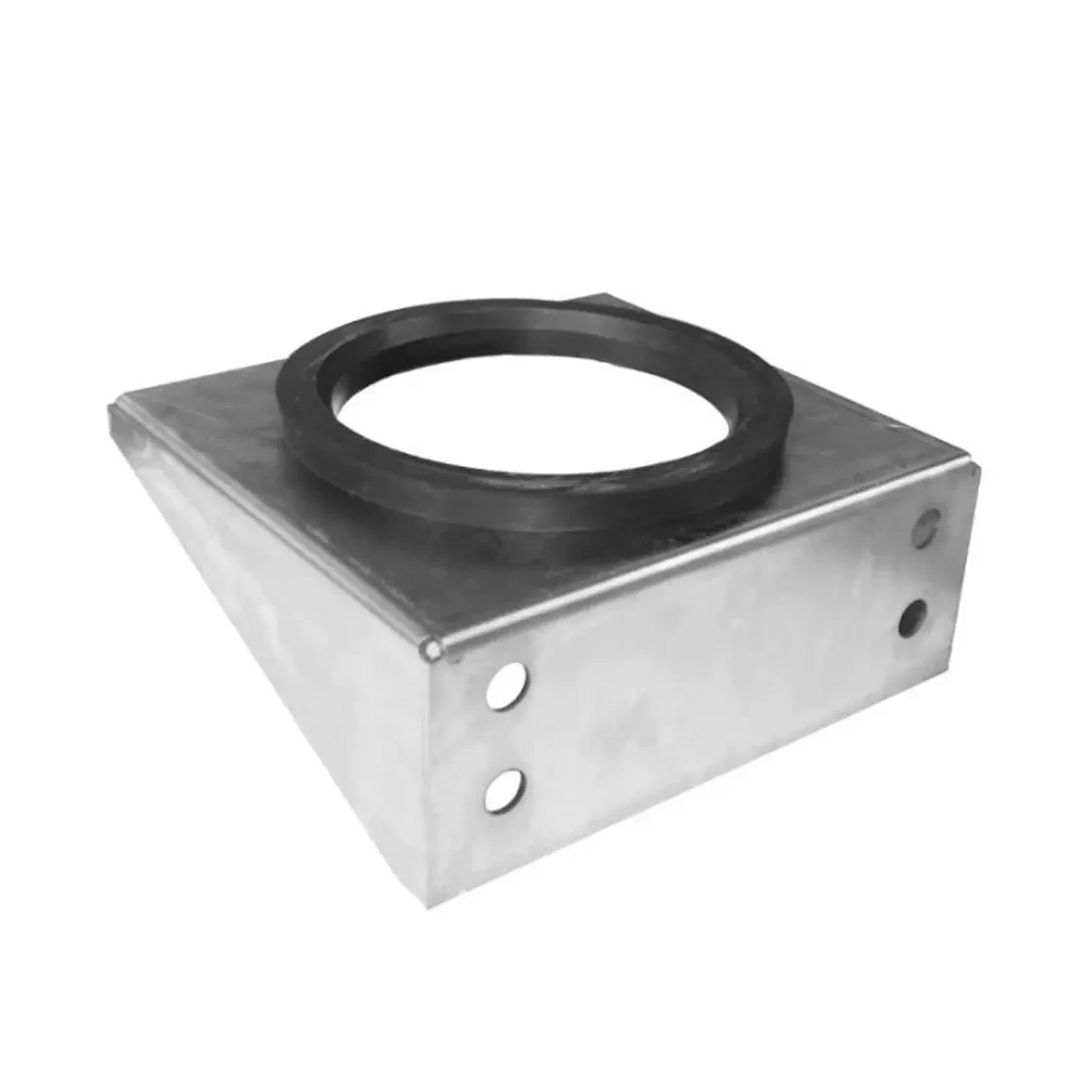

Supports can be used with all types of batteries. The safe design allows for independent installation in systems. A rubber insert is provided to reduce mechanical vibrations, compensate for manufacturing tolerances, and prevent external stresses on the connections. The supports can be easily screwed onto the system. Use is recommended with a support and retaining ring along with one or two clamps or a U-bolt.
Construction
All supports are made of zinc-coated carbon steel for corrosion resistance in accordance with Directive 2002/95/EC (RoHS), and are also available in stainless steel upon request. The retaining ring is made of black NBR rubber with a hardness of 85 Shore A.
| Nominal Size | A | B | C | Ø D | Ø D1 | Ø D2 | Ø D3 | E | F | G | H | I | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 175 | 90 | 11 | 140 | 120 | 90 | 10 | 3 | 40 | 96 | 140 | 1.5 |
| 150 | 260 | 232 | 120 | 17 | 200 | 170 | 150 | 15 | 3 | 70 | 125 | 200 | 3.6 |
