Description
Hose Connection Suitable for Countries
The hose connection included in the kit is suitable for use in the following countries: France, Algeria, Saudi Arabia, Bahrain, Bulgaria, United Arab Emirates, Greece, Guinea, Hungary, Iraq, Israel, Jordan, Kuwait, Libya, Morocco, Mauritania, Mexico, Mozambique, Nigeria, Oman, Romania.

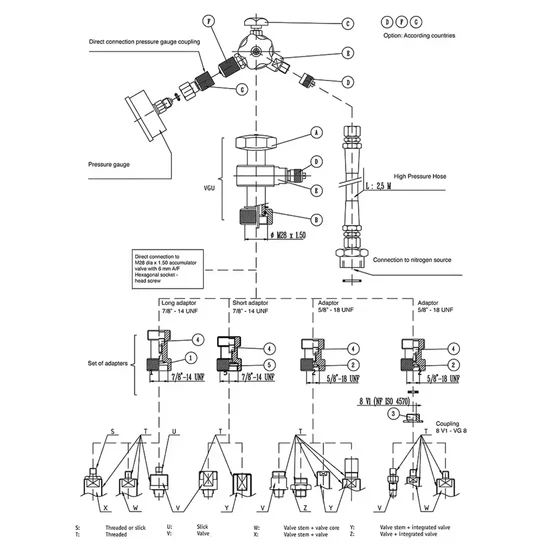

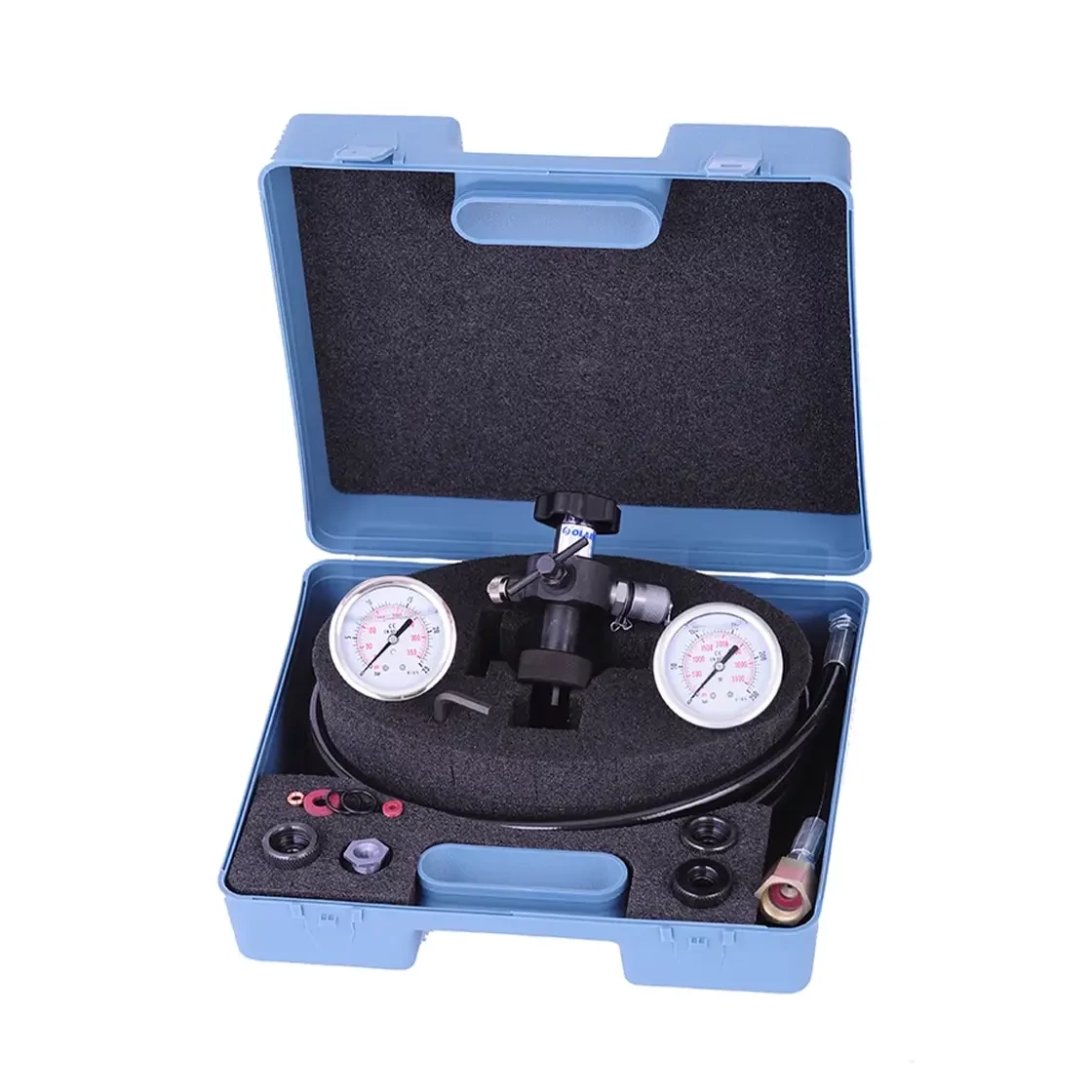

Standard VGU Kit Contents
- VGU universal tester and pressure regulator (end M28 x 1.50).
- Pressure gauge set from 0 to 25 bar.
- Pressure gauge set from 0 to 250 bar.
- Connector adapters for inflation valves (7/8’’ – 5/8’’ – 8V1 - M28 x 1.50-1/4" BSP).
- High-pressure hose, 2.5 meters long, for connection to a nitrogen source.
- 6 mm hex screwdriver key.
- Set of spare seals.
- User manual in French and English.
Optional Items Available
- Pressure gauge sets with different scale ranges: 63 mm glycerin bath with rear G1/4’’ cylindrical mounting, direct gear for Minimess connection. Scale ranges: 0-10, 0-60, 0-100, 0-400, accuracy class 1.6%.
- High-pressure hoses in different lengths, with adapters for nitrogen bottles of various countries (country specification required), with female swivel connectors G1/4’’ at both ends for connection to the inflation port.
Maximum Operating Pressure: Limited by the maximum operating pressure of the installed hydraulic system, and in all cases not exceeding 400 bar.
