Temperature gauge - Fig.20 0-120°C

Manufacturer article number:	Fig.20 0-120°C
Model:	DHOFIG20120
Availability:	1 pcs in stock
Manufacturer:	--

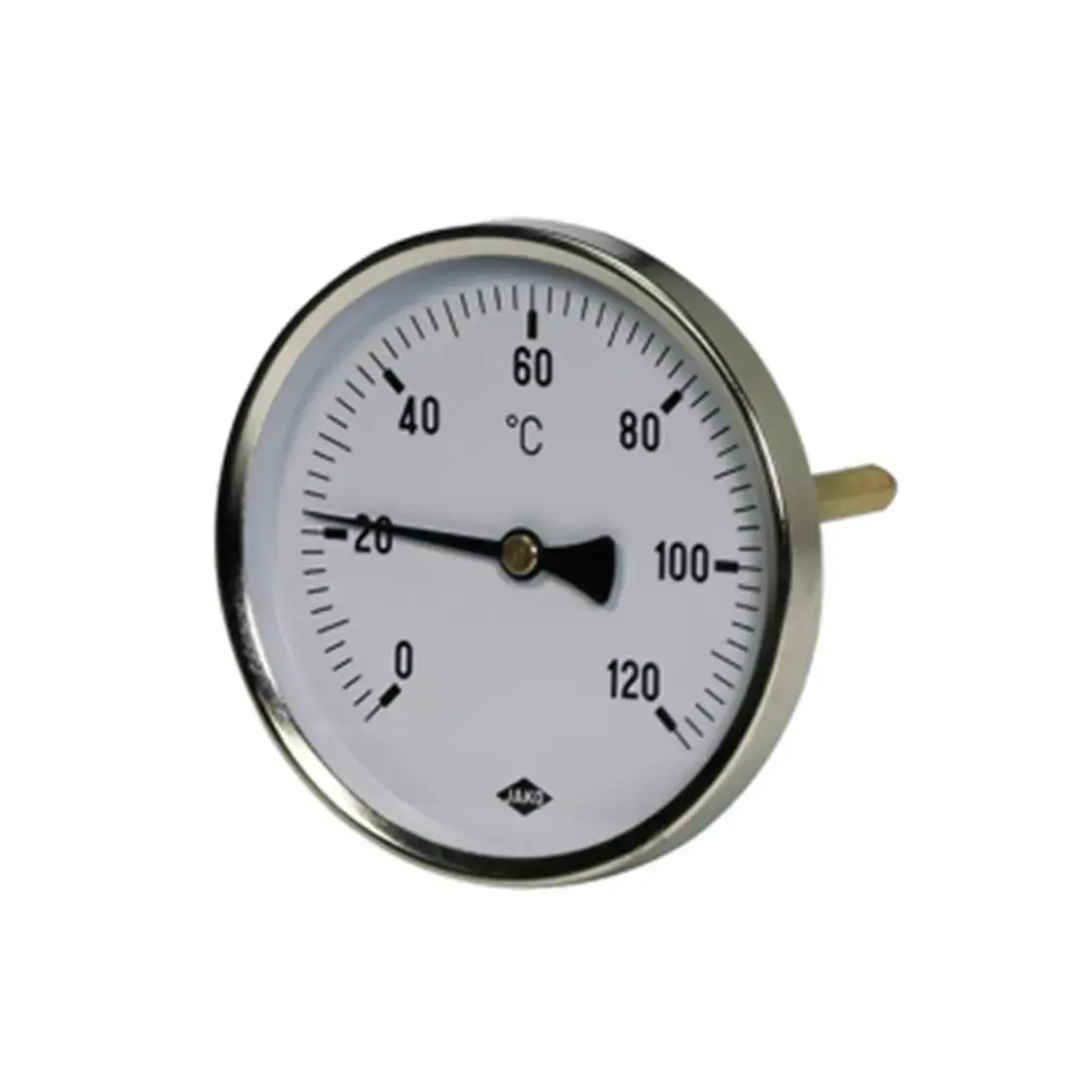

Fig. 20 Universal thermometer with measuring stem and central rear mounting Applications and Features: Cost-effective temperature measurement solution for closed-loop water systems, sanitary, heating, and boiler systems. Robust and unbreakable sheet steel housing, scratch-resistant inspection window, standard measuring stem, and temperature protection tube made of copper. Suitable for use in protected indoor areas (IP42). Easier installation, as the housing can be rotated into an optimal reading position even after mounting with the fixed measuring stem. Standard measurement ranges according to EN 13190: from -40°C to +600°C. Standard measurement accuracy: Class 2. Standard measuring stem made of copper, ø 7 mm; optionally ø 6 mm.

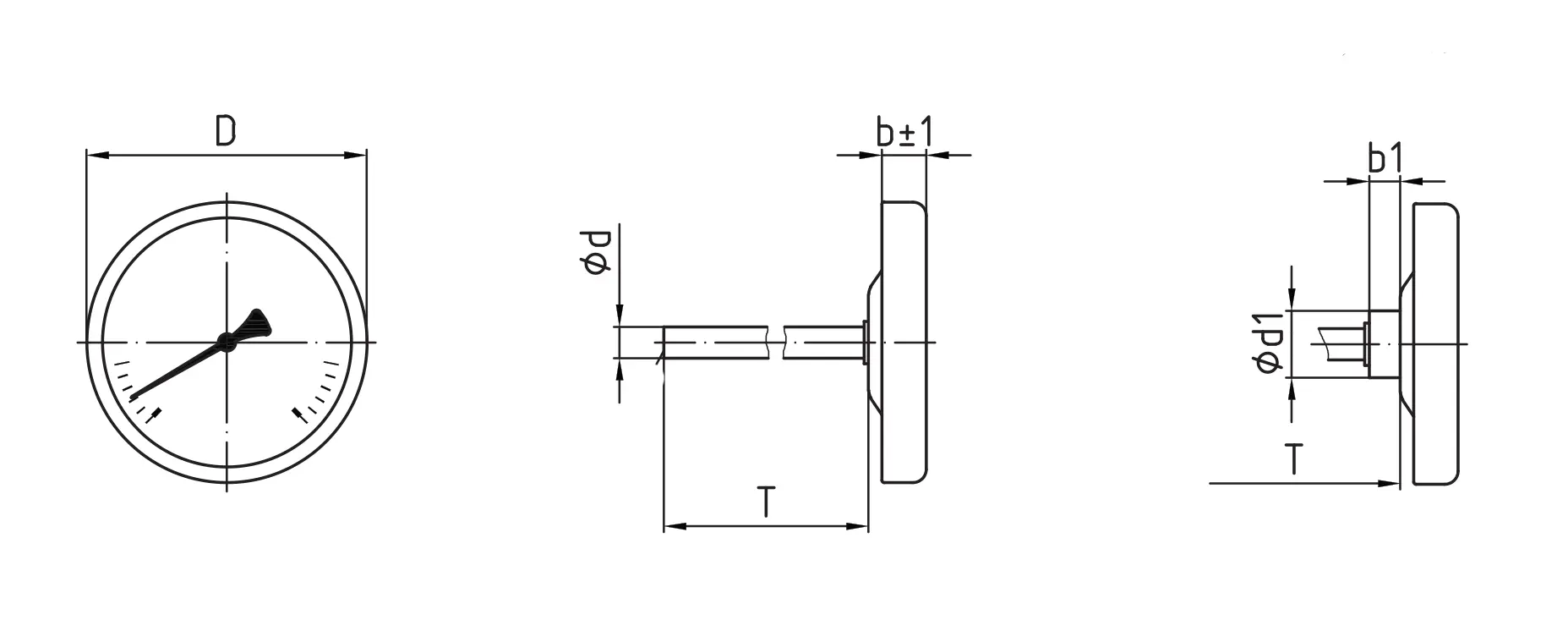

Technical specifications:

Product design standard: based on the EN 13190 standard.
Measurement principle: The temperature-dependent longitudinal expansion of metals.
Scale ranges: from -40°C to +600°C, according to the EN 13190 standard.
Measurement accuracy: Class 2, according to the EN 13190 standard.
Measurement range extension: min. 60°C, e.g., from -20° to +40°C.
Nominal size: NS 63; NS 80; NS 100; NS 160.
Connection position: centered, rear-facing.
Case type: Case with a pull-up flange.
Case material: Base: blue zinc-coated sheet steel; Pull-up flange: zinc-coated, polished sheet steel.
Case protection type: IP42, according to EN 60529/IEC 529 standard.
Pointer correction setting: Brass screw at the end of the immersion tube.
Scale division: according to the EN 13190 standard.
Operating limits: max. 6 bar on smooth measuring shaft, without temperature protection tube.
Standard immersion tube: Type 01 - MS, immersion tube and standard temperature protection tube made of copper.
Minimum immersion depth: 40mm.
